Digital Signal Processors (DSPs)

DBX Professional ZonePRO 640m Digital Zone Processor 6 Inputs 4 Outputs

DBX Professional

AED 3,623 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: DBX640MV-EU Categories: , , Brand:

The dbx ZonePRO 640m is a digital zone processor featuring six inputs, including four balanced mic/line switchable inputs and two unbalanced RCA input pairs, with configurable insert processing and hardware-controlled microphone gain. Its pre-configured architecture includes input processing, a central matrix, and output processing, with AutoWarmth maintaining full frequency bandwidth on each output zone.

Description

dbx ZonePRO 640m Digital Zone Processor

The dbx ZonePRO 640m is a versatile and advanced digital zone processor designed to provide exceptional audio management with its fixed I/O, preconfigured architecture, and configurable insert processing. It also features the ability to duplicate audio to an additional ZonePRO device via a link bus, ensuring a scalable and efficient audio solution for various environments.

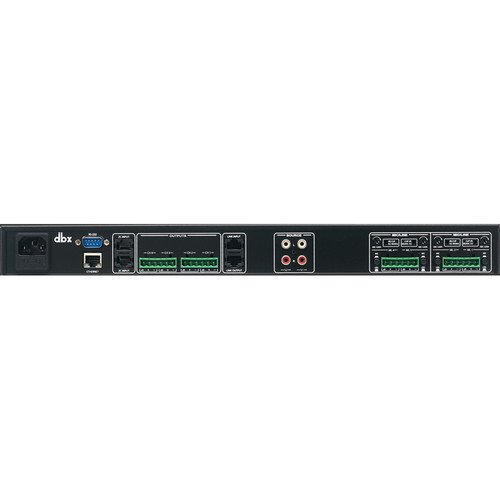

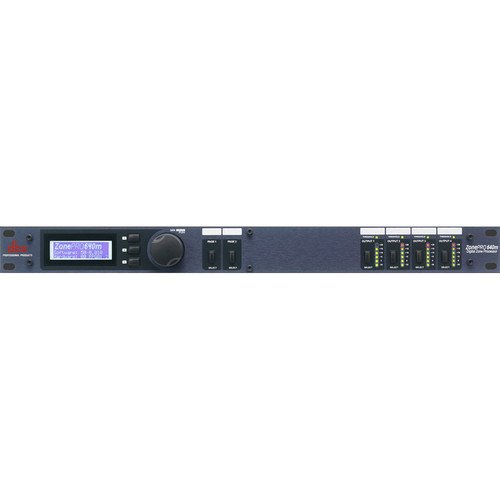

With six inputs – including four balanced mic/line switchable terminal block inputs and two unbalanced, mono-summed RCA input pairs – and comprehensive input processing capabilities, the ZonePRO 640m ensures pristine sound quality. The architecture features a central matrix, multiple insert positions, and output processing, including AutoWarmth technology to maintain full frequency bandwidth at lower signal levels. The front panel is designed with intuitive controls, a backlit LCD for easy navigation, and comprehensive signal metering.

Key Features

  • Six inputs and four outputs for versatile connectivity
  • Four balanced mic/line inputs with selectable settings
  • Two mono-summed RCA input pairs for additional sources
  • Comprehensive input and output processing capabilities
  • AutoWarmth technology for consistent audio quality
  • RS-232 and Ethernet control compatibility for third-party integrations
  • Wizard-driven configuration for user-friendly setup
  • Optional wall-controllers for simplified volume and source control

Specifications

Indicators 4 Independent Six-Segment Lightpipe Output Meters (-30 to +20 dBu)
LCD Display Provides information on source selection, zone volume, and muting
Inputs 6 (4 Mic/Line Switchable, 2 Unbalanced RCA pairs)
Input Type Electronically Balanced/ RF-Filtered
Max Input +20 dBu (Mic/Line), +12 dBu (RCA)
Mic Gain Range 30 to 60 dB
Outputs 4 Total (Electronically Balanced, RF Filtered)
Output Connectors Euroblock
Output Impedance 120 Ohms Balanced, 60 Ohms Unbalanced
Max Output +20 dBu
Sample Rate 48 kHz
Dynamic Range 114 dB A-Weighted (Digital Output)
THD+N 0.003% at +4 dBu, 1 kHz
Frequency Response 20 Hz to 20 kHz, ±0.5 dB
Power 120 VAC, 60 Hz, 29 W
Dimensions 19 x 7.8 x 1.8″ / 48.3 x 19.7 x 4.5 cm
Weight 6.1 lb / 2.7 kg
Certifications UL 600065, IEC 60065, EN 55013, E60065

Packaging Information

Package Weight 8.23 lb
Box Dimensions 22.1 x 11.4 x 3.5 inches
