The 223s by dbx is a dual channel, stereo 2-way or mono 3-way crossover designed to optimize PA system performance by filtering input signals into specific frequency ranges. It features Linkwitz-Riley 24dB per octave filters, independent output gain controls, output phase inversion, a 40Hz low cut filter, and an optional mono summing subwoofer output. Built with high-quality components, the 223s ensures precise control, superior sound clarity, and rugged reliability with solid “click” controls and XLR inputs and outputs.
The dbx® 234s Crossover is a dual channel audio device designed to optimize speaker performance by using precision filters to separate audio signals and direct specific frequencies to the appropriate loudspeaker drivers. It features Linkwitz-Riley 24dB per octave filters, independent output gain controls, output phase inversion, a 40 Hz low cut filter, and an optional mono summing for subwoofer output. The 234s ensures ultra low-noise operation and rugged reliability with high-quality 1/4″ TRS inputs and outputs.

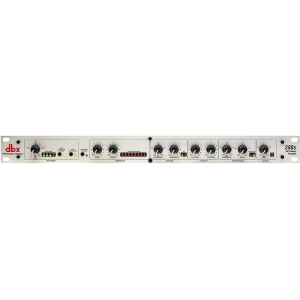

The dbx 286s Channel Strip Processor features a versatile mic preamp with balanced XLR and 1/4″ TRS inputs, an OverEasy® compressor, a frequency tunable De-Esser, an Enhancer to adjust HF and LF details, and an Expander/Gate for noise control. Ideal for both professional and home studios, it offers metering LEDs, +48V phantom power, and an 80Hz high-pass filter, ensuring high-quality vocal and instrument processing with flexible signal routing through its Insert jack.

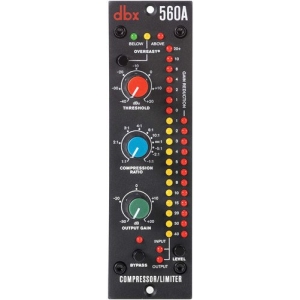

The dbx 560A Compressor/Limiter, designed for 500 series lunchbox chassis, offers VCA-based compression with switch-selectable OverEasy and Hard Knee curves, identical to the dbx 160A. This unit features broad threshold, ratio, and output controls, along with true RMS level detection for natural dynamic processing. Ideal for enhancing drums, bass, and vocals, it provides flexibility from subtle compression to brickwall limiting. Suitable for both studio recording and live sound, it effectively manages fluctuating levels and prevents overload distortion.
The ZonePRO 641/641 are designed for superior sonic performance and flexibility, featuring Euroblock and RCA connectors for balanced signals and consumer equipment. They offer comprehensive input processing tools including gain control, EQ, selectable paging microphone processing, and advanced functions like Auto Gain Control and Feedback Suppression. The routing module provides Primary Source Selection and Source Ducking. Outputs include processing tools such as AutoWarmth®, EQ, bandpass filters, and limiting. These tools ensure system optimization and scalability, making them ideal for commercial applications.

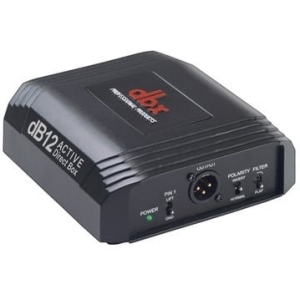

The dbx dB10 Passive and dB12 Active direct injection boxes stand out with robust construction and exceptional audio performance. They feature custom mu-metal-shielded audio transformers, Neutrik® connectors, and low-noise circuitry that maintain the true characteristics of your signal. Both models include a pad switch for instrument, line, and speaker level signals, as well as a polarity invert switch for precise phase control.

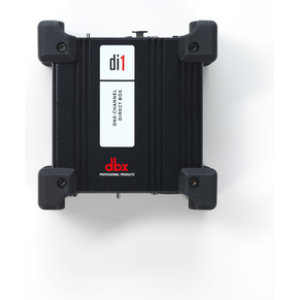

The dbx Di1 is a compact, high-quality active direct injection box designed for both studio and live use. It delivers balanced audio signals free from noise, making it perfect for connecting electric guitars, bass amplifiers, keyboards, and other instruments directly to a console mixer without a microphone. Engineered for durability and reliability, the Di1 is equipped with all the essential features for a versatile and dependable DI unit.
The AFS2 Dual-Channel Advanced Feedback Suppression Processor from DBX effectively protects audio systems from feedback while preserving sound integrity. It features application-specific filter types and 24 narrow-band notch filters, which eliminate feedback without compromising frequency response. The front panel includes a wizard function for easy setup, an LCD display, a segment LED for input monitoring, notch filter indicators, and bypass buttons. The rear panel accommodates XLR and 1/4″ switchable inputs/outputs and a USB port for firmware updates. It comes with an IEC power cable.

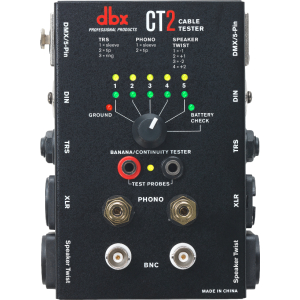

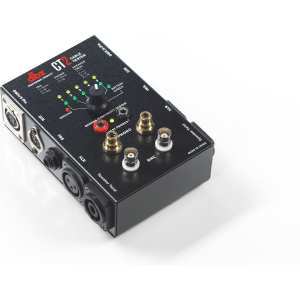

The dbx CT2 cable testing unit simplifies the process of evaluating various audio cables, including Speaker Twist, XLR, Phono, BNC, DIN, TRS, TS, DMX, and Banana. It supports testing cables with different connectors at each end, using LED indicators and a rotary dial to quickly identify functional and faulty cables.

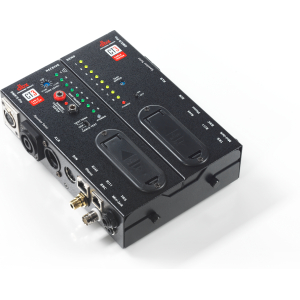

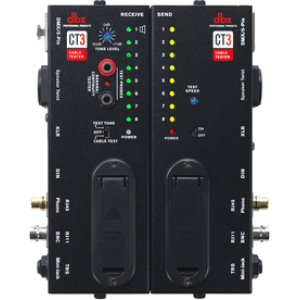

The dbx CT3 is an advanced cable testing unit designed for evaluating a wide range of cables easily. It includes common connectors like RJ45, RJ11, MIDI, Speaker Twist, XLR, RCA Phono, BNC, DIN, TRS, TS, DMX, and Banana. The unit can be divided into a SENDER and RECEIVER for testing preinstalled and long cables.

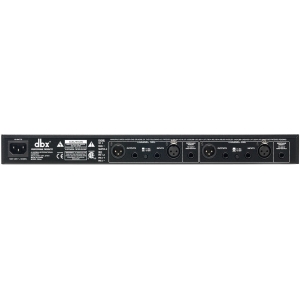

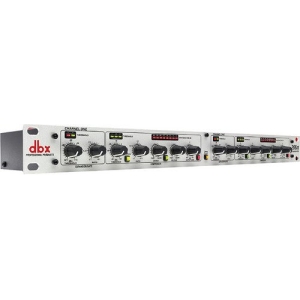

The dbx® 266xs Compressor/Gate, featuring patented Overeasy® compression and AutoDynamic™ controls, offers smooth performance and easy dynamic control for live and studio settings. It supports stereo and dual-mono modes, true RMS power summing, and includes XLR and 1/4″ TRS inputs/outputs. Gain reduction metering and backlit switches enhance user feedback for professional-quality sound shaping.
The dbx 266xs is a dual-channel compressor/gate designed for both live sound rigs and studio setups, offering stereo and dual mono modes. It smooths uneven levels, enhances guitar sustain, and boosts drum and vocal presence. The unit features Overeasy compression for musical performance, AutoDynamic attack and release controls, true RMS power summing, quality I/O connectors, and visual feedback through gain reduction metering and backlit switches.
The dbx® 223xs Crossover enhances your speaker performance with precision filters that allocate the correct frequencies to each loudspeaker driver, reducing distortion and optimizing amplifier efficiency. This dual channel crossover features Linkwitz-Riley 24dB per octave filters, independent output gain controls, output phase inversion, a 40 Hz low cut filter, and optional subwoofer output summing, all housed in a rugged design with high-quality XLR inputs and outputs.

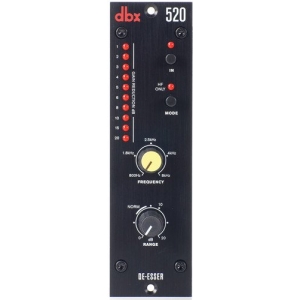

The dbx 520 De-Esser, fitting into a 500 series lunchbox chassis, is engineered to reduce excessive sibilance in vocals and high-frequency content. It operates by analyzing the level difference between high frequency and full-bandwidth signals, allowing up to 60 dB of de-essing. With an 800 to 8,000 Hz frequency control, gain reduction metering, a de-essing range of 0 to 20 dB, and an In/Out switch for A/B comparisons, this unit also features an HF mode switch for tailored processing.

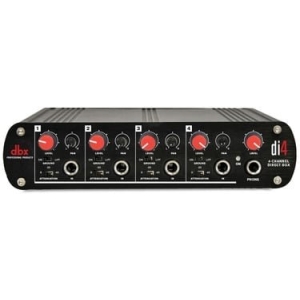

The 4-channel Di4 is a versatile device that converts unbalanced signals to balanced outputs for mixers, PAs, and recording consoles. It also serves as a multi-channel stereo line mixer, allowing connection of multiple keyboards and samplers with independent XLR outputs for stage and front-of-house needs. Additionally, the Di4 features a headphone output.
