DBX PMC16 Personal Monitor Controller

DBX Professional

AED 3395 inc VAT.

The PMC16 is a 16-channel personal monitor controller designed for precise audio mixing with dbx TR1616 or any BLU link compatible device. It supports monitoring via headphones, in-ear monitors, powered monitors, or traditional wedge monitors. Users can daisy chain multiple PMC16s through CAT5e cable, enabling each to receive 16 channels of high-resolution digital audio for personalized mixes. The PMC16 features a 16-channel mixer with level, panning, effect send, muting, soloing controls, onboard Lexicon® reverb, stereo width control, EQ settings, and dbx limiting. Its Setup Wizard, channel grouping, and 16 preset locations enhance usability.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: DBXPMCM-04 Categories: , Brand:

Description

PMC16 Personal Monitor Controller

The PMC16 is a versatile 16 channel personal monitor controller, perfect for creating custom mixes from 16 channels of audio. Compatible with the dbx TR1616 and other BLU link devices, the PMC16 is designed to work efficiently with headphones, in-ear monitors, powered monitors, or traditional wedge monitors. By daisy chaining multiple PMC16 units using CAT5e cable, each user can receive high-resolution digital audio and tailor their own mix to their specific monitoring needs.

This robust device offers full control over levels, panning, effect send levels, muting, and soloing via its 16 channel mixer section. It includes onboard Lexicon® reverb for a professional finish. The output section features stereo width control, wedge monitor compensation EQ, master high and low EQ, master level control, and dbx limiting. Users can benefit from the Setup Wizard for simple configuration, full 16 channel level metering, channel grouping, and 16 preset locations for quick recall of configurations and mixes. Its intuitive interface ensures that you can finely tune your mix exactly as you desire, in real time.

Key Features

Specification Details
Channels 16
Control Features Level, Pan, Mute, Solo, Reverb Send
Presets 16 Locations for Configuration Recall
Display LCD with 16 Channel Metering
Reverb Built-In Lexicon® Reverb
Limiting dbx PeakStopPlus™ Limiting
EQ Global High & Low
Master Control Global Master Level & Stereo Width
Audio Bus BLU Link High Bandwidth, Fault Tolerant

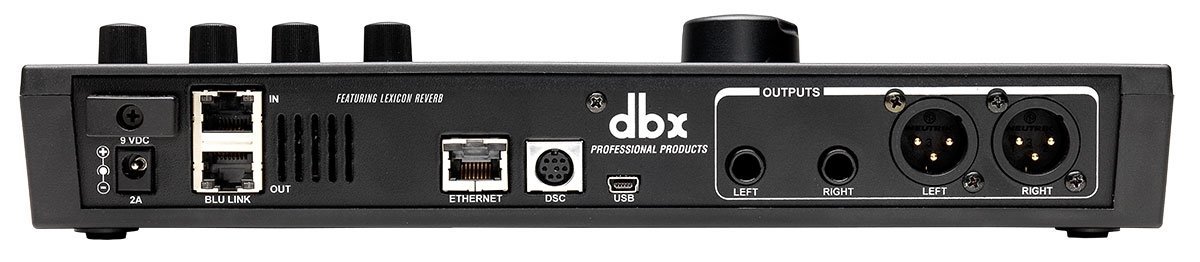

Outputs XLR & 1/4” Stereo or Mono, 1/8” & 1/4” Headphone
Setup Wizard Includes
Sampling Rates 48 kHz & 96 kHz
Channel Capabilities Linking, Grouping, Multi-Select
BLU Link Ring Support Up to 60 PMC16s
Mount Built-In Sturdy Mic Stand Mount
Firmware Updates USB Port
