Digital Signal Processors (DSPs)

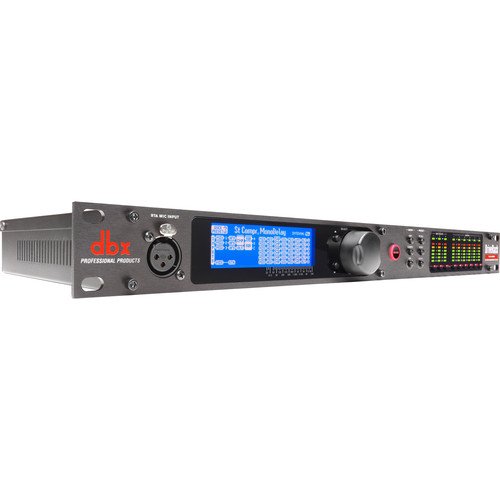

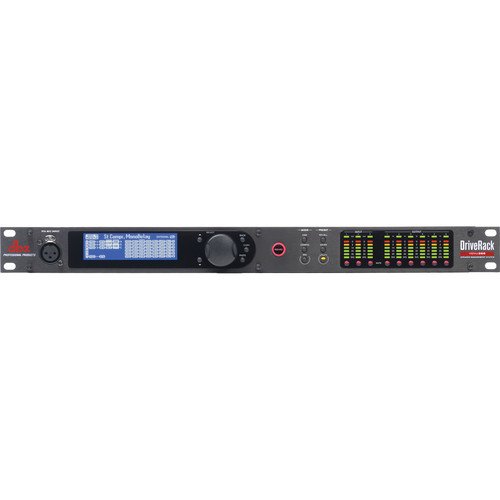

DBX DriveRack VENU360 Loudspeaker Management System

DBX Professional

AED 5695 inc VAT.

The DriveRack VENU360 from dbx is a loudspeaker-management processor designed to protect and optimize various loudspeaker systems in diverse settings such as clubs, outdoor music events, and houses of worship. This device connects between the mixer and amplifiers/powered speakers and offers feedback elimination, automatic speaker level and room equalization, crossover-frequency setting, dbx compression/limiting, and driver alignment delay. It features a 5 x 6 routing/mixing matrix with 4 AES signals and 1 analog signal, and a 3 x 6 signal processing chain. The unit employs 24-bit A/D and D/A converters with dbx Type IV conversion to prevent digital clipping and utilizes 32-bit floating point, 48/96 kHz internal processing for high-quality audio with significant headroom and dynamic range.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: DBXVENU360-V-EU Categories: , , Brand:

Description

dbx DriveRack VENU360 Loudspeaker Management Processor

The DriveRack VENU360 by dbx is a comprehensive loudspeaker management processor designed to enhance and safeguard sound systems in various settings, including nightclubs, outdoor music events, and houses of worship. It is an invaluable tool for fine-tuning sound performance, ensuring professional audio quality.

Connecting the VENU360 between your mixer and amplifiers or powered speakers allows you to leverage features such as feedback suppression, automatic speaker leveling, room equalization, and much more. The processor’s versatile capabilities make it an essential component for sound engineers aiming for precision and control in their audio setups.

Key Features

  • 5 x 6 routing/mixing matrix with a 3 x 6 signal processing chain for versatile configuration.
  • 24-bit A/D and D/A converters with dbx Type IV conversion to prevent digital clipping.
  • Setup Wizard and Level Assist Wizard for simplified installation and balancing.
  • AutoEQ Wizard for rapid room equalization and feedback suppression capabilities.
  • Multi-mono, stereo, LCR, and aux-fed sub input configurations for flexible setups.
  • 31-Band graphic EQ or 12-band parametric EQ options for precise speaker tuning.
  • Driver alignment and fill delay processing with up to 3000 ms delay time.
  • Network control via DriveRack VENU360 control application for various platforms.

Specifications

Specification Details
Inputs 3 x analog line inputs, 2 x AES digital inputs, 1 x RTA mic input
Analog Outputs 6 x line outputs
A/D Conversion 24-bit with dbx Type IV conversion system, Dynamic Range: 117 dB A-weighted
D/A Conversion 24-bit, Dynamic Range: 116 dB A-weighted
Internal Processing 32-bit floating point, Sample Rates: 48/96 kHz
Frequency Response 20 Hz – 20 kHz, +0 /- 0.5 dB
Operating Voltage 100-240 VAC, 50/60 Hz
Power Consumption 30 W
Dimensions 1.75 x 19.00 x 8.00″ / 4.45 x 48.26 x 20.32 cm
Weight 5.48 lb / 2.49 kg
Package Weight 7.8 lb
Box Dimensions 22.2 x 11.4 x 3.7″
