Description

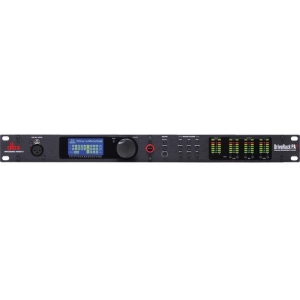

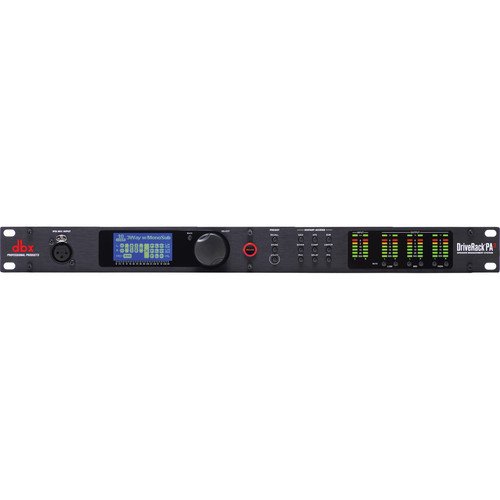

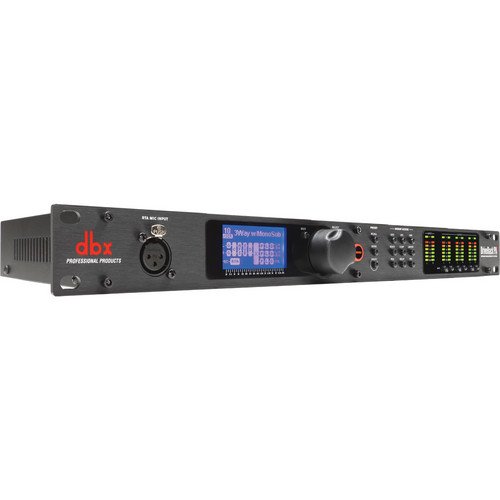

dbx DriveRack PA2 Complete Loudspeaker Management System
The dbx DriveRack PA2 is your all-in-one solution for controlling and optimizing your PA system. With the ability to manage your loudspeakers via Mac, PC, or mobile devices, the DriveRack PA2 offers an unmatched suite of features designed to provide outstanding sound quality and reliability. Whether you are using a full-range, 2-way, or 3-way system, this unit ensures professional-grade performance for any live sound application.
Key Features
| Specification |
Details |
| AutoEQ |
Automatically adjusts speaker levels and room EQ using optional RTA Mic |
| AFS Feedback Elimination |
Suppresses feedback while preserving original sound quality |
| Wizard Setup Functions |
Guides through setup for optimal configuration, including level balancing and speaker tunings |
| Input Processing |
Includes dbx Compression, Advanced Feedback Suppression, Graphic EQ, 8-band Parametric EQ, Subharmonic Synthesis |
| Output Processing |
Features crossover for various system configurations, 8-band parametric EQs, dbx Limiting, and driver alignment delays |
Specifications
| Specification |
Details |

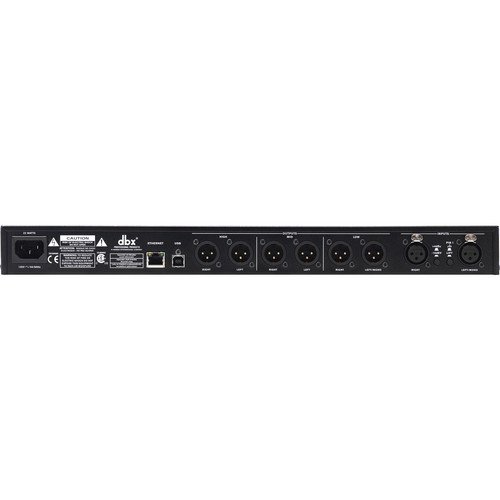

| Analog Inputs |
2 x Line Inputs, 1 x RTA Mic Input, Female XLR, balanced |
| Analog Outputs |
6 x Line Outputs, Male XLR, electronically balanced |
| A/D and D/A Conversion |
24-bit, 112/110 dB dynamic range (A-Weighted/Unweighted) |
| Internal Processing |
32-Bit Floating Point |
| Sample Rate |
48 kHz |
| Dynamic Range |
110 dB A-Weighted, 107 dB Unweighted |
| THD + N |
0.003% typical at +4 dBu, 1 kHz |
| Frequency Response |
20 Hz to 20 kHz (+0/-0.5 dB) |
| Crosstalk |
Input to Output: < -100 dB |
| Latency |
Input to Output: 1.847 ms |
| Power |
100 to 120 VAC, 50/60 Hz, 22 W |
| Dimensions (HxWxD) |
1.8 x 5.8 x 19″ / 4.4 x 14.6 x 48.3 cm |
| Weight |
5.3 lb / 2.4 kg |
Packaging Info
| Specification |
Details |
| Package Weight |
6.8 lb |
| Box Dimensions (LxWxH) |
22.3 x 11.5 x 3.8″ |
