Digital Signal Processors (DSPs)

DBX DriveRack 260 Loudspeaker Management System

DBX Professional

AED 4561 inc VAT.

The dbx DriveRack 260 Loudspeaker Management System provides control over equalization, dynamics, and routing for live or contractor sound setups, featuring a 28-band graphic EQ, 9-band parametric EQ, built-in compressor, PeakStopPlus limiters, pink noise generator, real time analyzer, alignment time delay, and phantom powered mic input, with user-friendly customization via the Wizard setup and DriveWare GUI.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: DBX260V-EU Categories: , , Brand:

Description

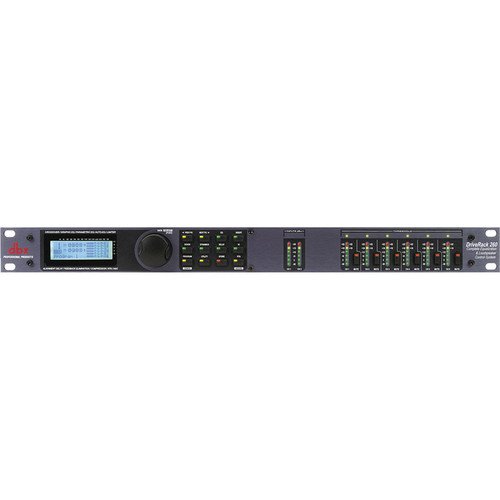

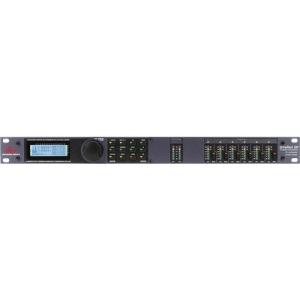

dbx DriveRack 260 Loudspeaker Management System

The dbx DriveRack 260 Loudspeaker Management System is designed to provide comprehensive control over equalization, dynamics, and routing for live or contractor sound applications. It includes a versatile 28-band graphic and 9-band parametric EQ, a built-in compressor for dynamic control, and PeakStopPlus limiters for component protection. Utilize the internal pink noise generator and real-time analyzer to understand room acoustics. Additionally, it features a flexible alignment time delay and a 15V phantom powered mic input for enhanced room management.

This powerful control processor is equipped with custom templates for specific amplifier and speaker combinations and allows for easy user adjustments using a Wizard setup system and a complete DriveWare GUI control.

Features

  • Compression and limiting
  • Graphic and parametric equalization
  • Full bandpass, crossover, and routing configurations
  • Feedback elimination
  • Built-in subharmonic synthesizer
  • Pink noise generator and full-time RTA
  • 2.7 seconds of alignment and zone delay
  • Auto-EQ function
  • Auto-gain control

Specifications

Frequency Response 20 Hz to 20 kHz
Dynamic Range 110 dB unweighted
>107 dB weighted

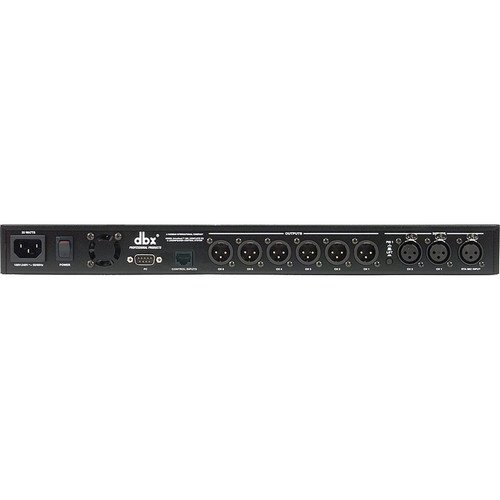

Input Connections 2 x XLR female
1 x XLR RTA Mic
Output Connections 6 x XLR male
Input Impedance >40 kOhms
Output Impedance 120 Ohms
Maximum Input Level 34 dBu with input jumpers in +30 position
Maximum Output Level 22 dBu
Sample Rate 48 kHz
RTA Mic Phantom Voltage 15 V
Crosstalk (Main Outputs) >100 dB
THD & Noise 0.002% typical at +4 dBu, 1 kHz, 0 dB input gain

Packaging Info

Package Weight 8.75 lb
Box Dimensions (LxWxH) 22.2 x 11.5 x 4.3″
