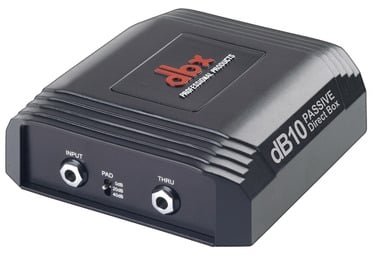

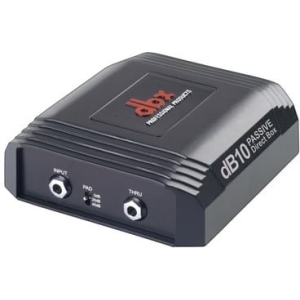

DBX DB10 Passive Direct Box

dbx dB10 Passive and dB12 Active Direct Boxes

When it comes to audio integrity and performance, dbx sets the standard with their dB10 Passive and dB12 Active direct boxes. Engineered to perfection, these direct boxes boast bullet-proof construction and unparalleled audio performance. The dbx commitment to quality is evident in every detail, ensuring that your sound remains pure and unaltered.

The custom mu-metal-shielded audio transformers and high-quality Neutrik® connectors work in tandem with low-noise circuitry to preserve the true characteristics of your signal source. Adaptable for various signal levels, both models provide a pad switch that supports instrument, line, and speaker levels. The polarity invert switch offers additional control over phase relationships between direct and mic’d sounds.

Ground loops causing interference? The ground lift switch addresses potential hums and buzzes effectively. The robust cast metal chassis combined with custom-wound transformers guarantees a clean, interference-free signal. Additionally, the solid, stable base prevents the box from moving during performances, while the unique contoured underside allows for secure stacking of multiple units.

Key Features

• Premium Performance
• Rugged Design
• Stackable Chassis with Durable Rubber Foot
• Gold-plated Neutrik® XLR Connector
• Premium Chrome Toggle Switches
• Hi-Z 1/4″ Input Jack
• Parallel 1/4″ Thru Jack
• Transformer Isolated
• Premium Shielded Custom dbx Transformer
• Balanced XLR Lo-Z Output
• 3-Way 0/20/40 dB Pad Switch
• Flat/High-Cut Filter Switch
• Output Polarity Invert Switch
• Ground Lift Switch

Technical Specifications
