Digital Signal Processors (DSPs)

DBX AFS2 Dual-Channel Feedback Suppression Processor

DBX Professional

AED 2199.87 inc VAT.

The AFS2 Dual-Channel Advanced Feedback Suppression Processor from DBX effectively protects audio systems from feedback while preserving sound integrity. It features application-specific filter types and 24 narrow-band notch filters, which eliminate feedback without compromising frequency response. The front panel includes a wizard function for easy setup, an LCD display, a segment LED for input monitoring, notch filter indicators, and bypass buttons. The rear panel accommodates XLR and 1/4″ switchable inputs/outputs and a USB port for firmware updates. It comes with an IEC power cable.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: DBXAFS2-V-EU Categories: , , Brand:

Description

The AFS2 Dual-Channel Advanced Feedback Suppression Processor from DBX protects your ears and audio equipment from annoying and potentially damaging audio feedback without altering your sound. The AFS2 features application-specific filter types for speech, music low, music medium, and music high. The 24 fixed or live narrow-band notch filters are capable of removing frequencies at 1/80 of an octave, ensuring an optimal frequency response without the possibility of feedback.

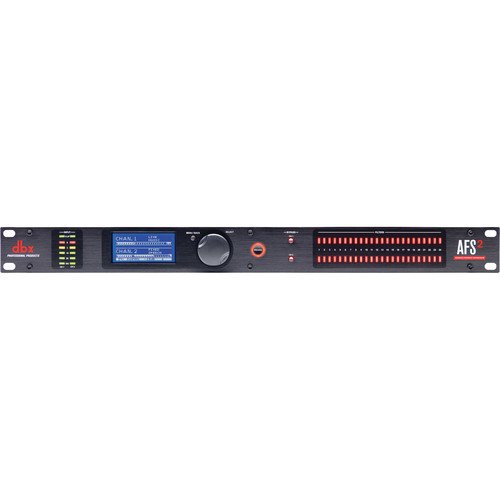

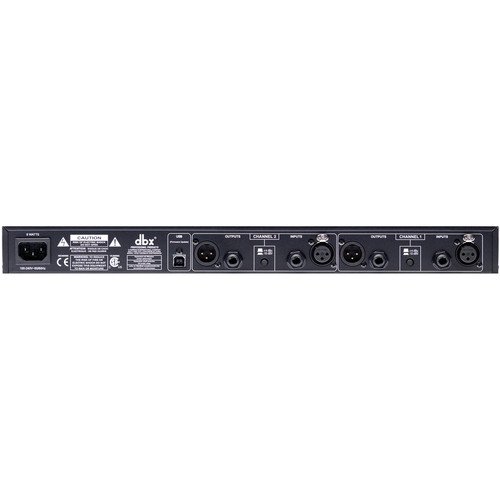

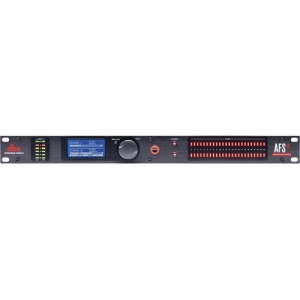

The front panel features the wizard function to take the guesswork out of setting up any room by incorporating an advanced feedback suppression module and providing a full LCD display for system settings and menus. Additionally, the AFS2 offers a five-segment LED for accurately monitoring input levels for each channel, while the notch filter indicator allows you to monitor the number of filters applied. Dedicated bypass buttons are included to help isolate problem channels. The rear panel offers XLR and 1/4″ inputs and outputs, both switchable between +4 and -10 dB operations. A USB port has been provided for firmware updates. The AFS2 ships with a standard IEC power cable.

Key Features

Specification Details
Number of Channels 2
Inputs Connectors: Female XLR and 1/4″ TRS
Type: Electronically balanced and unbalanced, RF filtered
Impedance: Balanced 50 kohm, unbalanced 25 kohm
Max Line Level: +20 dBu
Input CMRR >40 dB, typically >55dB @ 1 kHz
Outputs Connectors: Male XLR and 1/4″ TRS
Type: Electronically balanced and unbalanced, RF filtered
Impedance: Balanced >120 ohms, unbalanced >60 ohms
Max Level: +20 dBu
A/D/A Converter A/D Converter: DBX type IV conversion system
A/D Dynamic Range: >113 dB A-weighted, >110 dB, unweighted, 22 kHz BW
Type IV Dynamic Range: >119 dB, A-weighted, 22 kHz BW; >117 dB, unweighted, 22 kHz BW
A/D Conversion: 24-bit
Sample Rate: 48 kHz
D/A Dynamic Range: 112 dB A-weighted, 109 dB unweighted
D/A Conversion: 24-bit
Dynamic Range 109 dB A-weighted, 106 dB unweighted, 22 kHz BW
THD + Noise 0.003% typical at +4 dBu, 1 kHz
Frequency Response 20 Hz to 20 kHz, ±0.5dB
Crosstalk Interchannel Crosstalk: >80 dB typical
Crosstalk Input to Output: >80 dB
Power US: 100 to 120 VAC 60 Hz
EU: 220 to 240 VAC 50 Hz
9 W
Dimensions 1.8 x 5.8 x 19.0″ / 4.4 x 14.6 x 48.3 cm
Weight 4.5 lb / 2.0 kg

Packaging Info

Specification Details
Package Weight 6.25 lb
Box Dimensions (LxWxH) 22.1 x 12.3 x 3.6″
