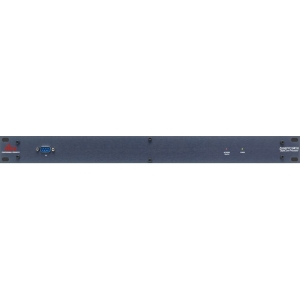

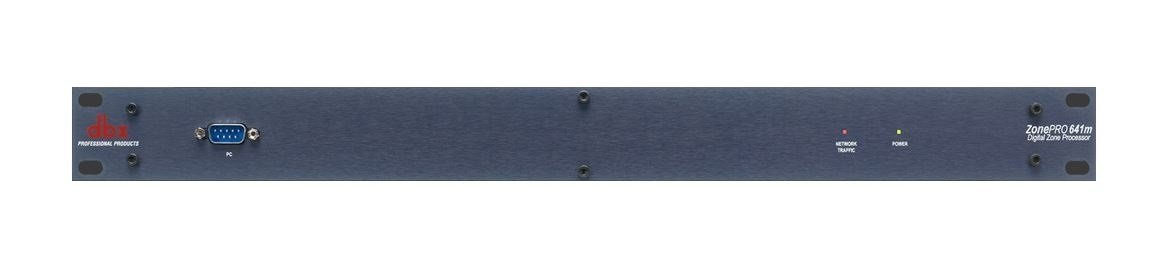

ZonePRO 641m

The ZonePRO 641m offers an advanced and flexible solution for managing audio channels with its fixed I/O, pre-configured architecture, and configurable insert processing. It supports the duplication of audio channels to enhance connectivity with other ZonePRO devices.

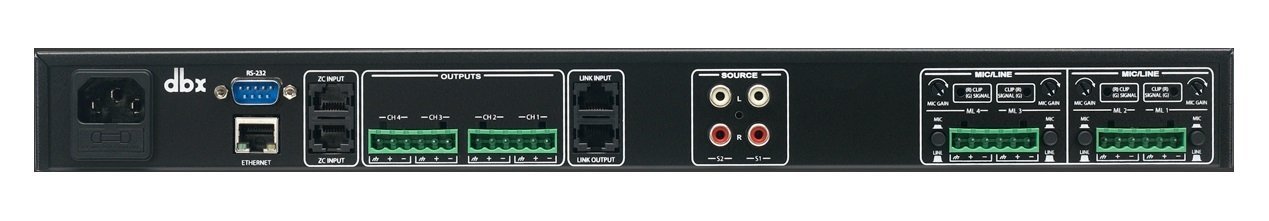

It features six inputs and four outputs, which include four balanced mic/line switchable terminal block inputs and two mono-summed pairs of unbalanced RCA inputs. The microphone gain can be adjusted per channel, providing added control over audio input levels.

The pre-configured architecture of the 641m includes input processing, a central matrix, and output processing, along with specific input and output insert positions. The AutoWarmth® function, designed to maintain full frequency bandwidth even at lower signal levels, is available on all output zones.

The link bus feature allows for the duplication of the initial six audio channels to another ZonePRO device, creating additional output zones when required.

The ZonePRO 641m can be managed via third party control systems using RS-232 or Ethernet, depending on your setup. The ZonePRO Designer software facilitates configuration, control, and monitoring of the 641m over Ethernet or RS-232, guided by an intuitive Configuration Wizard.

Key Features
