Digital Signal Processors (DSPs)

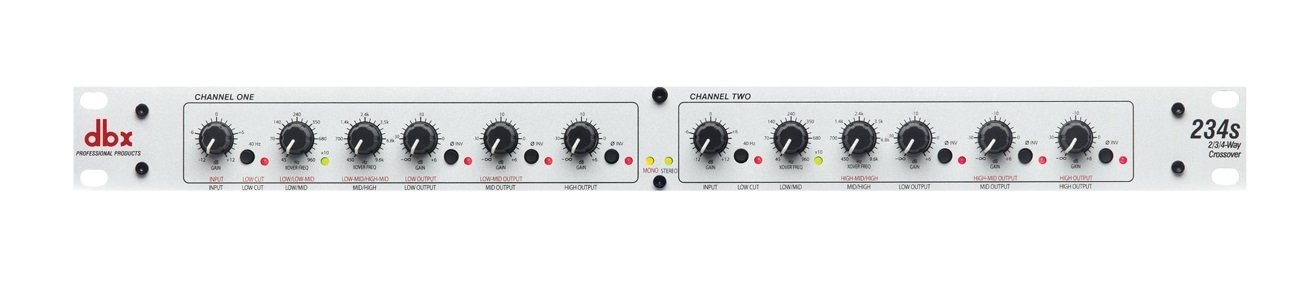

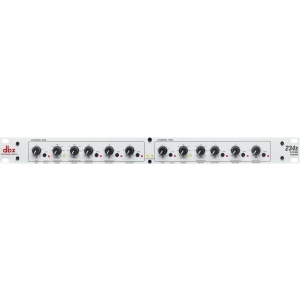

DBX 234s Stereo/Mono Crossover

DBX Professional

AED 1010 inc VAT.

The dbx® 234s Crossover is a dual channel audio device designed to optimize speaker performance by using precision filters to separate audio signals and direct specific frequencies to the appropriate loudspeaker drivers. It features Linkwitz-Riley 24dB per octave filters, independent output gain controls, output phase inversion, a 40 Hz low cut filter, and an optional mono summing for subwoofer output. The 234s ensures ultra low-noise operation and rugged reliability with high-quality 1/4″ TRS inputs and outputs.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: DBX234SV-EU Categories: , , Brand:

Description

dbx® 234s Crossover: Precision and Reliability in Audio Processing

Unleash the true potential of your speakers with the dbx® 234s Crossover, designed for exceptional audio performance and steadfast reliability. With over four decades of expertise in audio processing, dbx delivers a crossover that ensures pristine sound by directing precise frequency bands to corresponding loudspeaker drivers. This advanced design allows amplifiers to focus full power on usable signals, minimizing distortion and enhancing overall sound clarity.

Professional-Grade Features

The dbx 234s is a dual-channel crossover equipped with features anticipated by audio professionals. Implementing Linkwitz-Riley 24dB per octave filters, it provides independent output gain controls for effective level matching and phase inversion on outputs. It includes a 40 Hz low cut filter and an option for mono summing of low-frequency outputs, making it indispensable for high-fidelity PA systems.

Key Specifications

Specification Details

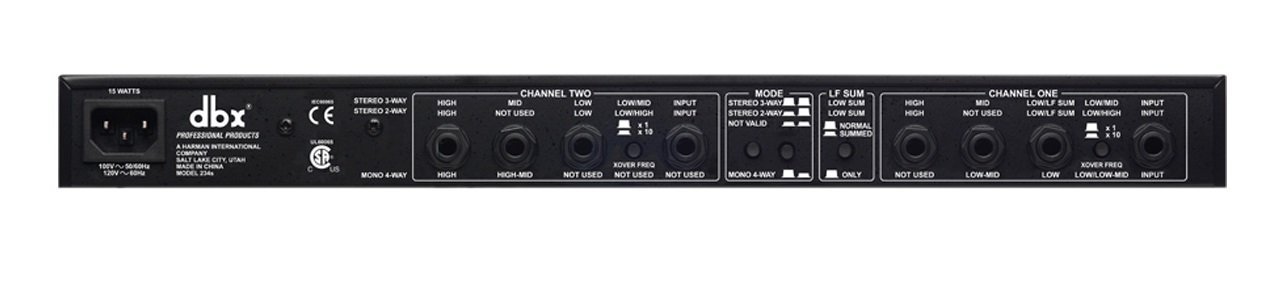

Input/Output TRS differentially balanced
Mode Switches Mono 4-way or stereo 2-way/3-way operation
Subwoofer Output Low frequency summed
Range Switch x10 on both channels
High Pass Filter 40Hz on both channels
Phase Reverse Available on all outputs
Output Control Individual level controls
Filter Type 24dB per octave Linkwitz-Riley
LED Indicators Stereo/Mono status
Warranty 2 years parts and labor by dbx®
Certifications CSA NRTL/C approved, CE compliant
