Audio Processor

معادل صوتي DBX 215s مزدوج بـ 15 نطاقًا رسوميًا

DBX Professional

AED 841 inc VAT.

متوفر في المخزن
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: DBX215SV-EU Categories: , , Brand:

إن 215s من dbx هو معادل رسومي ثنائي القناة بـ 15 نطاقًا وثلثي الأوكتاف، مصمم للتطبيقات الحية، التركيبات الصوتية، واستخدام الاستوديو. يتميز بمقابض منزلقة غير موصلة بطول 20 مم لتعديلات +/-6dB أو +/-12dB، وتحكم في كسب الإدخال العام بمقدار +/-12dB، وفلتر قطع منخفض قابل للتبديل بمقدار 12dB لكل أوكتاف عند 50Hz. مع استجابة التردد الموسعة، النطاق الديناميكي العالي، المكونات عالية الجودة، والتصميم الدقيق، يضمن 215s جودة صوت ممتازة ومتانة عالية.

Description

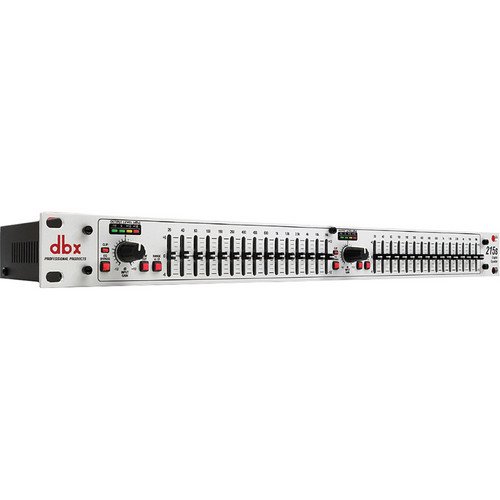

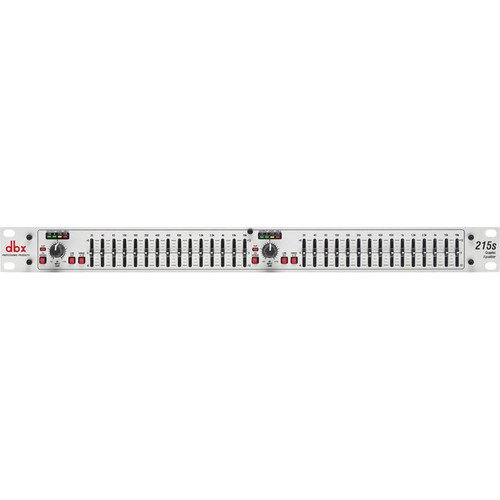

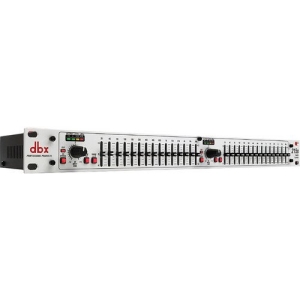

The 215s from dbx is a dual channel, 15-band, 2/3-octave graphic equalizer housed in a single space, rack mount chassis. The processor is equally suitable for live applications, audio installations, and for use in a studio.

The unit features 20mm non-conductive sliders that can be set to either +/-6dB or +/-12dB of boost or cut. A global control provides +/-12 dB of input gain. A 12dB per octave, 3dB down at 50Hz low-cut filter can also be switched in if required.

From its extended frequency response and excellent dynamic range, to the quality components and meticulous attention to detail, the 215s offers exceptional sound and rugged reliability.

Key Features

  • Dual channel, 15-band, 2/3-octave constant Q graphic EQ
  • Switchable boost/cut ranges of +/-6 or +/-12dB
  • 20mm non-conductive sliders
  • 12dB per octave, 3dB down at 50Hz low-cut filter
  • +/-12 dB input gain range
  • Front panel bypass switch
  • 4-segment LED ladders for monitoring output levels

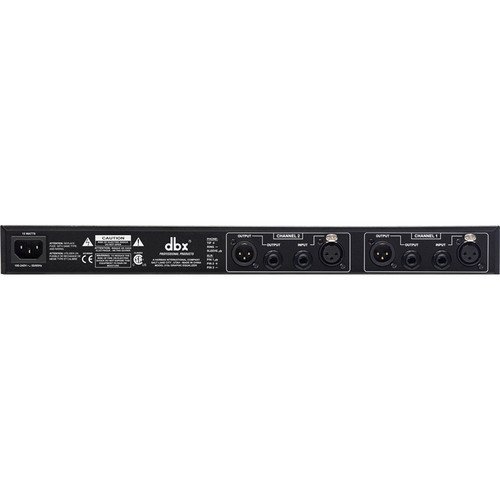

  • XLR and 1/4″ TRS inputs and outputs

Specifications

Filter Type Graphic, constant Q
Number of Channels 2
Frequency Bands 15
Bandwidth 2/3-octave
Range (Boost/Cut) +/-6dB or +/-12 dB, switchable
Inputs 2 x XLR (pin 2 hot)
2 x 1/4″ TRS phone
Input Impedance 40kΩ balanced, 20kΩ unbalanced
Maximum Input Level >+21dBu balanced or unbalanced
Outputs 2 x XLR (pin 2 hot)
2 x 1/4″ TRS phone
Output Impedance 100Ω balanced, 50Ω unbalanced
Maximum Output Level >+21dBu balanced/unbalanced into 2kΩ or greater
>+18dBm balanced/unbalanced into 600Ω
Frequency Response FR: <10Hz to >50kHz, +0.5/-3.0dB
Bandwidth: 20Hz to 20kHz, +0.5/-1.0dB
Dynamic Range >112dB typical
Noise SNR: >95dB typical
THD + N <0.003%
Crosstalk <-90dB, 20Hz to 20kHz
CMRR >40dB, typically >55dB @ 1kHz
Switches EQ Bypass – bypasses the graphic equalizer section in the signal path
Low Cut – activates the 50Hz 12dB/octave high-pass filter
Range – selects either +/- 6dB or +/-12dB slider boost/cut range
Power Requirements 100~240VAC 50/60Hz
15W power consumption
Dimensions 19 x 6 x 1.75″ (483 x 152 x 45mm)
Weight 4.8 lb (2.2kg)
Specialties 20mm non-conductive sliders
Packaging Info Package Weight: 6.15 lb
Box Dimensions (LxWxH): 21.9 x 11.3 x 2.7″
