Digital Signal Processors (DSPs)

DBX 1260m Digital Zone Processor 12×6

DBX Professional

AED 6284.73 inc VAT.

The ZonePRO 1260m is a professional audio device featuring 12 inputs and 6 outputs, designed with fixed I/O, pre-configured architecture, and configurable insert processing. It supports balanced mic/line and unbalanced RCA inputs, along with S/PDIF inputs for digital channels. The hardware-controlled microphone gain can be adjusted per channel, and the device includes AutoWarmth® for consistent frequency bandwidth at varying signal levels. The link bus allows optional audio channel duplication to another ZonePRO device.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: DBX1260MV-EU Categories: , , Brand:

Description

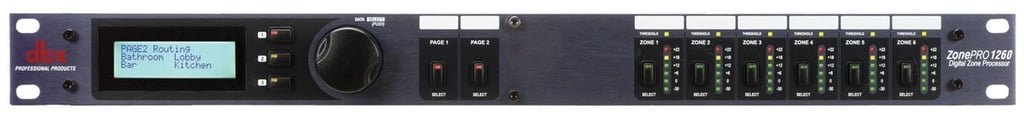

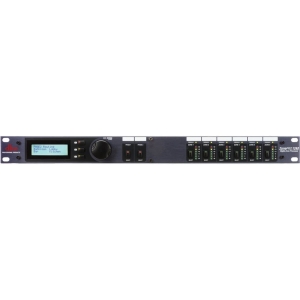

dbx 1260m 12×6 Digital Zone Processor

The ZonePRO 1260m is designed to provide advanced digital processing for audio zoning applications. With its fixed I/O, pre-configured architecture, and versatile configuration options, the 1260m ensures superior audio management.

It boasts 12 inputs (including balanced mic/line inputs and unbalanced RCA inputs) and six outputs, offering flexibility in connections and comprehensive signal metering. The device also features configurable processing inserts, an AutoWarmth® function for enhanced audio fidelity, and a link bus for channel duplication in extended applications.

Key Specifications:

Specification Details
Product Name dbx 1260m 12×6 Digital Zone Processor
Weight 2.81 kg
Frequency Response 20Hz – 20kHz, +/- 0.5dB
Power Capacity 27 W
Impedance 120Ω Balanced, 60Ω Unbalanced
Dimensions 1.75” (1U) x 19” x 7.75” (45mm x 483mm x 197mm)
Manufacturer dbx
Color Black

Additional Features:

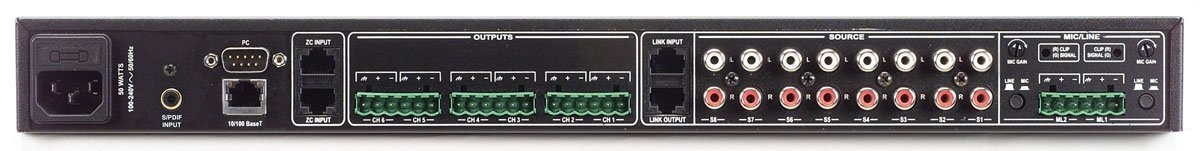

  • Six balanced mic/line inputs
  • Four mono-summed pairs of unbalanced RCA inputs
  • One S/PDIF input for dual digital channels
  • Microphone gain control for each channel
  • Input and output insert positions for flexible processing
  • AutoWarmth® available on every output zone
  • Optional zone controllers for simplified interface
  • Control via RS-232 or Ethernet
  • Wizard-driven configuration with ZonePRO Designer software
