Description

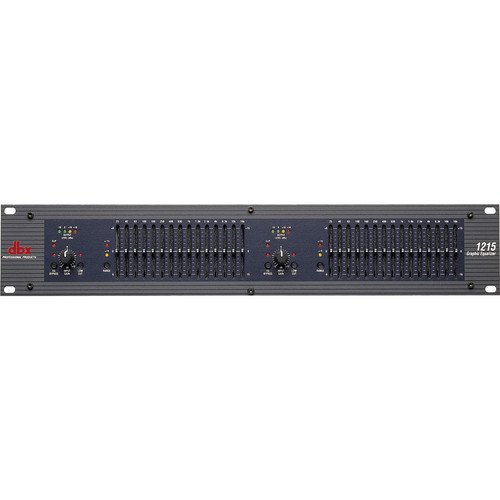

dbx 1215 Dual-Channel Graphic Equalizer
The dbx 1215 is a robust 15-band dual-channel graphic equalizer designed for professional sound reinforcement applications. With straightforward controls, it ensures precise audio adjustments, making it ideal for demanding environments.
Key Features
| Specification |
Details |
| Graphic Equalizer |
Dual-channel, 15-band, 2/3 octave |
| Boost/Cut Range |
±6 dB or ±15 dB selectable |
| Sliders |
45mm center-detent |
| Filters |
Fixed high-pass filters with bypass |

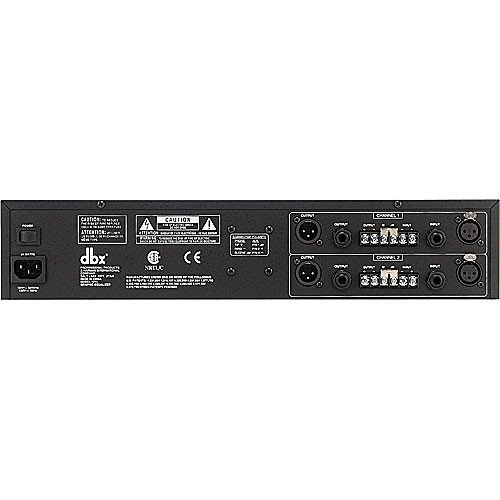

| Input/Output Connections |
Active balanced, XLR, 1/4″ TRS, Barrier Strip |
| Ground Isolation |
Chassis/signal ground-lift |
| Noise Reduction |
RF-filtered inputs and outputs |
| Power Supply |
Internal |
| Compatibility |
Magnetically isolated transformer |
| Relay Bypass |
Power-off hard-wire with 2-second delay |
Specifications
| Specification |
Details |
| Number of Channels |
2 |
| Inputs |
2 x XLR, 2 x 1/4″ TRS, Barrier Strip |
| Outputs |
2 x XLR, 2 x 1/4″ TRS, Barrier Strip |
| Maximum Input Level |
+21 dBu |
| Frequency Bands |
15 x 2, ISO spacing |
| Bandwidth |
2/3 Octave |
| Range (Boost/Cut) |
±6 dB or ±15 dB selectable |
| Maximum Output Level |
+21 dBu |
| Frequency Response |
10 Hz to 50 kHz |
| Dynamic Range |
115 dB |
| Noise |
-97 dBu |
| Dimensions |
2 RU, 7 15/16″ Deep |
| Power-Off Relay |
Hardwire bypass with 2-second delay |
Packaging Info
| Specification |
Details |
| Package Weight |
11.68 lb |
| Box Dimensions |
22.4 x 11.4 x 7.5 in |
