Description

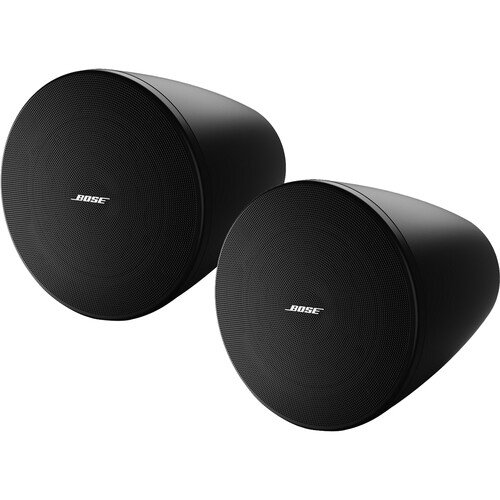

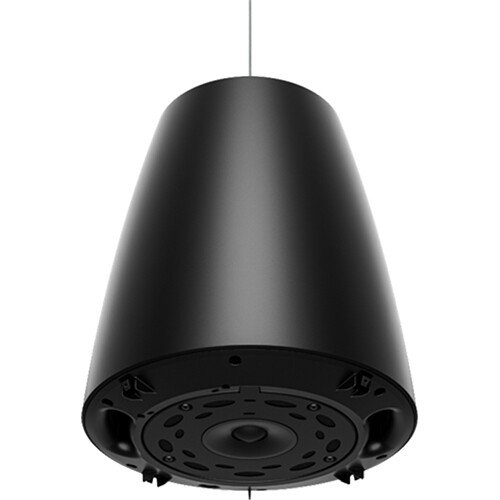

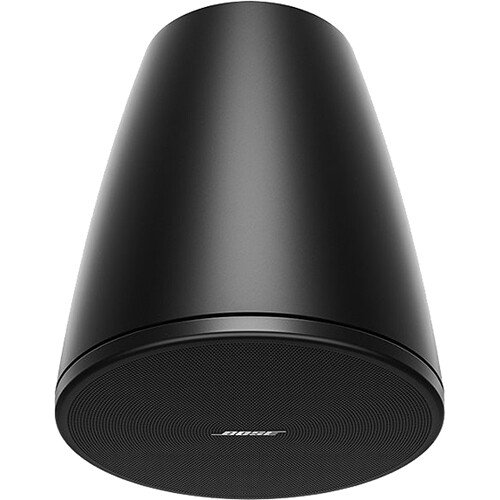

With a coaxial two-way design, the 60-watt DesignMax DM5P loudspeaker offers rich lows and clear, intelligible highs – along with premium aesthetics that complement any commercial sound installation. It features a coaxial 5.25-inch woofer and 1-inch tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 65 Hz – 20 kHz. The DM5P is a pendant loudspeaker featuring a recessed single-point suspension system for a sleek, attractive appearance and is available in black.

Features

• Speaker configuration: 1x 5.25″ woofer and 1x 1″ tweeter
• Removable and rotatable logos
• Euroblock connections
• Frequency response (-10dB): 65 – 20000 Hz
• Dispersion pattern: 120° conical
• Power: RMS 60 W / peak 240 W
• Sensitivity (SPL/1W@1m): 87 dB
• Max SPL @1m: 105 dB / 111 dB peak

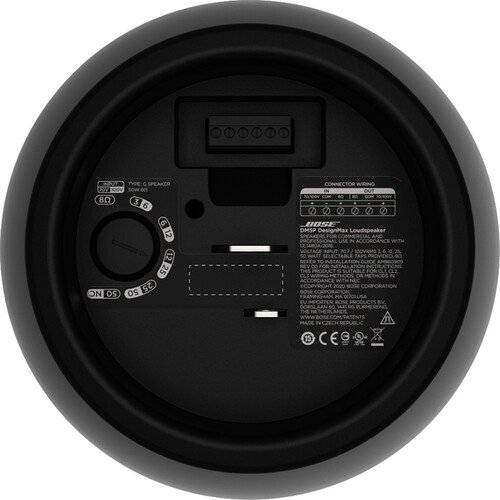

• Transformer outputs: 70V: 3, 6, 12, 25, 50 W, bypass, 100V: 6, 12, 25, 50 W, bypass
• Impedance: 8 Ohm
• Cable length: 4.5 m
• Dimensions (Ø x D): 259 x 300 mm
• Weight: 4.1 kg
• Colour: Black
• Package quantity: 1 pair
