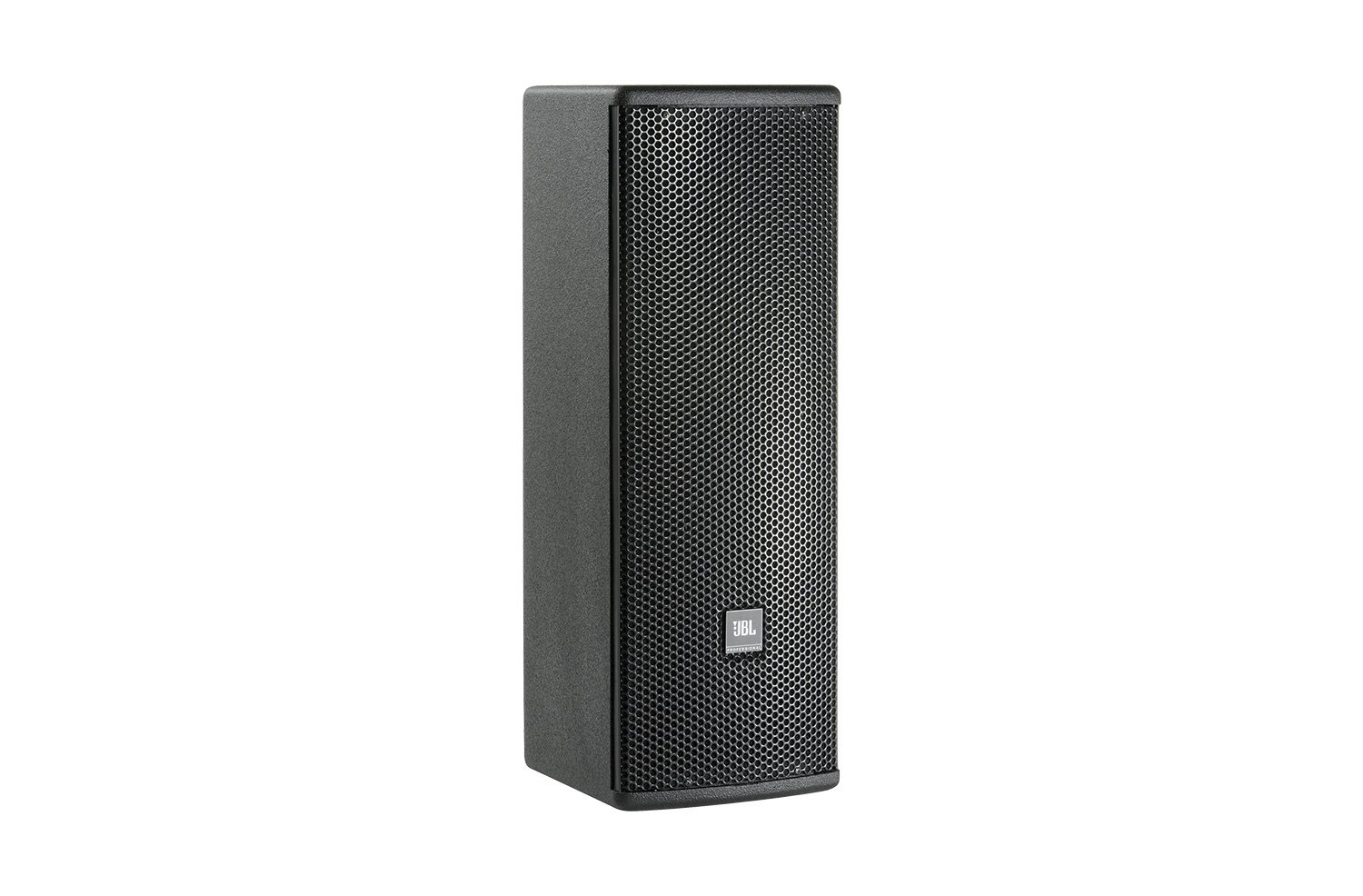

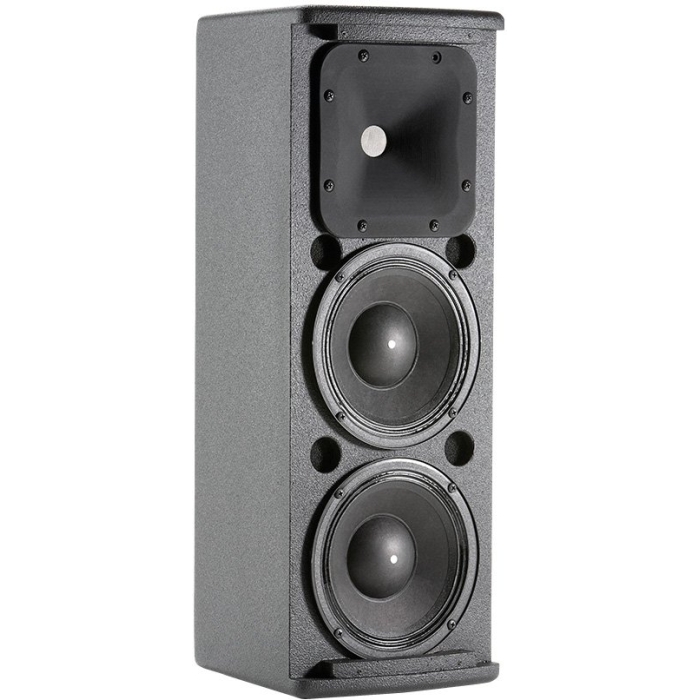

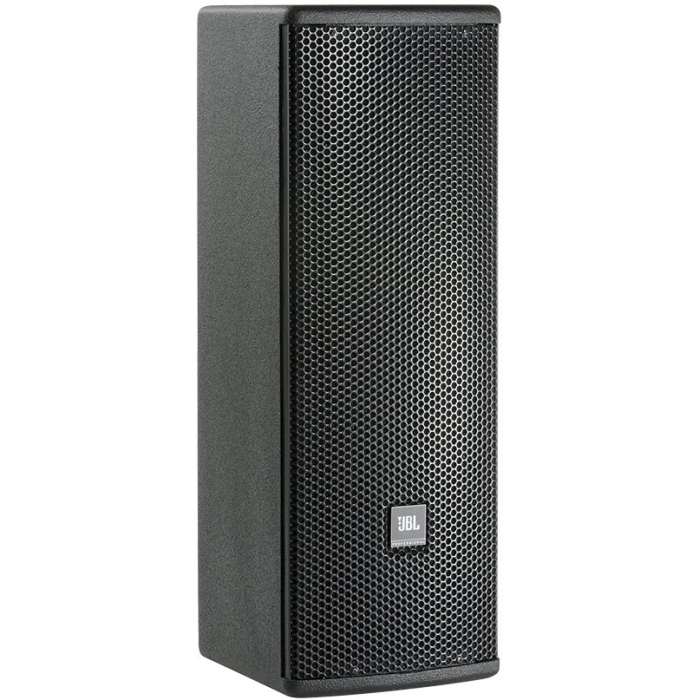

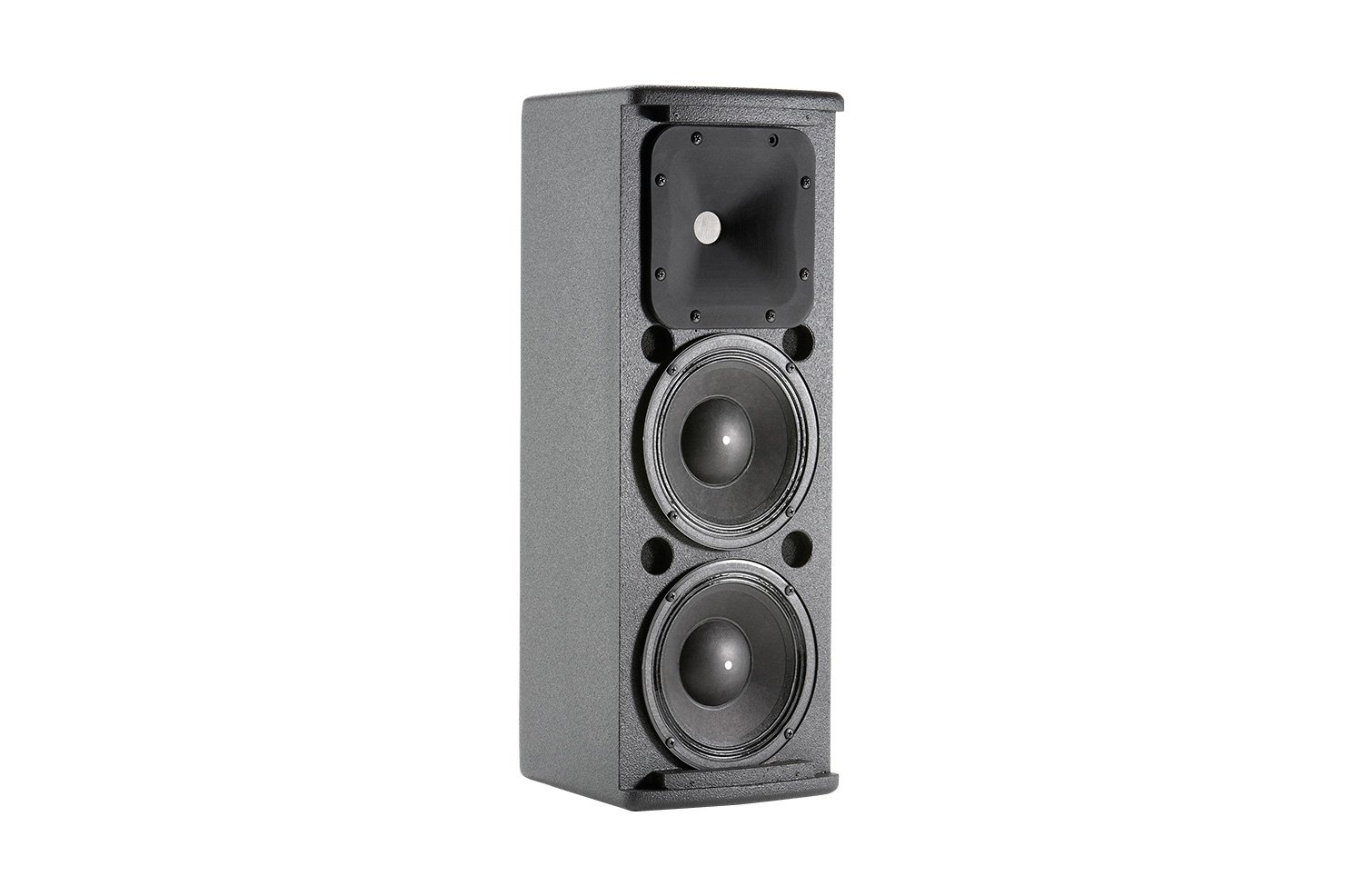

JBL AC26 Ultra Compact 2-Way Loudspeaker with 2×6.5in LF Drivers Black

JBL

AED 6,351 inc VAT.

متوفر في المخزن
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: AC26 Categories: , Brand:

High output, 2-way loudspeaker systems combining flexibility with high fidelity



Description

High output, 2-way loudspeaker systems combining flexibility with high fidelity



Features

  • 1” Exit Compression Driver with 90° x 90° Coverage PT™ Waveguide
  • 165 mm (6.5 in) LF transducer
  • Ultra compact enclosure
  • 360W Program
  • Dual Neutrik NL4 connectors plus screw terminal
  • FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality
  • Attachment points for optional U-bracket, third part OmniMount® type bracket and stand mount accessory



Specifications


Frequency Response (-10dB) 55 Hz -20 kHz
Frequency Response (±3 dB) 70 Hz -18 kHz
System Power Rating 350 W (AES rated)
180 W / 360 W / 720 W (Continuous/Program/Peak) (IEC rated)
Impedance 8 ohms
Coverage Pattern 90° x 90°
Dimensions (H x W x D) 539.8 x 199.4 x 226.1mm (21.3 x 7.8 x 8.9in)
Net Weight (each) 11.0 kg (24.3 lb)
Maximum SPL (1m) 117 dB
System Sensitivity (1w @ 1m) 92 dB SPL
LF Driver 2 x JBL 226J, 165 mm (6.5 in) SFG™ driver with 50 mm (2 in) edge wound voice coil
Nominal LF Driver Impedance 8 Ohms
HF Driver 1 x 2414H 25 mm (1 in) exit compression driver, 25 mm (1 in) voice coil
Enclosure 12 mm and 15 mm exterior grade multi-ply hardwood plywood
Suspension Attachment 6 x M8 points; 1 top, 3 bottom, 2 rear. 4 x M6 rear for OmniMount® 30.0 or MultiMount® MM-022-BT, MM-024-BT, MM-020-CM.
Environmental Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX.
