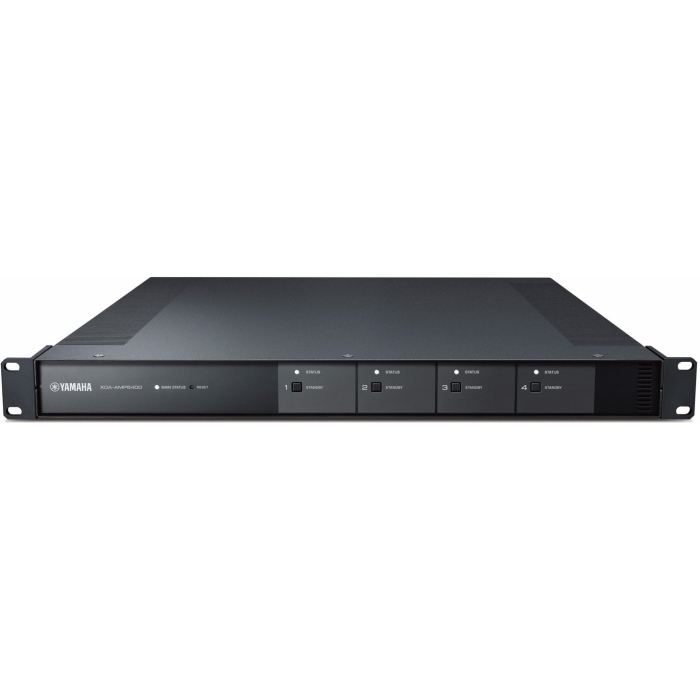

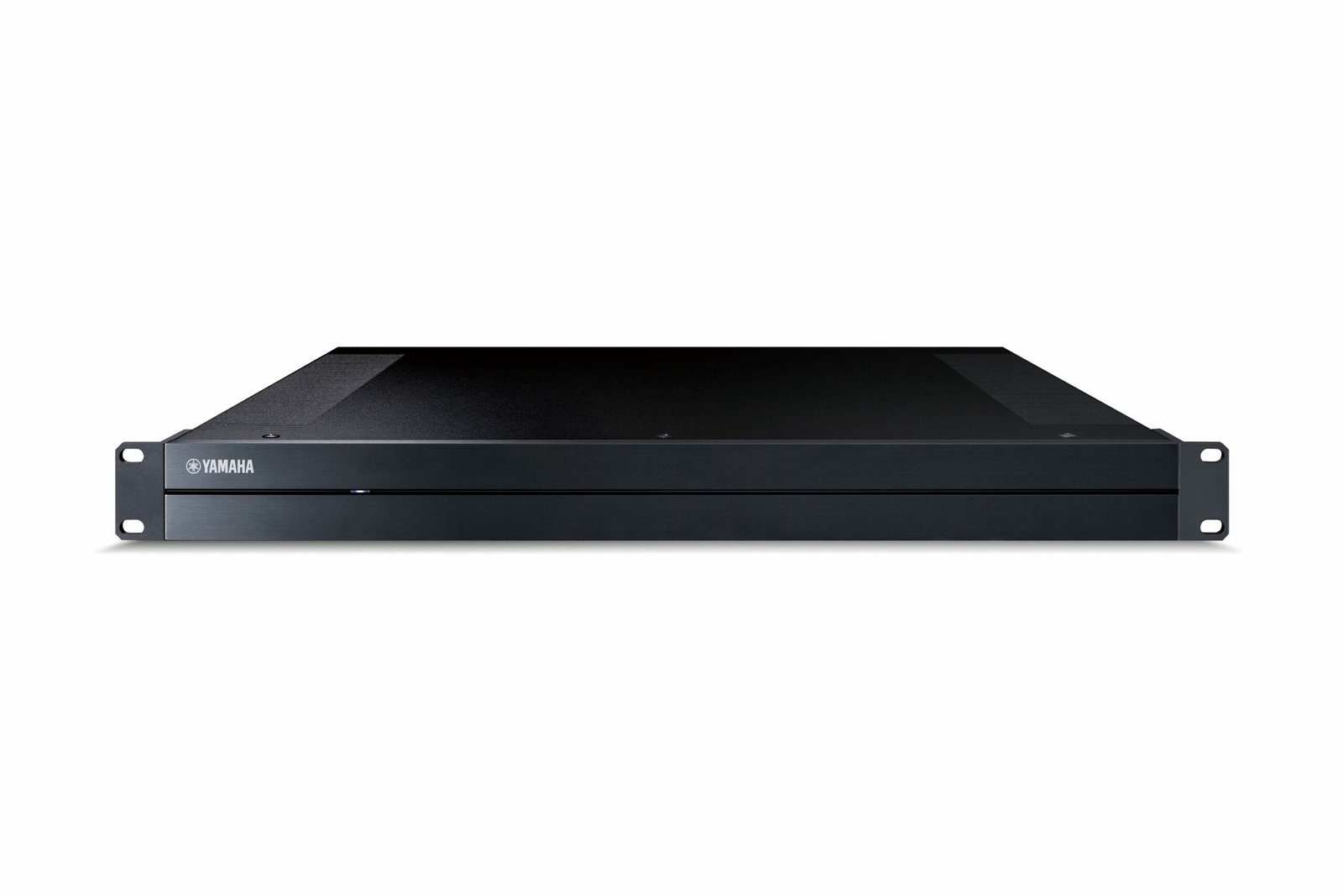

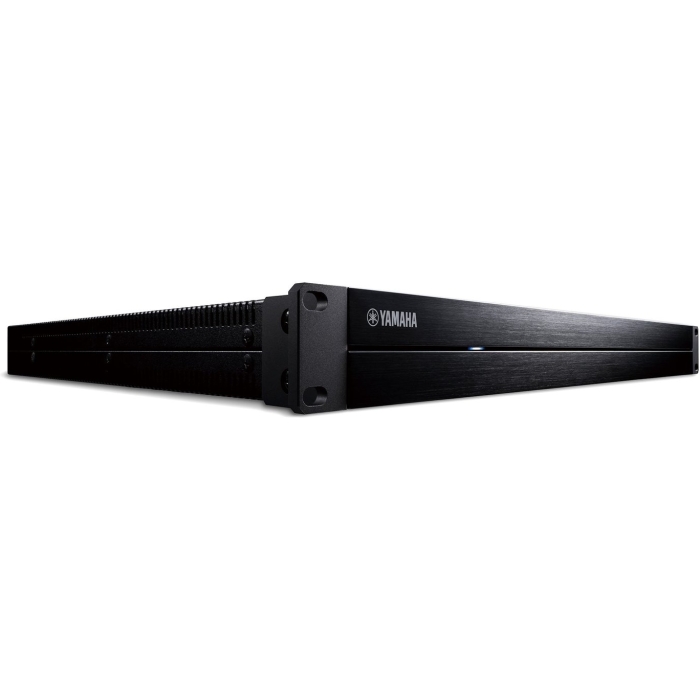

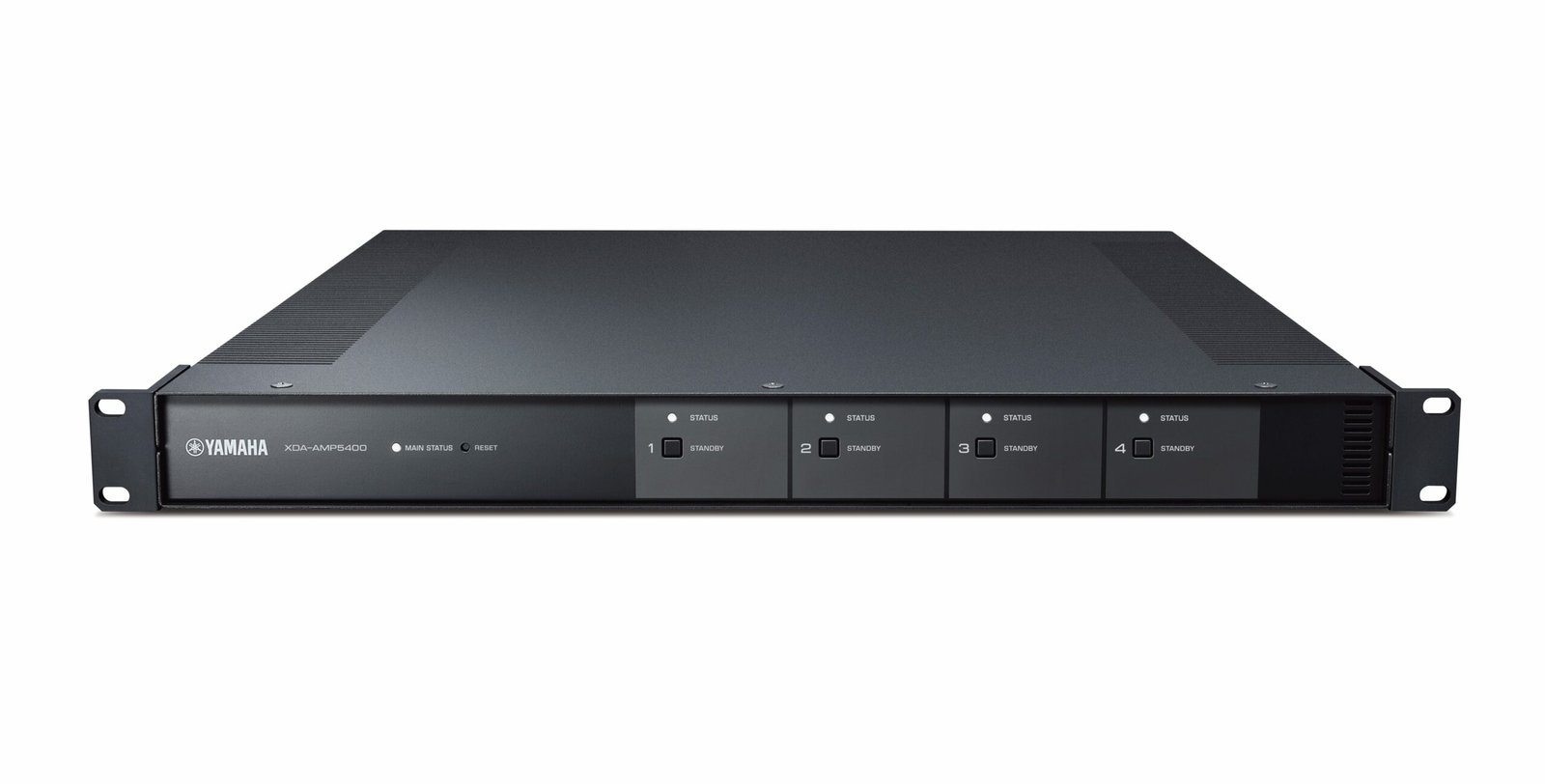

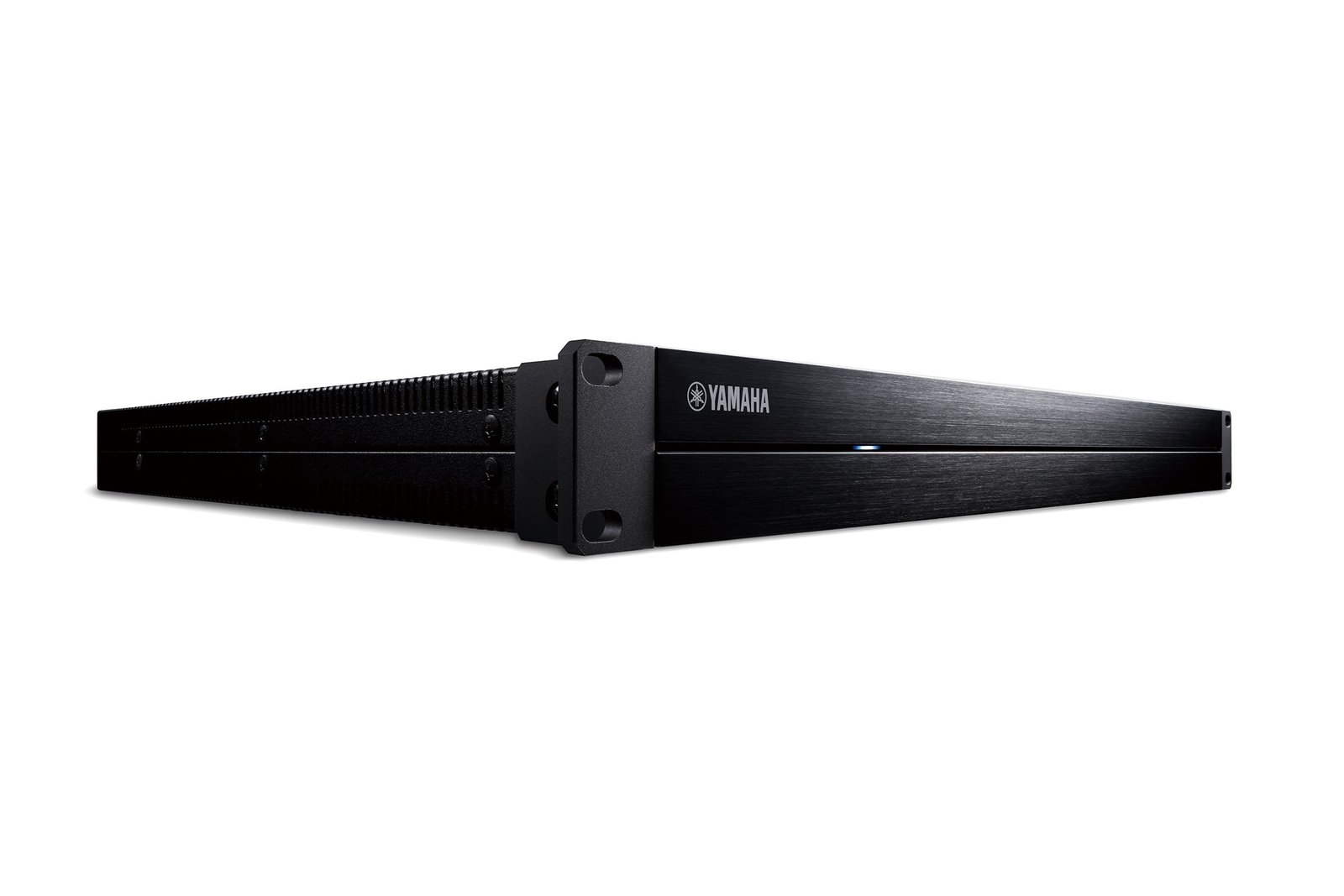

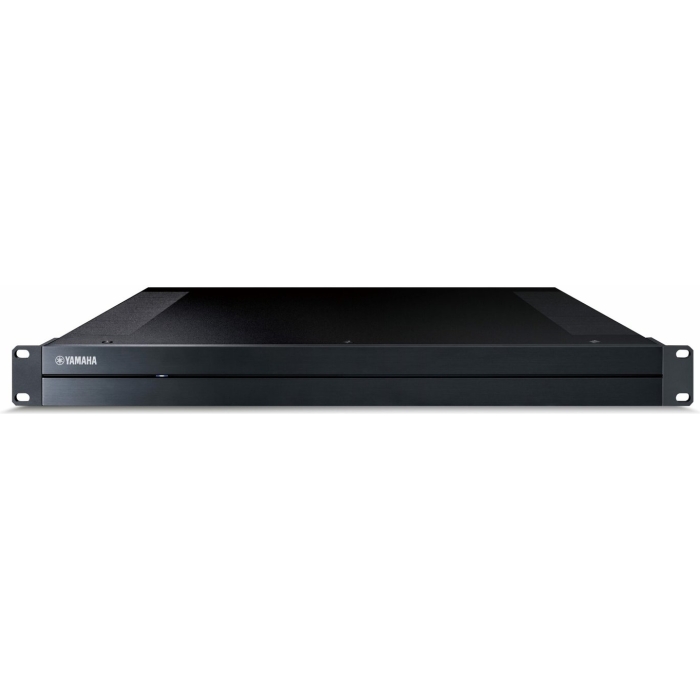

Yamaha Multi-Room Amplifier XDA-AMP5400RK 8 Channel 4 Zone Black

Yamaha

AED 8074.50 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: XDA-AMP5400RK Categories: , Brand:

The “AMP” is a companion amplifier tailored for custom whole home audio system integrations with the Yamaha XDA-QS5400RK, enhancing speaker coverage and power output. It can also extend secondary zone speaker coverage for Yamaha AV receivers equipped with Zone pre outs.

Description

Specially designed for custom integration of whole home audio systems, the “AMP” serves as a companion amplifier for the Yamaha XDA-QS5400RK to expand speaker coverage and/or increase power output. It may also be used to expand secondary zone speaker coverage for Yamaha AV receivers that have Zone pre outs.

Key Features

  • Works together with Yamaha XDA-QS5400RK to expand speaker coverage in custom integrated multi-room audio systems
  • Eight channels of audiophile-grade Class D amplification, bridgeable and 4-ohm capable, featuring a unique ground loop/hum-free circuit design
  • Four audio buses and included jumpers allow for a wide variety of speaker configurations
  • Interlocks power on/off with XDA-QS5400RK via Trigger I/O
  • Integration-friendly features include audio sensing inputs, IR I/O and more
  • 1U high, rack-wide enclosure; removable rack ears and faceplate included

Specifications

Specification Details
Channel 8 channel (2 channel x 4)
Minimum Speaker load Capability 4 ohm
BTL Connection Yes

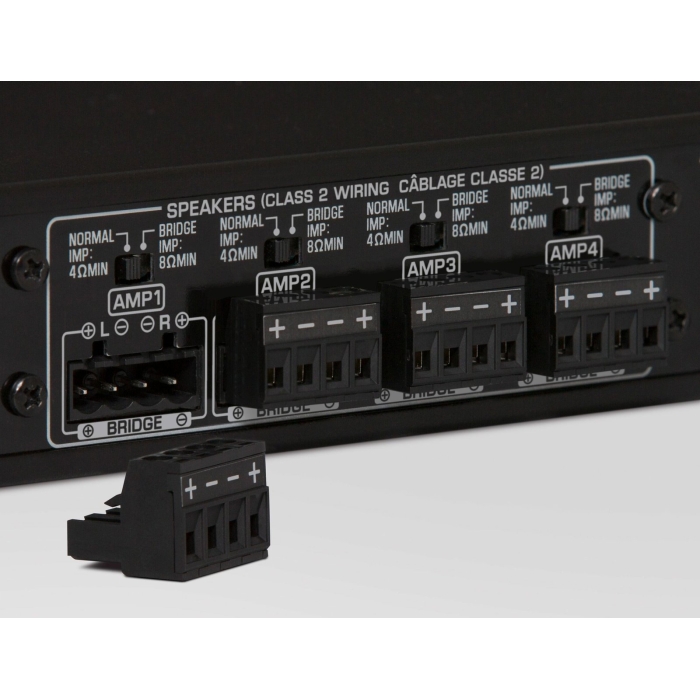

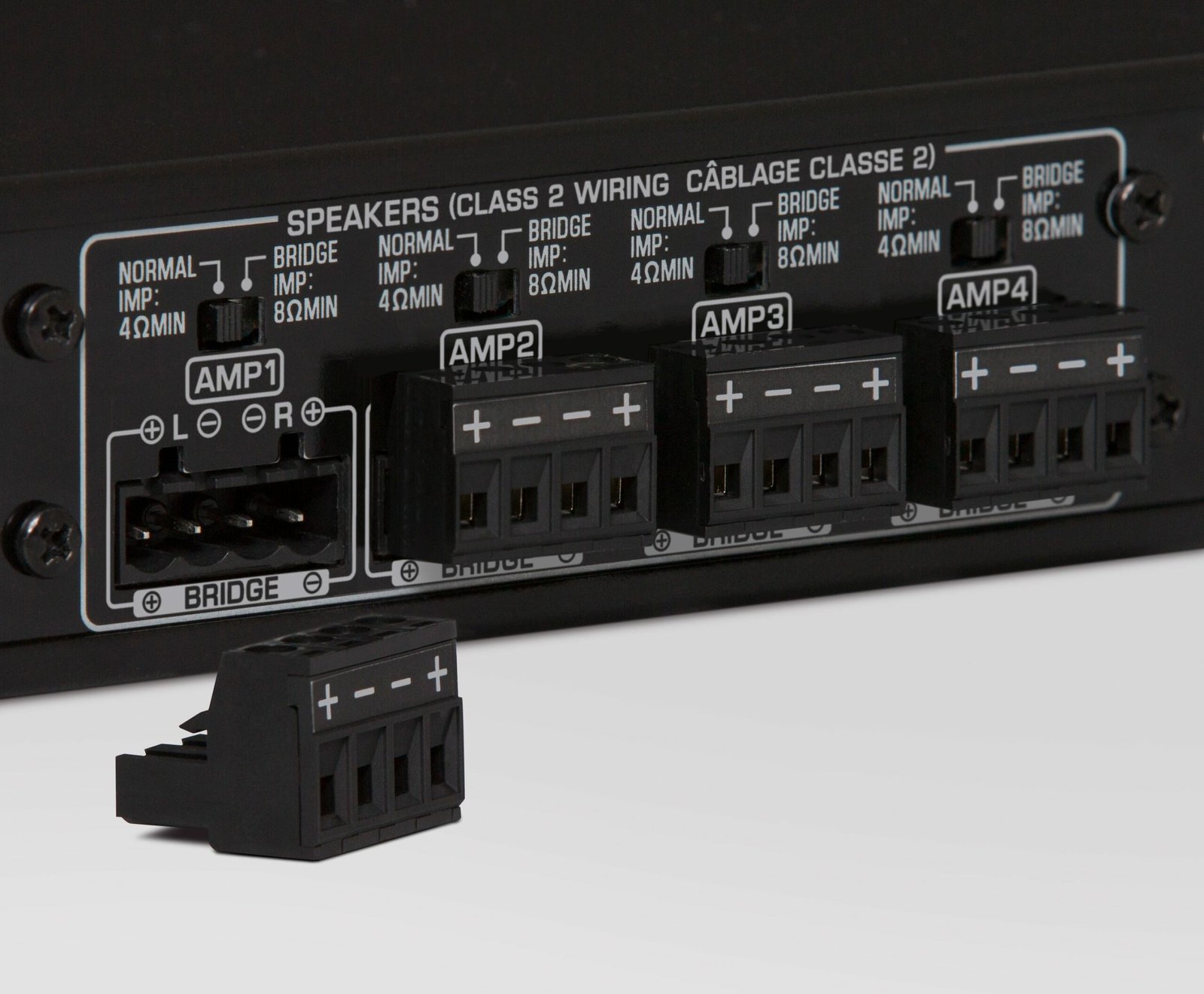

Speaker Output Terminal 4 (Euroblock)
Audio Input Terminal RCA: 4
Audio Output Terminal RCA (2-ch through out): 4
Trigger In / Out 4 / 4
Remote In / Out 1 / 1
Rated Output Power (1 kHz, 0.9% THD, 2ch driven) Normal (4 / 8 ohms): 90 / 50 W, Bridge (8 ohms): 100 W
Rated Output Power (1 kHz, 0.9% THD, 1ch driven) Normal (4 / 8 ohms): 100 / 50 W, Bridge (8 ohms): 200 W
Dynamic Power (20 Hz-20 kHz, 0.08% THD, 2ch driven, 20 ms burst) Normal (4 / 8 ohms): 80 / 40 W, Bridge (8 ohms): 150 W
Dynamic Power (1 kHz, 0.9% THD, 2ch driven, 20 ms burst) Normal (4 / 8 ohms): 100 / 50 W, Bridge (8 ohms): 200 W
Dynamic Power (1 kHz, 0.9% THD, All ch driven, 20 ms burst) Normal (4 / 8 ohms): 80 / 50 W, Bridge (8 ohms): 170 W
Maximum Effective Output Power [1-ch driven, 1 kHz, 10% THD] Normal (4 / 8 ohm): 130 / 65 W, Bridge (8 ohm): 260 W
Total Harmonic Distortion [SP OUT, 20 Hz-20 kHz, 25 W, 8 ohm] 0.04%
Frequency Response [1 kHz + 0 / -3 dB] SP OUT AUX IN: 5 Hz-40 kHz
Signal to Noise Ratio [SP OUT AUX IN] 108 dB
Maximum Input Signal [PRE OUT L / R, 0.9% THD] 1 V
Gain [SP OUT 1 V Input] 25.8 dB
Input Sensitivity [1 W Power, 8 ohm] 150 mV, [MAX (50W) Power, 8 ohm] 1.0 V
Power Consumption 130 W, [All Zone On] No Signal Condition: 32 W, [All Zone Off] Audio Sense On: 14.8 W
Standby Power Consumption Audio Sense Disable: 0.3 W, Audio Sense Enable / Mode Standby: 0.5 W
Power Management (Auto Power Standby) Yes (On / Off)
Dimensions (W × H × D) [Table Top Mount with Adhesive Feet] 437 x 46 x 443 mm; 17-1/4” x 1-3/4” x 17-3/8”, [Table Top Mount with Adhesive Feet and Faceplate] 437 x 46 x 453 mm; 17-1/4” x 1-3/4” x 17-7/8”, [Rack Mount] 481 x 44 x 443 mm; 18-7/8” x 1-3/4” x 17-3/8”, [Rack Mount with Faceplate] 481 x 44 x 453 mm; 18-7/8” x 1-3/4” x 17-7/8”
Weight 6.0 kg; 13.2 lbs.
