Yamaha MG12X CV 12-Input Audio Mixer with Built-In Effects

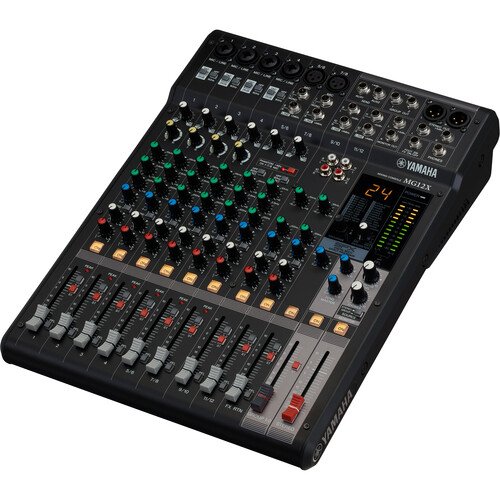

Yamaha MG12X Audio Mixer

The Yamaha MG12X is a high-performance, compact audio mixer designed to cater to the needs of audio professionals in various settings such as live performances, recording, lectures, and more. With its robust build and state-of-the-art technology, the MG12X ensures reliable and top-notch audio quality for every situation.

Featuring twelve simultaneous input channels, including four mono mic/line combo input channels, two stereo line input channels that support mono mic/line inputs, and two stereo line inputs with both 1/4″ and RCA jacks, the MG12X offers versatile connectivity options. Each of the first eight channels is equipped with D-Pre mic preamps, a 3-band EQ, pan control, and a high-pass filter, making it ideal for professional-level sound control.

The D-Pre mic preamps incorporate an inverted Darlington circuit and offer switchable 48V phantom power to accommodate both dynamic and condenser microphones. For managing high sound pressure levels from sources like guitar amps and drums, channels 1-4 include 26 dB attenuation switches. The MG12X also boasts XLR and TRS stereo outs, a 1/4″ headphone output, and TRS 1/4″ stereo monitor outs, ensuring comprehensive connectivity for monitoring and recording.

Built-In Professional Effects

The MG12X comes with a built-in SPX digital effects processor that adds a professional touch to your mix. It features 24 editable effects including reverb, delay, phaser, flanger, chorus, tremolo, auto-wah, and distortion, allowing for dynamic audio enhancements across various applications.

Easy Compression and EQ

Compression and EQ are crucial for fine-tuning audio signals. The 1-knob compressors on this mixer simplify compression adjustments, making it easier to achieve the desired audio output without the need for extensive technical knowledge. Meanwhile, the 3-band EQ on mono channels and 2-band EQ on stereo channels allow precise tone shaping for a cleaner, balanced sound.

Additional Features

• Compact design suitable for various applications
• SPX digital multi-effect processor with 24 programs
• Internal universal power supply for worldwide usage
• Metal chassis for enhanced durability
• Optional rackmount kit for flexible installation

Specifications

Specification	Details
Number of Analog Input Channels	12 (6 Mono / 4 Stereo)
Number of Mic Preamps	6
Analog Output Channels	Stereo Master Output, Stereo ALT Bus/Subgroup Output, Stereo Control Room/Monitor Output, Mono Aux Send Output
Phantom Power	+48V
AC Input Power	100 to 240 VAC, 50 / 60 Hz
Dimensions	12.1 x 4.6 x 16.6 / 30.7 x 11.7 x 42.2 cm
Weight	9.3 lb / 4.2 kg
Built-In Effects	24 stereo effects
