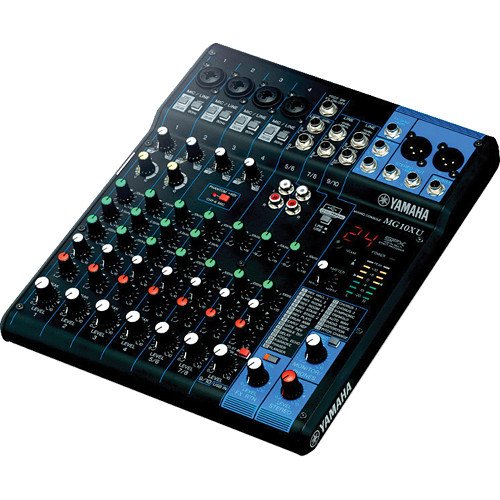

Yamaha MG10XU 10-Channel Analog Mixing Console with Mic Preamps and Pad Switch

Yamaha MG10XU 10-Input Mixer with Built-In Effects

The Yamaha MG10XU is a compact and versatile 10-input mixer designed to cater to a range of audio needs. Whether it’s for live performances, lectures, studio recordings, or similar applications, this mixer provides professional-grade sound with its built-in digital effects and USB functionality.

Overview

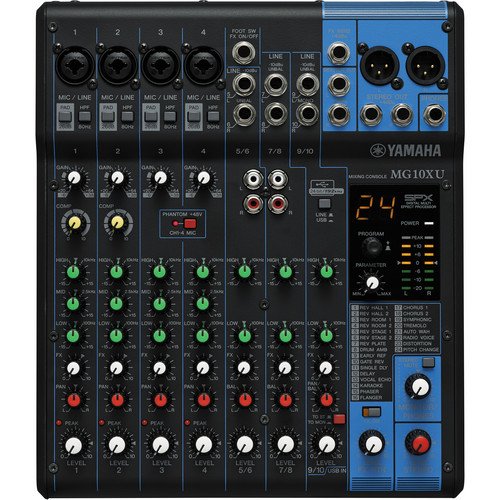

With four mic/line combo inputs equipped with D-PRE mic preamps and six 1/4″ line inputs with stereo level controls, the MG10XU is designed for easy integration with a variety of audio setups. The USB connectivity allows for direct computer interfacing, making it ideal for recording performances directly to your DAW with up to 24-bit/192kHz quality.

Each of the mic/line inputs features a 3-band EQ, high-pass filter, and a pan control, ensuring that users can tailor the sound to their needs. Moreover, the switchable 48V phantom power allows for the use of both dynamic and condenser microphones, and the 26 dB attenuation switch is perfect for accommodating loud sound sources.

Features

• USB compatibility with PC, Mac, and iPad (2 or later).
• Inclusive of Cubase AI DAW software for advanced recording and editing.
• Variety of input channels: 4 mono mic/line inputs and 3 stereo line inputs.
• 3-band EQ on channels 1-4 and 2-band EQ on channels 5-10.
• FX send level on each channel, offering 24 effects presets including reverb, delay, chorus, and more.
• One-knob compressor on channels 1 and 2 to manage dynamic range easily.

Specifications

Specification	Details
Built-in Effects	SPX Algorithm: 24 Program
Phantom Power	+48 V Switchable, Channels 1-4
Digital I/O	USB: USB Audio Class 2.0 Compliant; Sampling Frequency: Max 192 kHz; Bit Depth: 24-Bit
Input Channels	4 x Mono [Mic/Line]; 3 x Stereo [Line]
Output Channels	2 x Stereo Out; 1 x Monitor Out; 1 x Headphone Out; 1 x FX Out
Bus	Stereo: 1; AUX[FX]: 1
Pad	26 dB (Mono Channels)
HPF	80 Hz, 12 dB/Oct (Mono Channels)
Compressor	Threshold: +22 dBu to -8 dBu; Ratio: 1:1 to 4:1; Output Level: 0 dB to 7 dB; Attack Time: Approx 25 msec; Release Time: Approx 300 msec
Equalizer	EQ High Gain: +15 dB/-15 dB, Frequency: 10 kHz Shelving; EQ Mid Gain: +15 dB/-15 dB, Frequency: 2.5 kHz Peaking; EQ Low Gain: +15 dB/-15 dB, Frequency: 100 Hz Shelving
LED	Peak LED Turns On When Post EQ Signal Reaches 3 dB Below Clipping
Level Metering	2 x 7-Segment LED Meter [PEAK, +10, +6, 0, -6, -10, -20 dB]
Total Harmonic Distortion	0.02% @ +14 dBu (20 Hz to 20 kHz), GAIN Knob: Min; 0.003% @ +24 dBu (1 kHz), GAIN Knob: Min
Frequency Response	+0.5 dB/-1.0 dB (20 Hz to 48 kHz), Refer to the Nominal Output Level @ 1 kHz, GAIN Knob: Min
Equivalent Input Noise	-128 dBu (Mono Input Channel, Rs: 150 Ohms, GAIN Knob: Max)
Residual Output Noise	-102 dBu (STEREO OUT, STEREO LEVEL Knob: Min)
Crosstalk	-83 dB

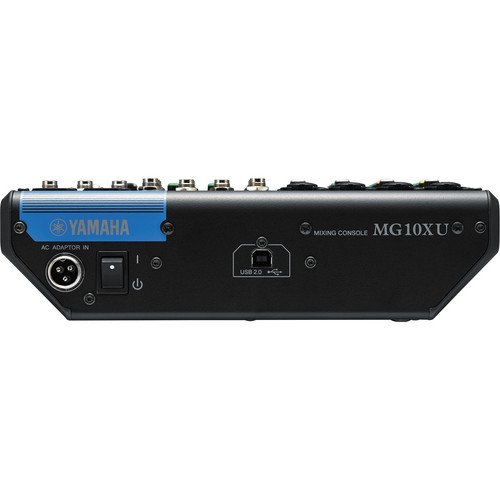

Power Requirement	PA-10 (AC 38 VCT, 0.62A) or Equivalent Recommended by Yamaha
Power Consumption	22.9 W
Operating Temperature	32 to 104°F / 0 to 40°C
Dimensions	9.6 x 2.8 x 11.6″ / 244 x 71 x 294 mm
Net Weight	4.63 lb / 2.1 kg

Packaging Info

Item	Details
Package Weight	7.61 lb
Box Dimensions (LxWxH)	15.5 x 14 x 5.3 inches
