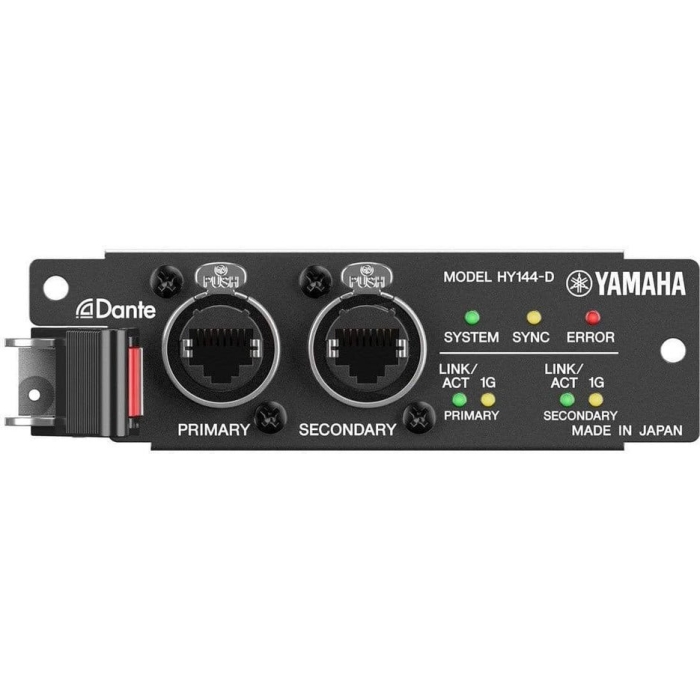

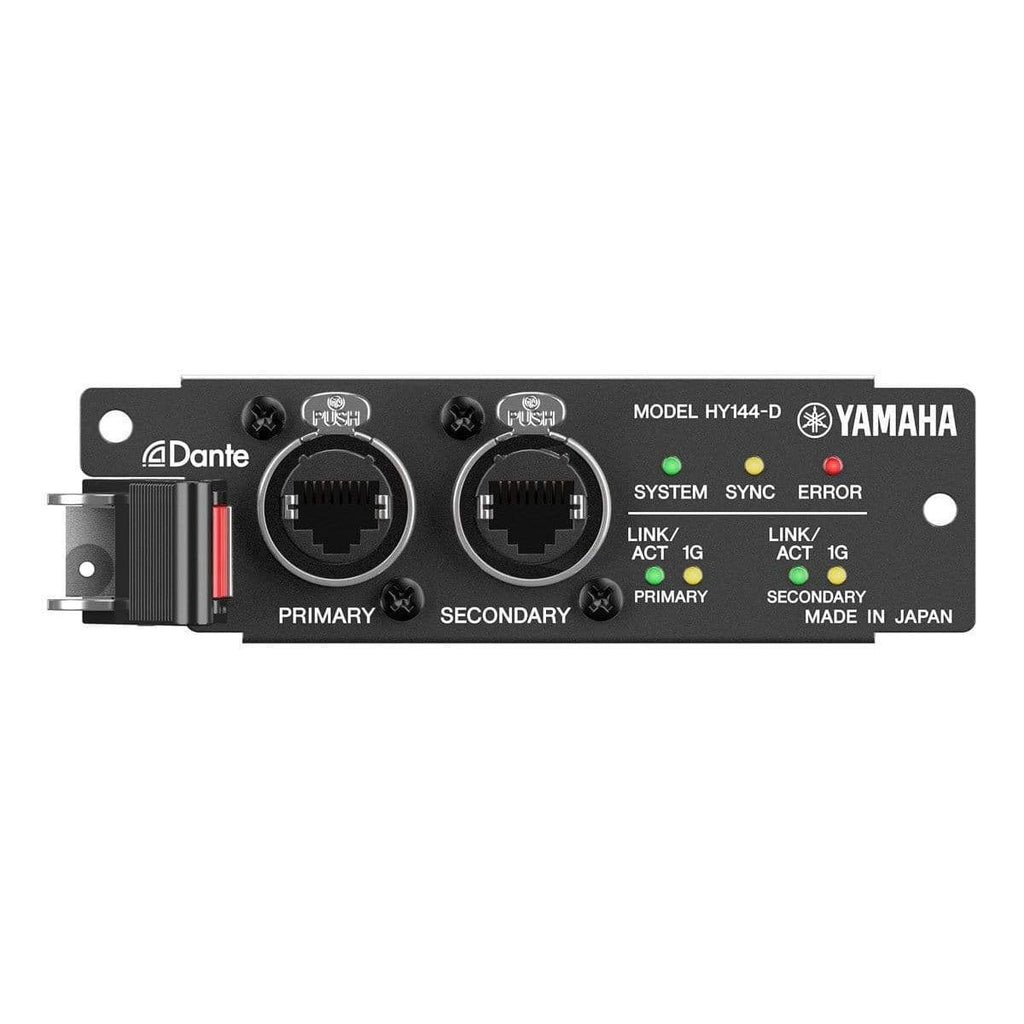

Yamaha HY144-D-SRC Audio Interface Card for Dante Network Integration

Yamaha

AED 21372.75 inc VAT.

The Yamaha HY144-D-SRC audio interface card enables connection of devices with HY slots to the Dante digital audio network via Gigabit Ethernet, supporting up to 144 channels of 96 kHz/32-bit audio I/O and featuring sample rate conversion for inter-device connectivity at various sampling rates, with five selectable operational modes.

In stock
Request Quote
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: HY144-D-SRC Categories: , , Brand:

Description

Yamaha HY144-D-SRC Audio Interface Card

The Yamaha HY144-D-SRC audio interface card is a versatile digital I/O solution specifically designed for devices with HY slots, providing seamless integration with Dante digital audio networks over Gigabit Ethernet. This high-performance card supports up to 144 input and 144 output channels of 96 kHz/32-bit uncompressed digital audio, making it ideal for professional audio environments. With onboard sample rate conversion, it ensures compatibility between devices operating at different sampling rates through five selectable operational modes.

Key Features

Highlighted by its ability to handle extensive channel counts and robust connectivity options, the HY144-D-SRC is tailored for sophisticated audio setups:

  • Supports up to 144 input and 144 output channels of 96 kHz/32-bit digital audio
  • Provides primary and secondary connectors for redundant network connections and supports daisy chaining
  • Offers five firmware-selectable operating modes for flexible sample rate conversion and channel count management

Specifications

Specification Details
Sampling Frequency Range: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Clock Precision: -200 to +200 ppm
Temperature Range (Operating): 32 to 104° F (0 to 40° C)
Temperature Range (Storage): -4 to 140° F (-20 to 60° C)
Digital I/O Connectors: PRIMARY/SECONDARY
Format: Dante
Audio Data Length: 24 bit or 32 bit when in ‘144io’ mode
Network Standard: 1000BASE-T
Max Channels: 144 in/144 out, depending on selected SRC mode
Max Cable Length: 100 m
Connector Type: etherCON CAT5e (STP)
Latency: Selectable: 0.25 msec, 0.5 msec, 1.0 msec, 2.0 msec, 5.0 msec
Dimensions (W x H x D): 4.9″ x 1.5″ x 8.2″ (125 x 37 x 207 mm)
Net Weight: 0.6 lbs (0.25 kg)
