Yamaha DXS18XLF 18″ 1600W Powered Subwoofer – Black

Yamaha

AED 7035 inc VAT.

The Yamaha DXS18XLF is a black powered subwoofer featuring an 18-inch woofer and a 1600W Class-D amplifier, offering a frequency range of 30 to 150 Hz (-10 dB) and a maximum SPL of 136 dB, ideal for enhancing the bass output of DZR-series powered loudspeakers.

In stock
Request Quote
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: DXS18XLF Categories: , , Brand:

Description

Yamaha DXS18XLF Powered Subwoofer

The Yamaha DXS18XLF is an advanced powered subwoofer designed to extend the low-frequency capabilities of full-range speakers, making it an excellent companion for the DZR series powered loudspeakers. This subwoofer features a high-output 18-inch woofer and a powerful 1600W Class-D amplifier, delivering deep bass frequencies that enhance any sound system.

Key Features

  • 18″ Woofer with 4″ Voice Coil
  • 1600W Class-D Amplifier
  • Frequency Range: 30 Hz to 150 Hz (-10 dB)
  • Maximum SPL: 136 dB
  • Durable Plywood Cabinet with Polyurea Coating
  • Optional Accessories: Speaker Cover (SPCVR-DXS18X) and Wheel Kit (SPW-1)

D-XSUB LF Processing

The DXS18XLF utilizes a 96 kHz high-power DSP processor for sophisticated low-frequency management. This includes three modes:

  • Normal Mode: Balanced low-frequency response.
  • Boost Mode: Tighter and more punchy bass.
  • Xtended LF Mode: Further extension of low-end frequencies.

DSP Protection

  • Maximizes output and ensures component longevity.
  • Precise DSP control for optimal limiter points set through extensive testing.
  • Consistent monitoring of power supply, amplifiers, and transducers.

Specifications

Specification Details
Configuration Active Subwoofer
Enclosure Type Bass-Reflex Subwoofer
Total Power Capacity 1600 W Peak / 1200 W RMS
Amplifier Class Class-D
LF Driver 1 x 18″ / 457.2 mm Woofer
LF Voice Coil 4″ / 101.6 mm
Magnet Ferrite
Frequency Range 30 Hz to 150 Hz -10 dB
Maximum SPL 136 dB
Max Input Level Line Input: +24 dBu
I/O Impedance Input: 20 Kilohms

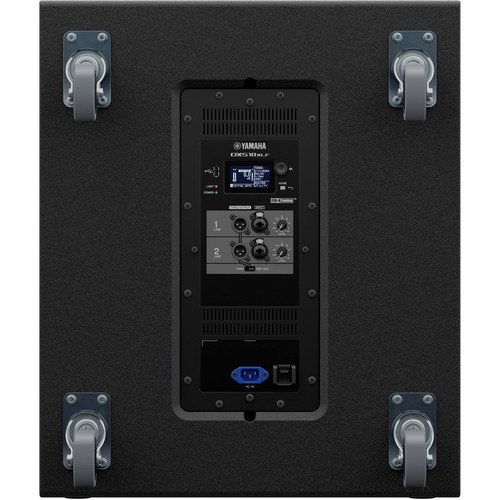

Audio I/O 2 x Combo XLR-1/4″ TRS Female Balanced/Unbalanced Input
2 x XLR 3-Pin Male Balanced Output
USB 1 x USB-A (External Memory, Host Connection)
Maximum Sampling Rate 96 kHz
AC Input Power Universal: 100 to 240 VAC, 50 / 60 Hz
AC Power I/O 1 x IEC (Locking)
Power Consumption 40 W (Idle) / 180 W (1/8 Power)
Mounting 1 x 1.4″ / 35 mm Pole Socket (Top)
1 x M20 Pole Socket (Top)
Handles 1 x Each Side
Cooling Fan (Variable Speed)
Construction Material Plywood
Dimensions 21.7 x 25.9 x 28.3″ / 550 x 657 x 720 mm
Weight 107.8 lb / 48.9 kg
Package Weight 125.5 lb
Box Dimensions (LxWxH) 33 x 31 x 26.25″
