Powered Speakers

Yamaha Powered Subwoofer DXS15XLF 15″ 1600W 136dB SPL – Black

Yamaha

AED 6,552 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: DXS15XLF Categories: , , Brand:

The black Yamaha DXS15XLF is a powered subwoofer featuring a 1600W Class-D amplifier and a 15-inch woofer, delivering a frequency range of 33 to 150 Hz (-10 dB) and a peak SPL of 136 dB, making it ideal for enhancing the low frequencies of DZR-series powered loudspeakers.

Description

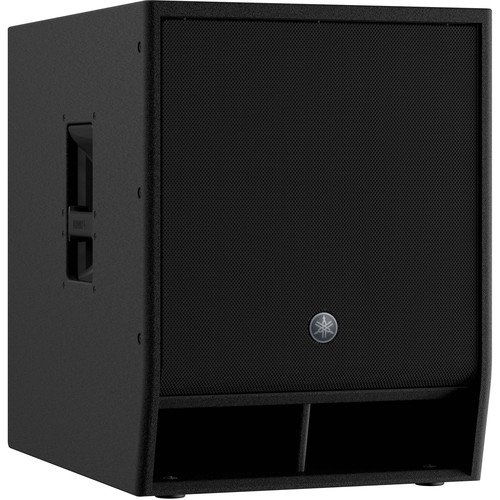

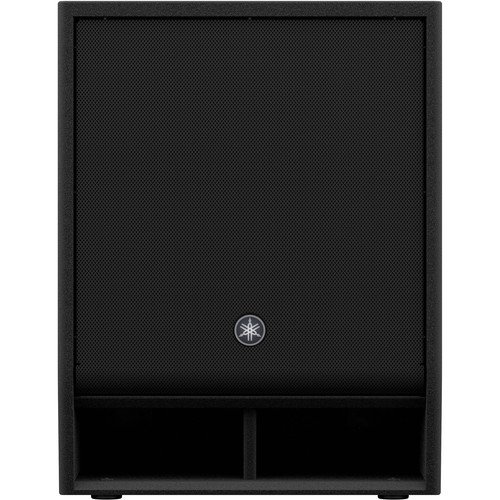

Yamaha DXS15XLF Powered Subwoofer

The Yamaha DXS15XLF is a powerful 15″ subwoofer designed to extend the low-frequency range of full-range speakers, making it an ideal addition to the DZR-series loudspeakers. With its robust 1600W Class-D amplifier, this subwoofer delivers impressive sound clarity and powerful bass frequencies, ranging from 33 Hz to 150 Hz, with a maximum SPL of 136 dB. Built to last, the DXS15XLF features a durable plywood cabinet coated with premium grade Polyurea.

Key Features

  • High-efficiency 1600W Class-D amplifier

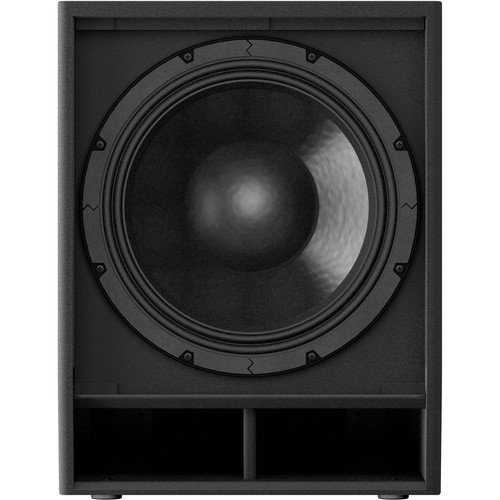

  • 15″ woofer with a 4″ voice coil
  • Frequency range: 33 Hz to 150 Hz
  • Maximum SPL: 136 dB
  • Lightweight, durable plywood cabinet with Polyurea coating
  • On-board DSP for optimized performance and protection
  • Flexible input/output options with combo XLR-1/4″ inputs
  • Multiple modes for tailored sound: Normal, Boost, Xtended LF, Cardioid
  • Optional accessories: speaker cover (SPCVR-DXS15X) and wheel kit (SPW-1)

Specifications

Specification Details
Configuration Active Subwoofer
Enclosure Type Bass-Reflex Subwoofer
Total Power Capacity 1600 W Peak, 1200 W RMS
Amplifier Class Class-D
LF Driver 1 x 15″ / 381 mm Woofer
Voice Coil 4″ / 101.6 mm
Magnet Ferrite
Frequency Range 33 Hz to 150 Hz (-10 dB)
Maximum SPL 136 dB
Max Input Level Line Input: +24 dBu
I/O Impedance Input: 20 Kilohms

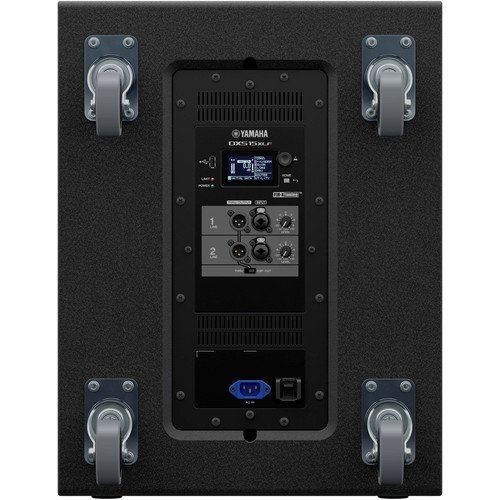

Audio I/O 2 x Combo XLR-1/4″ TRS Female Balanced/Unbalanced Input, 2 x XLR 3-Pin Male Balanced Output
USB 1 x USB-A (External Memory, Host Connection)
Max Sampling Rate 96 kHz
AC Input Power Universal: 100 to 240 VAC, 50 / 60 Hz
AC Power I/O 1 x IEC (Locking)
Power Consumption 40 W (Idle), 180 W (1/8 Power)
Mounting 1 x 1.4″ / 35 mm Pole Socket (Top), 1 x M20 Pole Socket (Top)
Handles 1 Each Side
Cooling Fan (Variable Speed)
Construction Material Plywood
Dimensions 17.7 x 23.1 x 23.6″ / 450 x 587 x 600 mm
Weight 88.2 lb / 40 kg
Package Weight 105 lb
Box Dimensions (LxWxH) 28.75 x 28.25 x 22.25″
