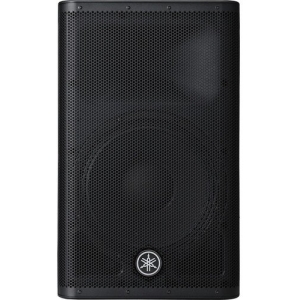

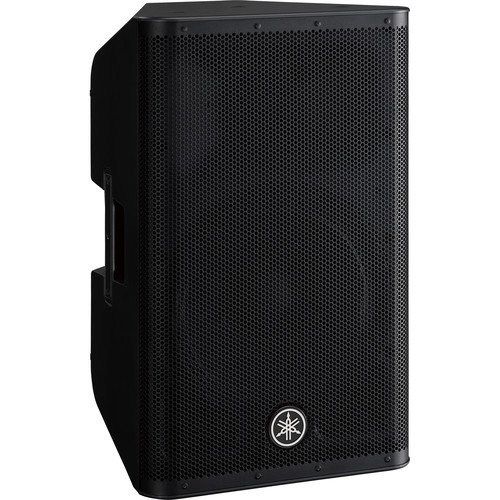

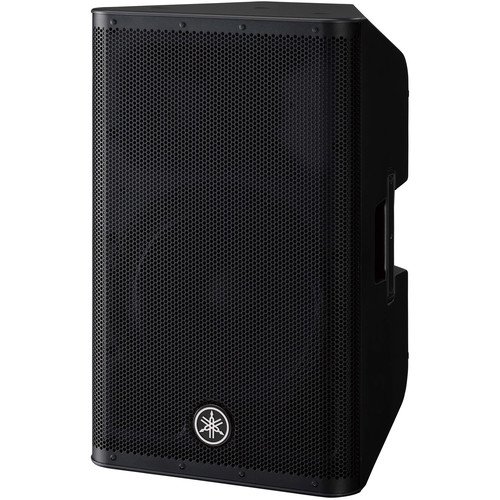

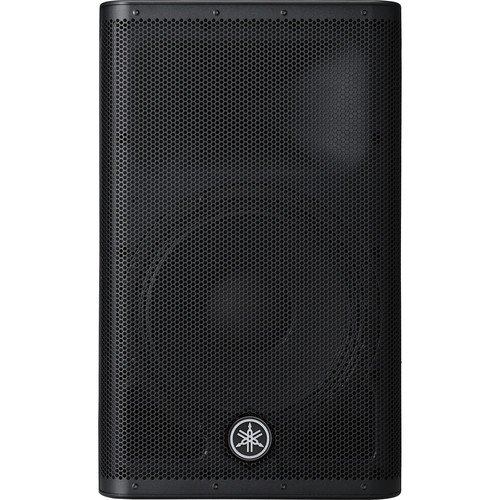

Yamaha DXR12mkII 12-Inch Powered Loudspeaker

The Yamaha DXR12mkII is a high-performance 12″ 1100W 2-Way active loudspeaker, expertly designed to deliver clear and high-output audio for live sound applications. Built with a robust ABS enclosure and bass-reflex design, it ensures enhanced bass performance with minimal turbulence. The integrated DSP utilizes FIR-X tuning for an ultra-smooth crossover, optimizing audio clarity and performance while protecting the driver components.

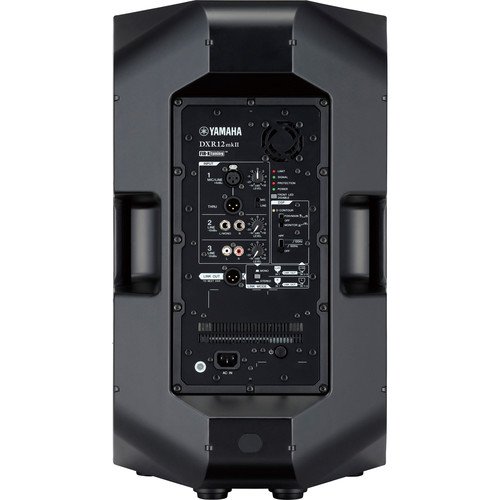

Ideal for various professional sound setups, the speaker’s biamplified Class-D design provides 1100W of peak output power for minimal distortion and dynamic sound. Multiband D-Contour allows the speaker to be used both as a main speaker and floor monitor with tailored sound characteristics. Connectivity options include XLR, 1/4″, and RCA inputs, ensuring compatibility with diverse audio systems and devices.

Mounting Options

The DXR12mkII can be positioned on the floor or on a stage, mounted on a subwoofer with a tilt option, or suspended using M10 fly points. For wall mounting, an optional U-bracket is available. The package includes a power cord.

Key Features

• 12″ powered loudspeaker with 1100W Class-D amplifier
• High-SPL output with wide frequency response (52 Hz to 20 kHz) and powerful bass
• Precision 48-bit DSP processing for clear, high-definition sound
• Durable, compact, and lightweight ABS enclosure
• Flexibility with main/FOH and stage monitor configurations

Specifications
