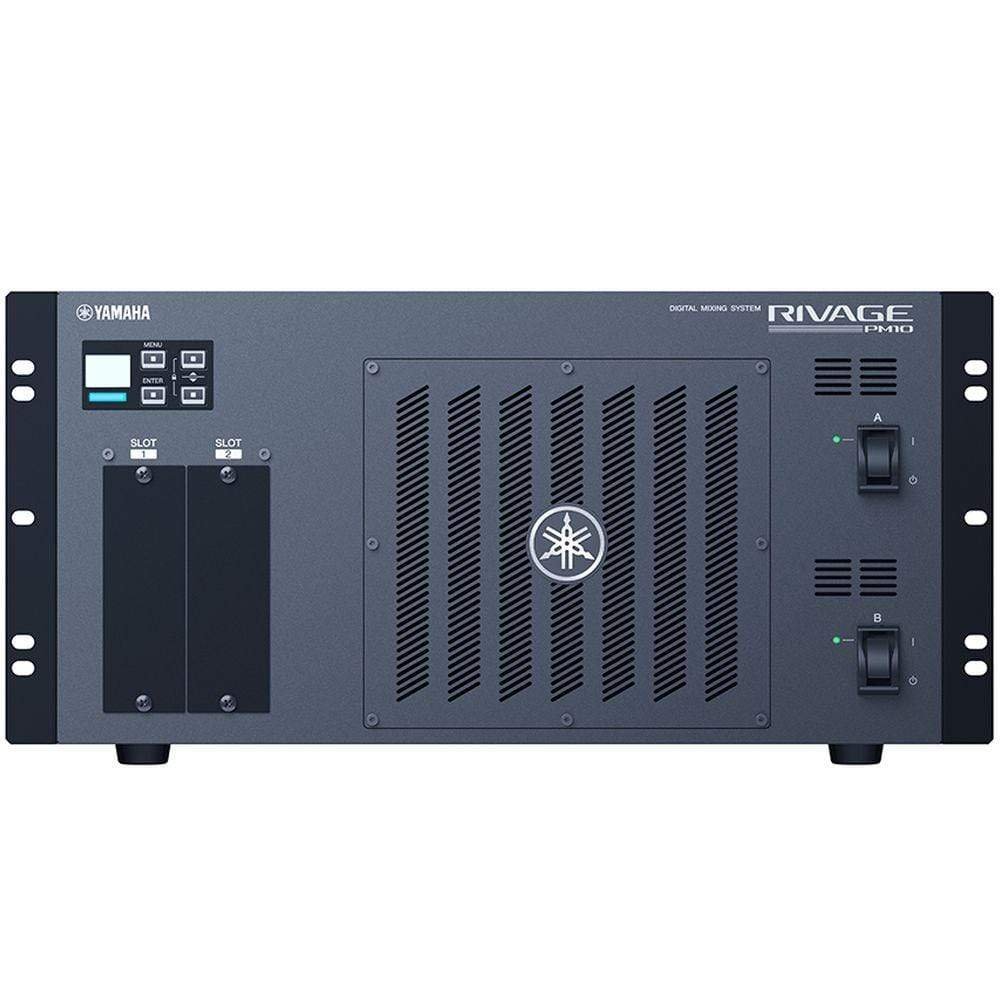

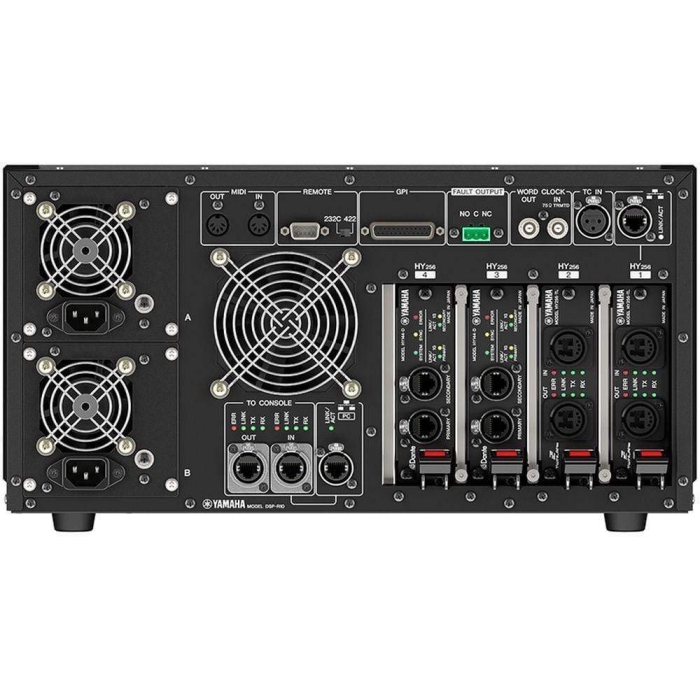

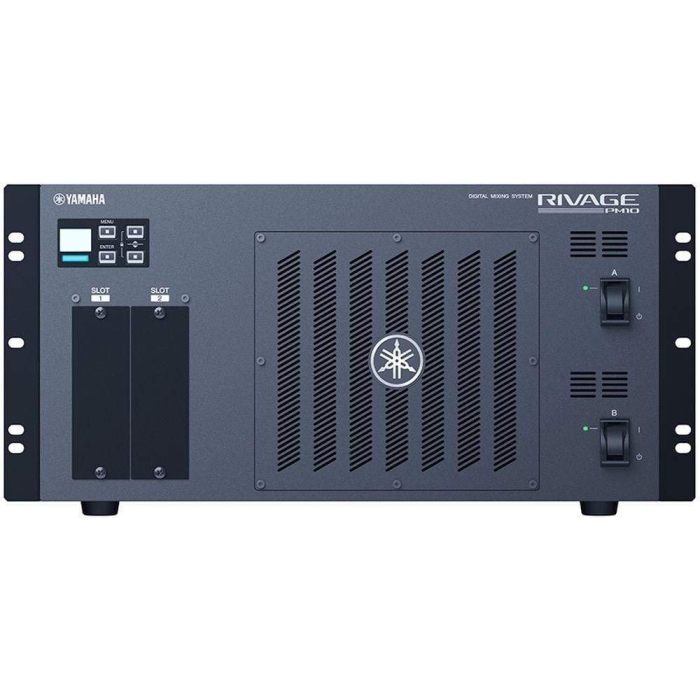

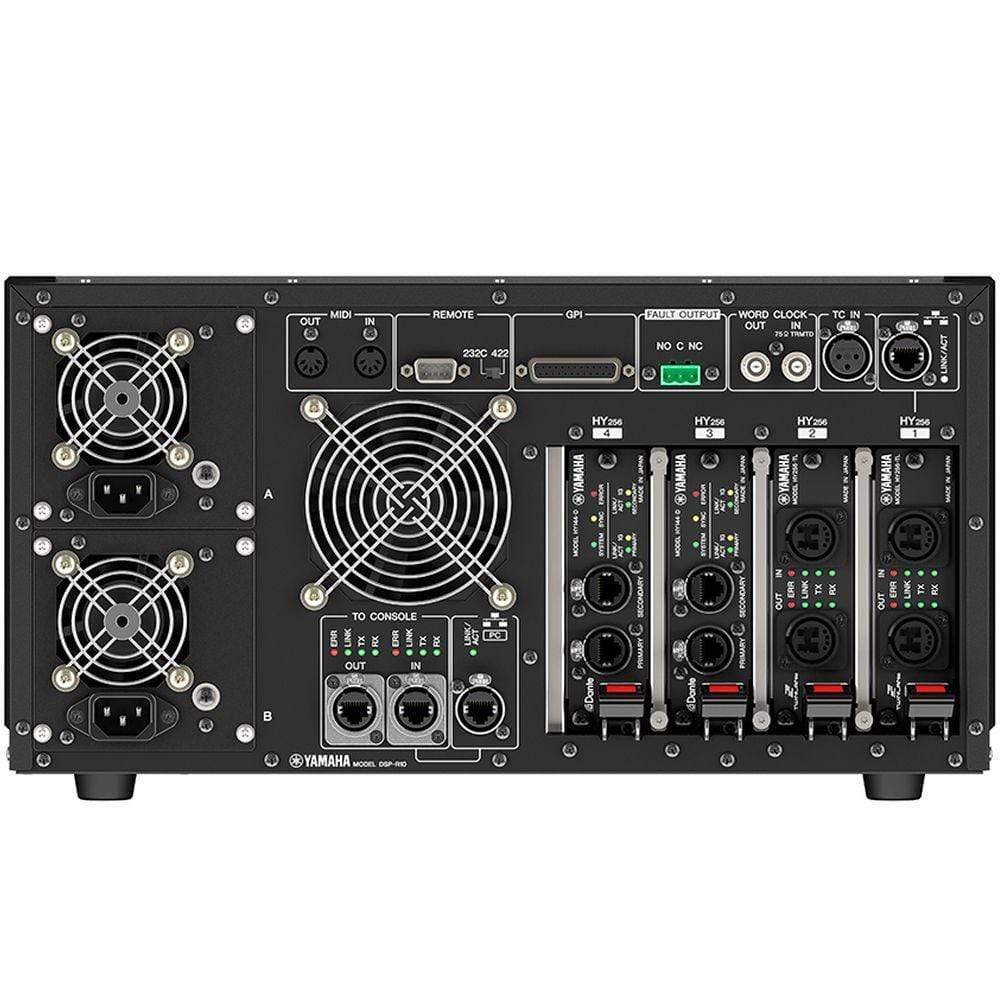

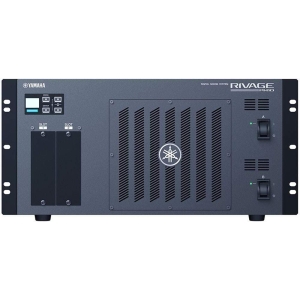

Yamaha Digital Signal Processor DSP-R10 with 144 Input Channels
In stock
- Estimated Delivery: 2–3 business days across the UAE
- Free Shipping & Returns : On all orders over AED 1000
The RIVAGE PM series offers versatile audio solutions with five consoles, two DSP engines, two I/O rack units, and two network protocols, designed to be combined for various application scales and budget needs.
Description
Yamaha RIVAGE PM Series Digital Mixing System
The Yamaha RIVAGE PM series is a comprehensive system offering exceptional flexibility and advanced features for professional audio mixing applications. The series includes five consoles, two DSP engines, and versatile I/O rack units that can be customized to meet various scale and budget requirements. The user-friendly interface across all units ensures that engineers can effortlessly switch between different RIVAGE PM consoles with minimal learning curve.
Main Features:
- Processes digital audio signals for up to 144 input, 72 MIX, 36 MATRIX, and 2 STEREO channels.
- Equipped with four HY card slots, enabling transmission and reception of up to 256 ins/outs of digital audio signals/control signals.
- Supports multiple audio formats with the inclusion of two Mini-YGDAI slots.
- Built-in dual redundant power supply for reliable performance.
Specifications:
| Specification | Details |
|---|---|
| Input Mixing Channels | 144 mono |
| Mix Buses | 72 |
| Matrices | 36 (Input to Matrix supported) |
| Stereo Buses | 2 |
| Mono Buses | 1 |
| Cue Bus | 2 |
| Analog Input | XLR: 8 |
| Analog Output | XLR: 8 |
| Expansion Slots | HY Slots: 4, MY Slots: 2 |
| Digital In | AES/EBU: 4 |
| Digital Out | AES/EBU: 4 |
| GPI | IN (D-Sub): 8, Out (D-Sub): 8 |
| Word Clock I/O | In / Out |
| MIDI I/O | In / Out |
| USB | File: 4, 2 Track Rec/Play: 1 |
| External Redundant PSU | Built-in dual power supply |
| Meter Bridge | On screen |
| Ethernet | Yes |
| Talkback In | Yes |
| Video Out | Yes |
| TC In | Yes |
| Fault Output | Yes |
| Phones | 2 |
| AC Inlet | 2 (V-Lock Type) |
| Number of Scenes | 1000 |
| Recall Safe | Yes |
| Focus Recall | Yes |
| Fade Time | Yes (0s ~ 60s) |
| Preview | Yes (V2.0 or later) |
| Selective Load / Save | Yes (V1.5 or later) |
| Global Paste | Yes (V1.2 or later) |
| Event List | Yes (V2.0 or later with timecode trigger) |
| Overlay | Yes (V1.2 or later) |
| Isolate | Yes |
| Tactile Control Keys | Yes |
| Power Consumption | 190W |
| Dimensions (WxHxD) | 480 x 232 x 490.8mm (18.9″ x 9.1″ x 19.3″) (5U rack size) |
| Net Weight | 20 kg (44 lbs) |
