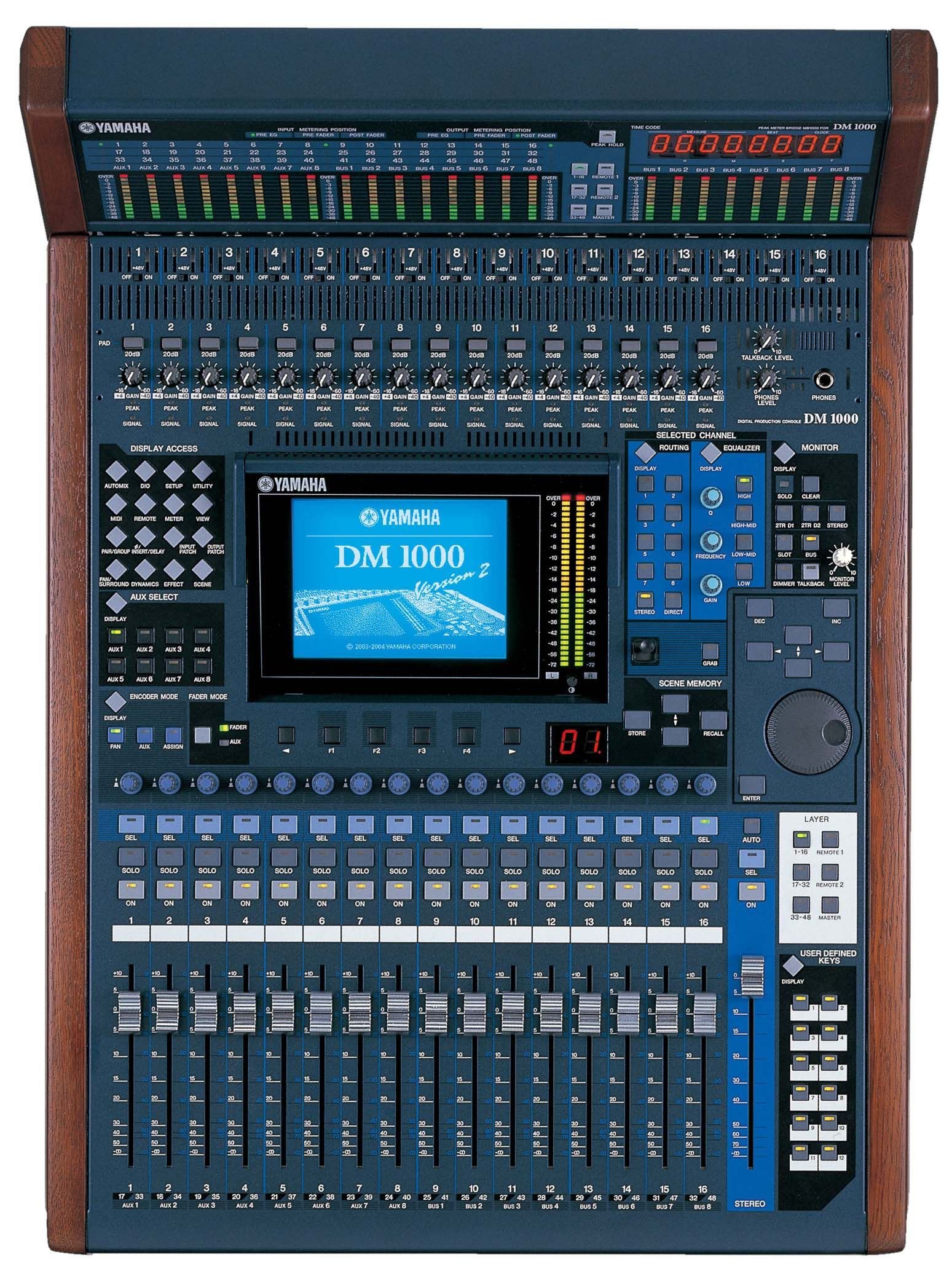

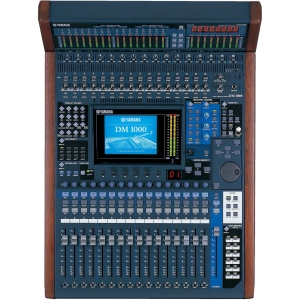

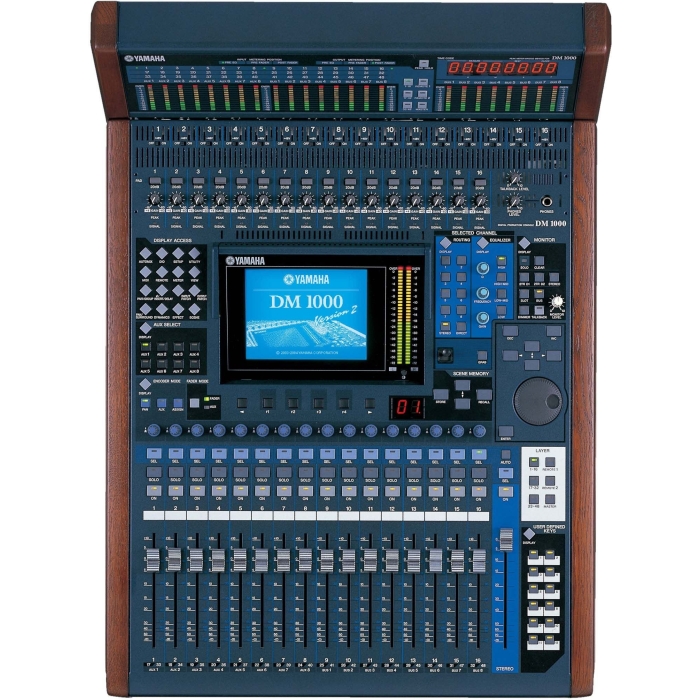

Yamaha DM1000 VCM v2 48-Channel Digital Mixer

The Yamaha DM 1000 VCM 48-channel digital mixer is a high-performance production console featuring integration with Nuendo and Pro Tools, multi-channel digital broadcast capabilities, analog-modeled plug-ins, REV-X reverb processors, ultra-realistic iSSP surround field technology, all in 24-bit/96kHz resolution, and approved under the THX pm3 surround standard.
- Estimated Delivery: 2–3 business days across the UAE
- Free Shipping & Returns : On all orders over AED 1000
Description
Yamaha DM 1000 VCM 48-Channel Digital Mixer
The Yamaha DM 1000 VCM is a state-of-the-art digital mixer designed to meet the high demands of modern audio production. With its 48-channel capacity, seamless integration with major DAWs like Nuendo and Pro Tools, and extensive digital broadcast capabilities, this mixer is perfect for both studio and live sound environments. Experience superior sound quality through its 24-bit/96kHz resolution, analog-modeled plug-ins, and advanced iSSP surround field technology. Recognized under the THX pm3 standard, the DM 1000 VCM is a leading choice for high-quality surround-sound media, broadcast, and post-production facilities.
Features:
- 24-bit/96kHz resolution for pristine audio
- 48-input and 18 bus capacity for flexible mixing
- Advanced channel functions with dynamic control and patching
- Diverse I/O options with 2 mini-YGDAI slots
- Includes 4 internal processors for comprehensive multi-effects
- Touch-sensitive 100mm motor faders for intuitive interfacing
- Efficient workflow with Scene Memory and Automix functions
- Enhanced mixing with versatile Pairing and Grouping functions
- Sophisticated DAW integration features
- Robust surround capabilities for post-production
- VCM technology for authentic analog gear simulation
- iSSP technology for advanced sound field positioning
- REV-X reverb processors for high-quality reverb effects
Specifications:
Specification | Details |
---|---|
Type | Digital |
Channels | 48 |
Inputs – Mic Preamps | 16 x XLR |
Phantom Power | 16 Channels |
Inputs – Line | 4 x XLR (Omni) |
Outputs – Main | 12 x XLR (Omni) |
Inputs – Digital | 1 x XLR (AES/EBU), 1 x Coax, 1 x MIDI |
Outputs – Digital | 1 x XLR (AES/EBU), 1 x Coax, 1 x MIDI |
Aux Sends | 8 x Pre, 8 x Post |
Busses/Groups | 8 x Bus Outs, 8 x Aux Sends |
Inserts | Yes |
Talkback | Yes |
Headphones | 1 x 1/4″ |
USB | 1 x Type B |
Computer Connectivity | USB (16 x 16) |
I/O Expansion Slots | 2 x Slots |
Faders | 17 x 100mm Throw |
EQ Bands | 4-band |
Effects | Yes |
DAW Control | Yes |
Rackmountable | Yes |
Height | 7.875″ |
Depth | 23.06″ |
Width | 17.19″ |
Weight | 44.1 lbs |
Manufacturer Part Number | DM1000VCM |
