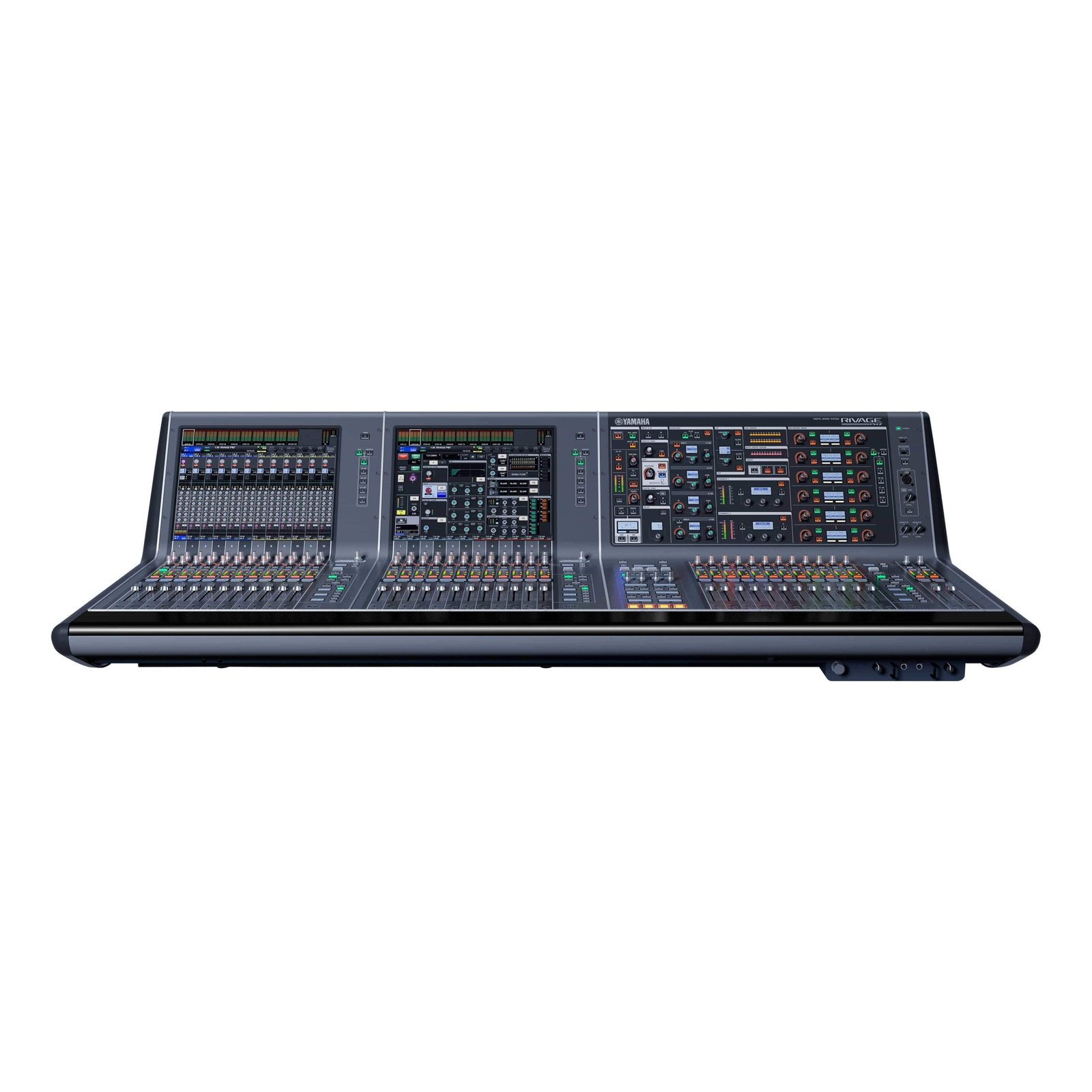

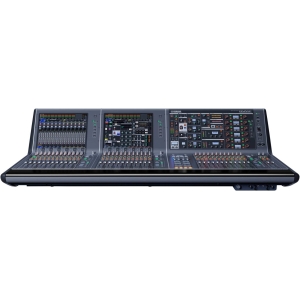

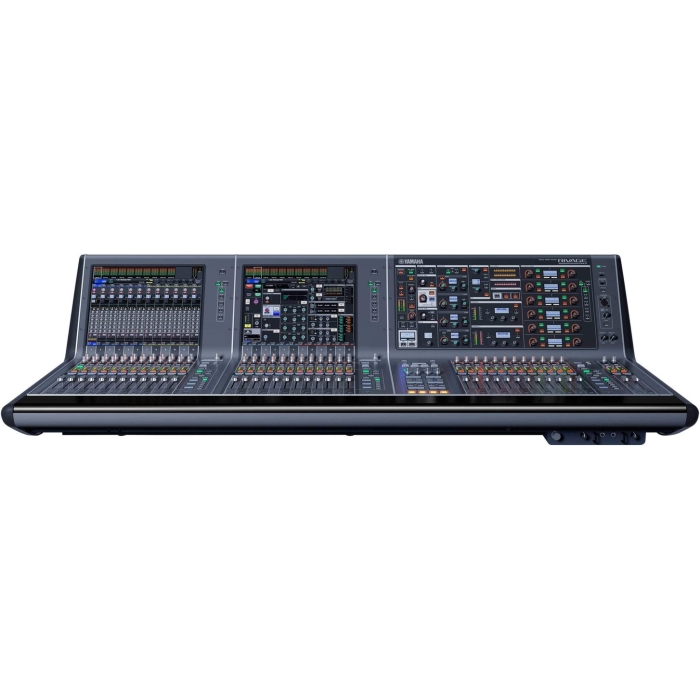

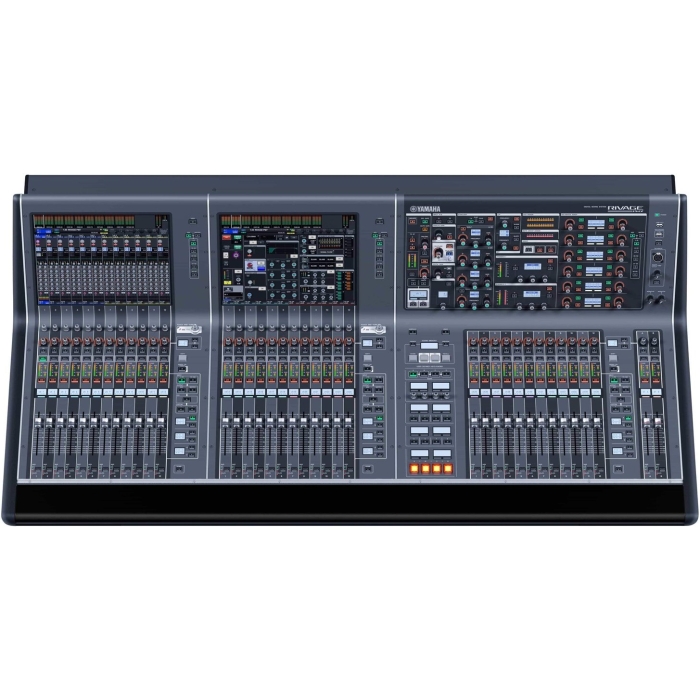

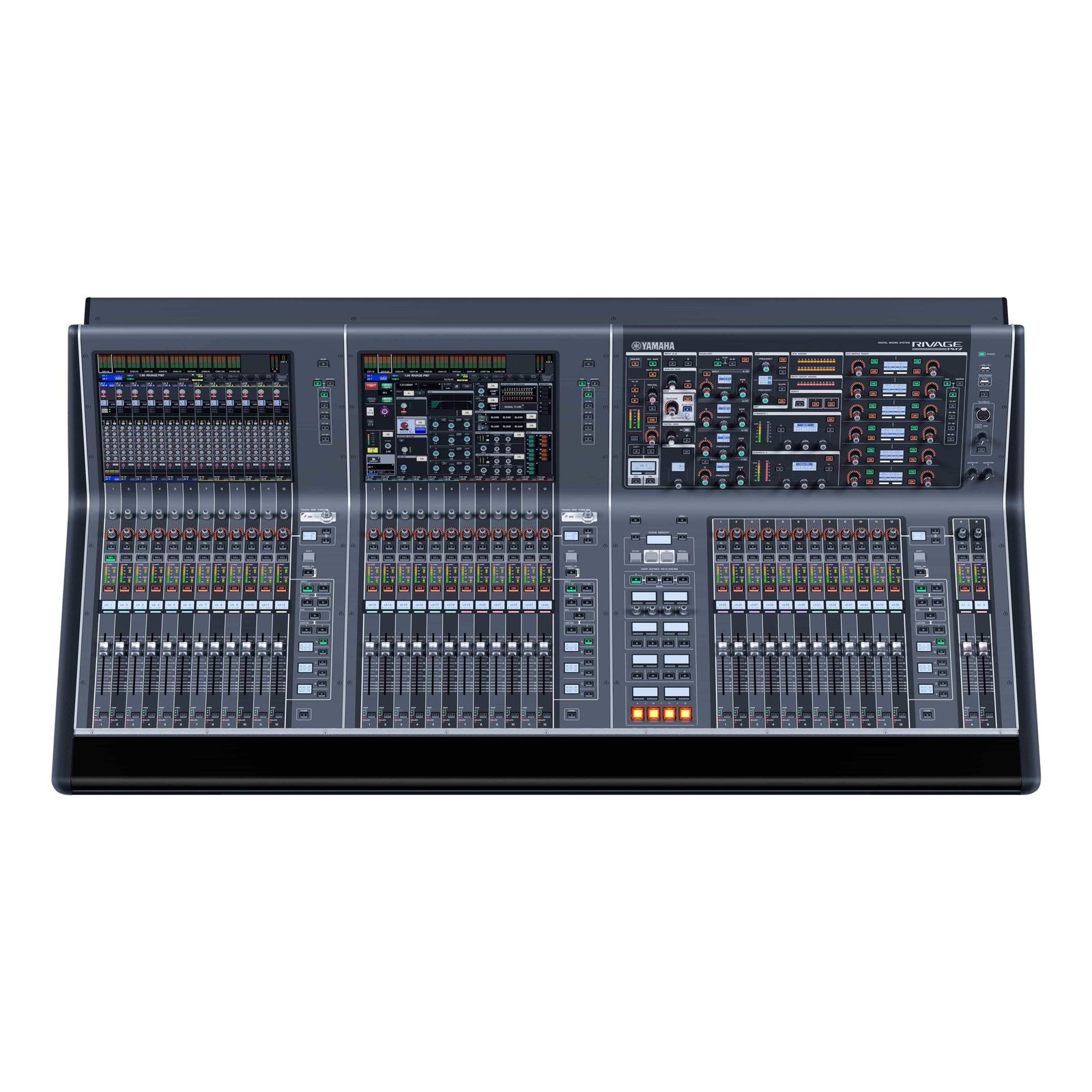

Product Overview: CSD-R7 Digital Mixing Console

The CSD-R7 digital mixing console is the core component of the RIVAGE PM7 system, offering advanced 96 kHz processing, 120 monaural inputs, and a versatile array of mixing buses including 60 MIX, 24 MATRIX, and 2 STEREO buses. With three 12-fader bays, the console provides flexible setup options, ensuring it meets a wide range of application needs. Dual built-in power supply units enhance the system’s reliability, making it a robust choice for professional audio environments.

This system boasts built-in signal processing for top-tier mixing and effects, requiring additional I/O racks for comprehensive input and output capabilities, along with a dedicated interface card for network connectivity. The compact, portable design mirrors the control layout of the larger RIVAGE PM10 system, ensuring high standards of operation and efficiency.

Features:

• Dual 15″ touch panel displays for intuitive operation
• 38 faders arranged in three 12-fader bays with 2 master faders
• Comprehensive channel parameter controls in the Selected Channel section
• 6 x 2 custom fader banks per bay for personalized setups
• 48 user-defined keys in 4 banks and 16 user-defined knobs in 4 banks
• 2 touch-and-turn knobs for quick adjustments
• Analog I/O with 8 inputs and 8 outputs
• Versatile slot configuration with 3 HY slots and 2 MY slots
• Built-in AES/EBU interfaces with 4 inputs and 4 outputs (with SRC)
• Comprehensive connectivity ports including GPI, Word Clock, MIDI, USB, and Video Out
• Dual redundant power supply for uninterrupted operation

Specifications:
