Description

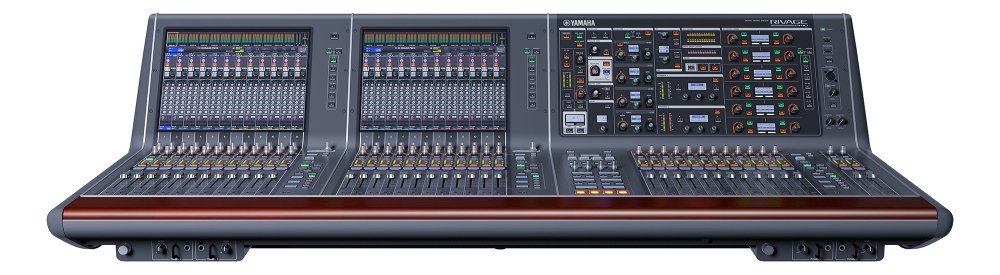

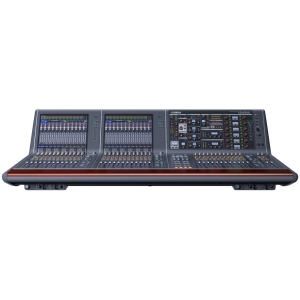

Yamaha RIVAGE PM10 Console
The Yamaha RIVAGE PM10 is a state-of-the-art control surface designed for unparalleled mixing flexibility and precision. Featuring an expansive 15″ touch panel display and 26 faders, this console is engineered for efficient and intuitive operation, making it an indispensable tool for high-end live sound reinforcement and studio environments. Dual-console support provides enhanced control and redundancy, ensuring reliable performance even in the most demanding settings.
Key Features
| Specification |
Details |
| Display |
15″ touch panel |
| Faders |
26 (12+12+2) |
| Selected Channel Section |
Comprehensive channel parameters |
| Custom Fader Banks |
6 x 2 on each bay |
| User Defined Keys |
12 x 4 banks |
| Analog I/O |
8 in / 8 out |
| Slots |
2 MY slots |
| AES/EBU |
4 in / 4 out (with SRC) |
| Power Supply |
Dual redundant power supply built-in |
| Power Consumption |
380W |
| Dimensions (WxHxD) |
1,128 x 417 x 848mm |
| Net Weight |
67 kg |
Mixing Capacity
| Specification |
Details |
| Input Mixing Channels |
144 mono |
| Mix Buses |
72 |
| Matrices |
36 (Input to Matrix supported) |
| Stereo Buses |
2 |
| Mono Buses |
1 |
| Cue Bus |
2 |
Local Connectors
| Specification |
Details |
| Analog Input |
XLR, 8 channels |
| Analog Output |
XLR, 8 channels |
| Expansion Slots |
2 MY slots, 4 HY slots |
| Digital In/Out |
AES/EBU, 4 in/4 out |
<
| GPI |
D-Sub 8 in/8 out |
| Word Clock I/O |
In/Out (DSP-R10), Out only (CS-R10) |
| MIDI I/O |
In/Out |
| USB |
4 regular, 1 for 2-track recording |
| Video Out |
DVI-D |
| Ethernet |
Yes |
