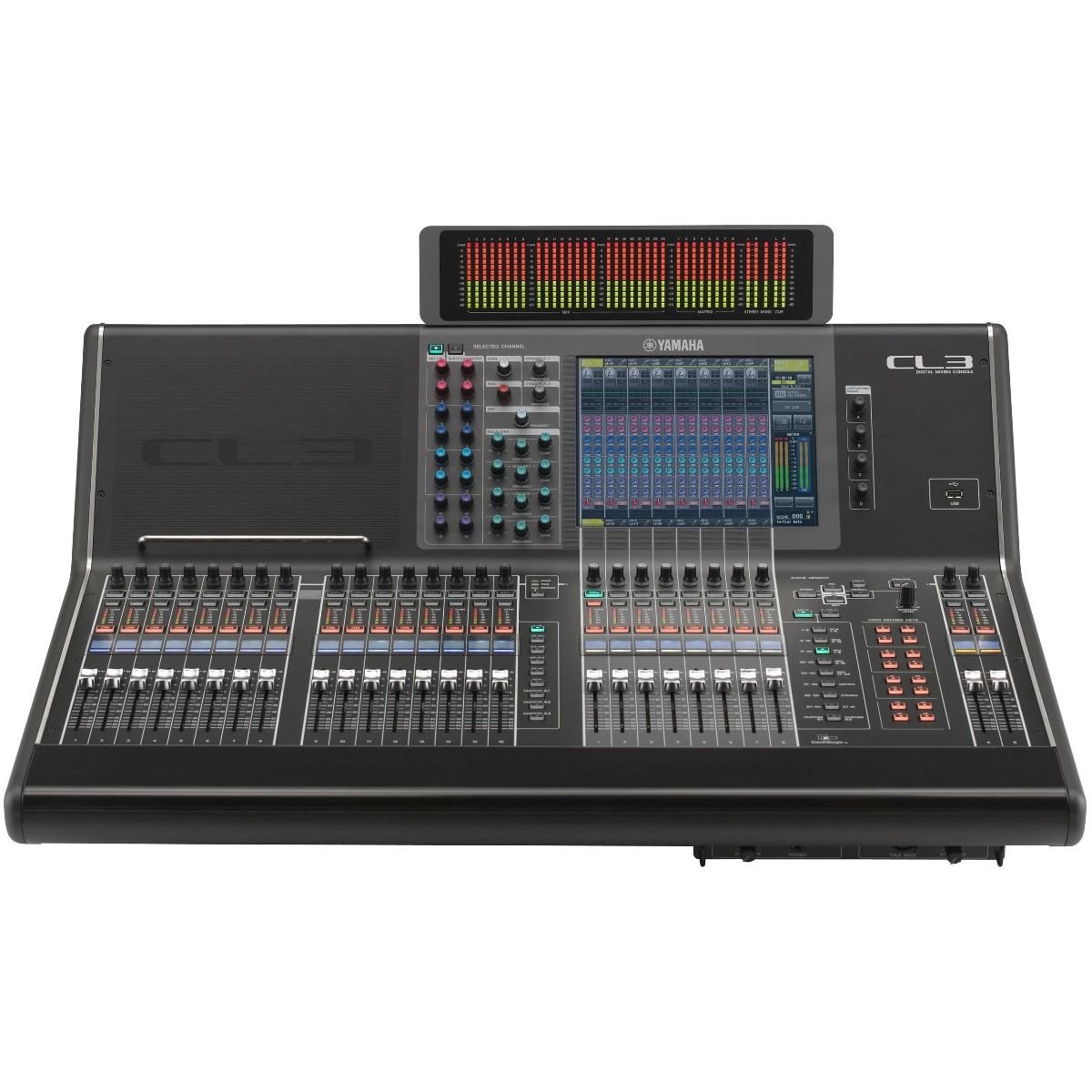

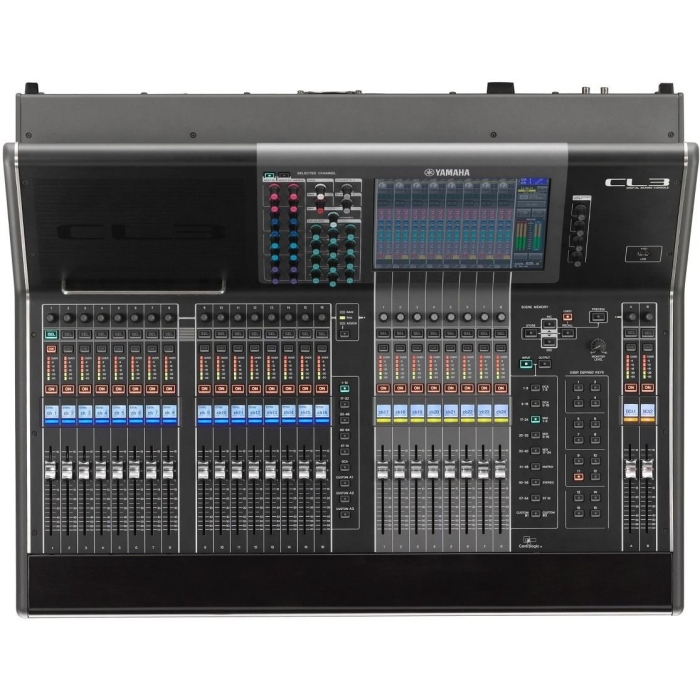

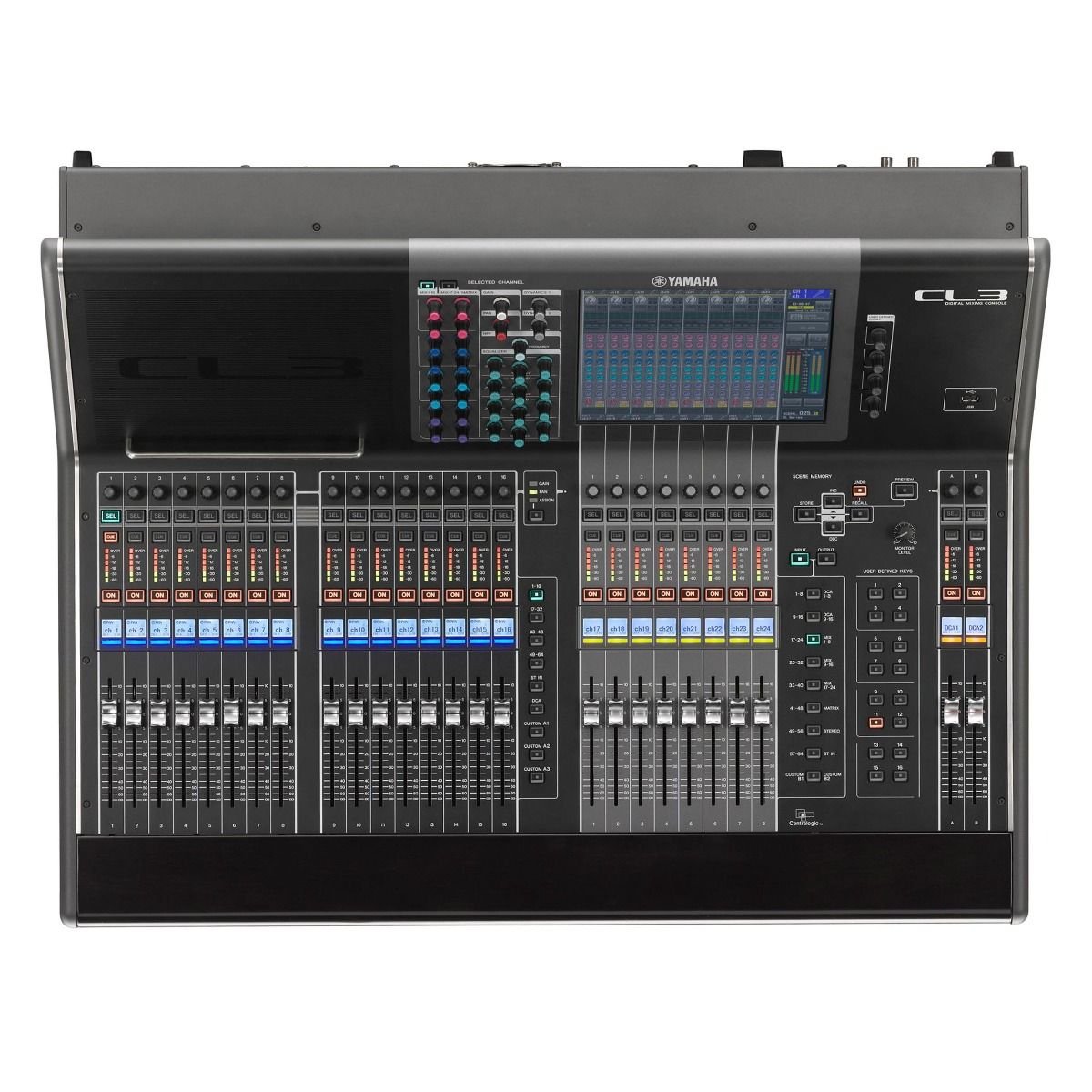

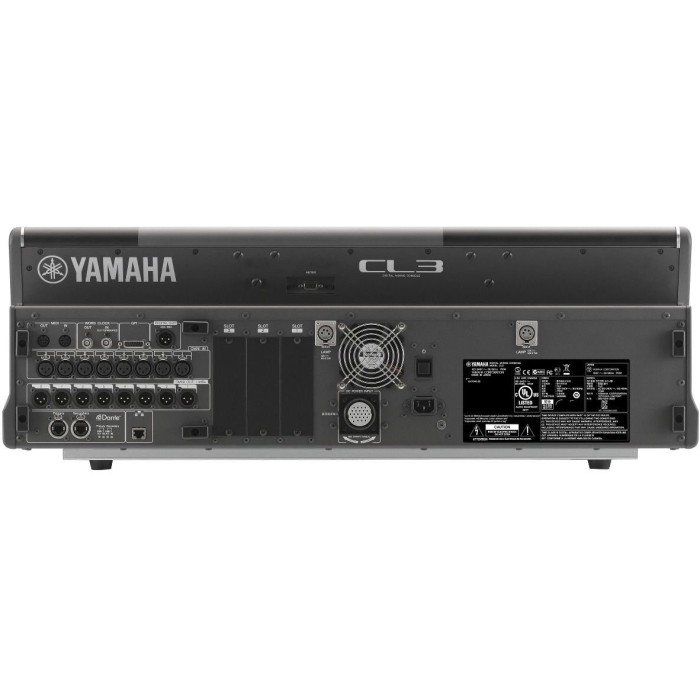

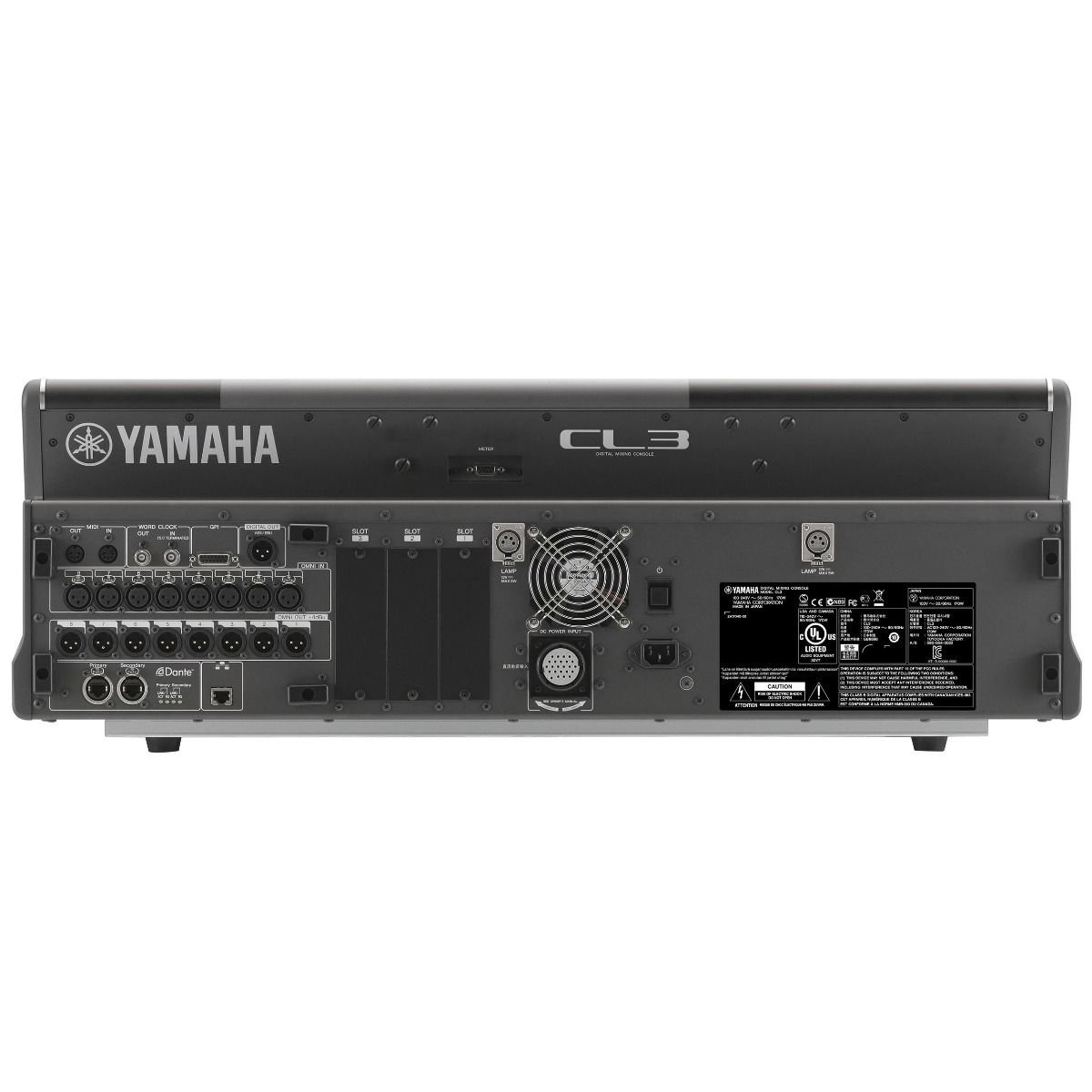

Yamaha CL3 Digital Mixing Console, 64-Channel

Yamaha

AED 111452.25 inc VAT.

The Yamaha CL3 digital mixer, ideal for live sound and broadcasts, offers exceptional sound quality and control, supporting up to 64 mono and eight stereo channels when paired with Rio stage boxes (sold separately). It features 24 channel faders, two master faders, and advanced Virtual Circuitry Modeling by Rupert Neve Designs, including Neve Portico 5033 EQ and 5043 compressor/limiter processors. Additionally, it has built-in Dan Dugan automatic mixing for easy microphone optimization and feedback control.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CL3 Categories: , Brand:

Description

Yamaha CL3 Digital Mixer

The Yamaha CL3 digital mixer is specifically designed for live sound and broadcast applications, offering exceptional sound quality and unparalleled show control. By connecting Rio series stage boxes (sold separately), you can access up to 64 mono and 8 stereo mixable channels, all managed with 24 channel faders and 2 master faders. The system includes built-in Virtual Circuitry Modeling from Rupert Neve Designs, providing access to Neve Portico 5033 EQ and Portico 5043 compressor/limiter processors, along with other remarkable emulations of classic hardware processors. Additionally, the Dan Dugan automatic mixing system enhances microphone performance and combats feedback effectively. The Yamaha CL3 makes world-class sound easily achievable for any operator.

Features:

  • 24-fader digital mixing console
  • 64 mono and 8 stereo mixable channels
  • Connect up to 8 Rio series stage boxes (sold separately) for I/O
  • Touchscreen display for intuitive control over the Centralogic user interface
  • Built-in Dante interface plus 3 MY-card slots for digital expansion
  • Control port for computer control (wired or Wi-Fi)
  • Portico 5033 EQ and Portico 5043 compressor/limiter processors designed by Rupert Neve Designs
  • Dan Dugan automatic mixing system for optimal microphone gain and feedback control
  • Nuendo Live and Dante Virtual Soundcard licenses included

Specifications:

Specification Details
Type Digital
Channels 24 + 2 master faders, 64 mono channel mixing plus 8 stereo channels
Inputs – Mic Preamps 8 x XLR
Phantom Power 8
Outputs – Other 8 x XLR (line out)
Inputs – Digital 2 x RJ-45 (Dante)
Outputs – Digital 2 x RJ-45 (Dante), 1 x XLR (AES/EBU)
Busses/Groups 16 send Mix bus, 8 send Matrix bus
Inserts Internal
Talkback 1 x XLR
MIDI I/O In/Out
Data I/O 1 x D-Sub GPI (15-pin female), 1 x Ethernet
Headphones 1 x 1/4″
USB 1 x USB Type A
Computer Connectivity Ethernet
I/O Expansion Slots 3 x Card slots available (DSP cards or mini-YGDAI cards)
Word Clock In/Out
Faders 26 x 100mm faders
EQ Bands 4-band parametric channel EQ, 31-band Graphic EQ, 15-band flex EQ
Effects Reverbs, Delays, Modulation, Premium Rack compressor modeling and more
DAW Control Yes (via Dante)
Height 11.75″
Depth 26.25″
Width 33.12″
Weight 63.9 lbs.
Manufacturer Part Number CL3
