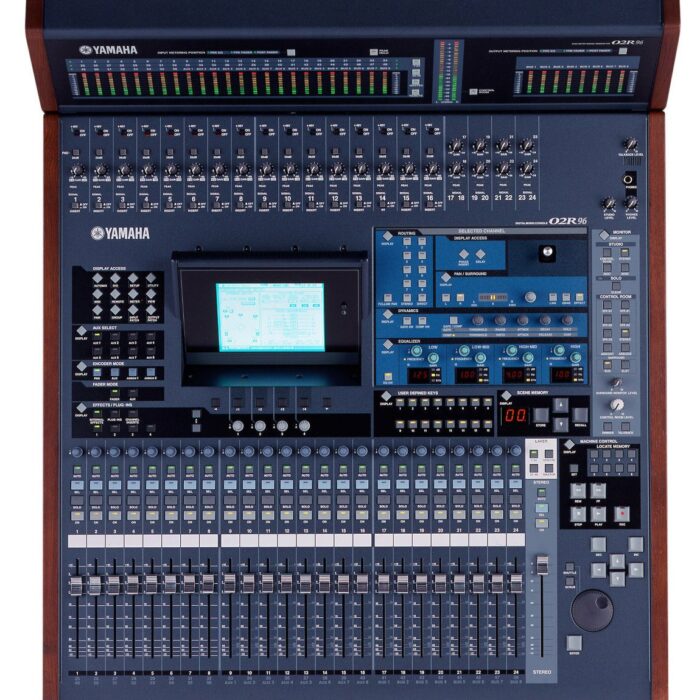

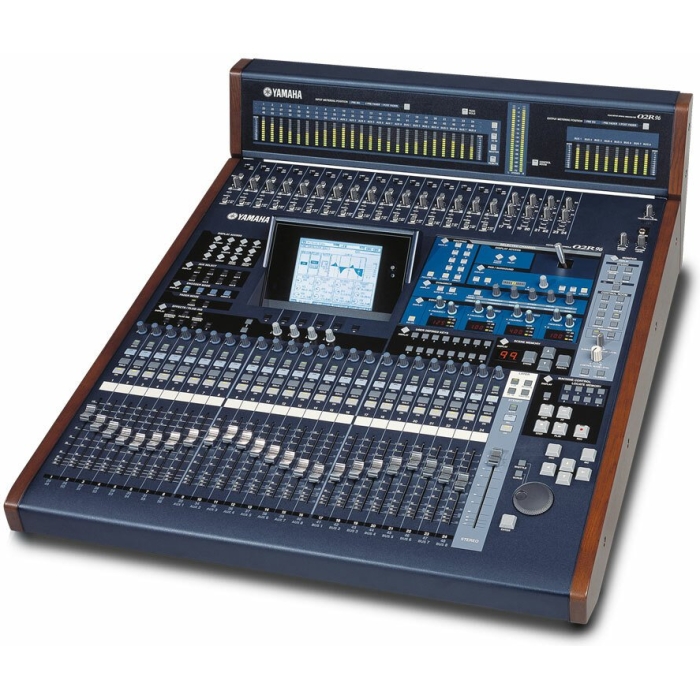

Yamaha 02R96VCM Digital Recording Console 24-Bit 96kHz

Yamaha

AED 60459 inc VAT.

The 02R96VCM, part of Yamaha’s esteemed 02R digital mixing console series, offers enhanced audio production capabilities with Version 2 software features, including advanced effects, improved surround monitoring, and seamless DAW integration. It also includes Virtual Circuitry Modeling digital effects and dynamics, previously available as optional add-ons.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: 02R96VCM Categories: , Brand:

Description

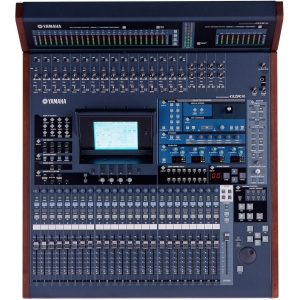

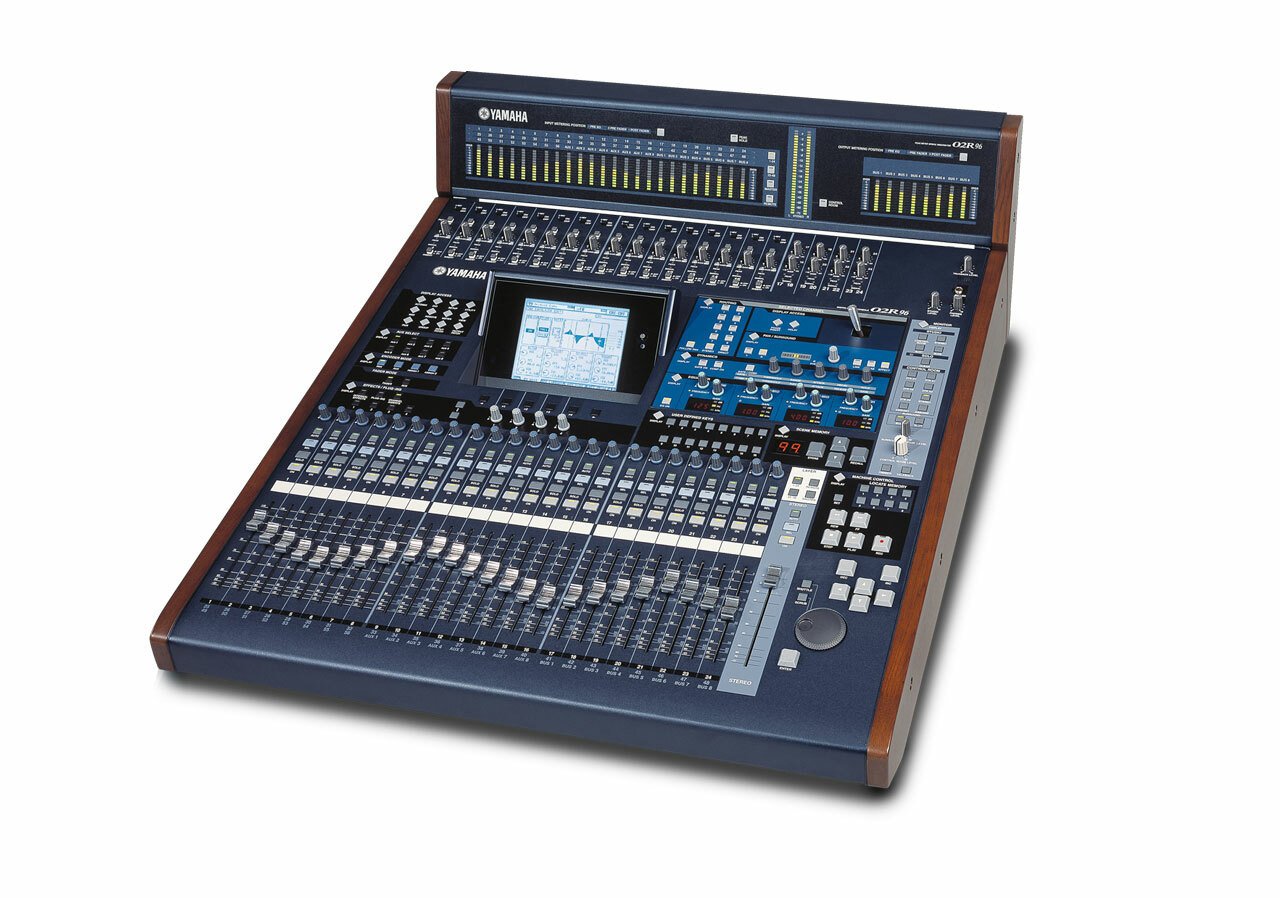

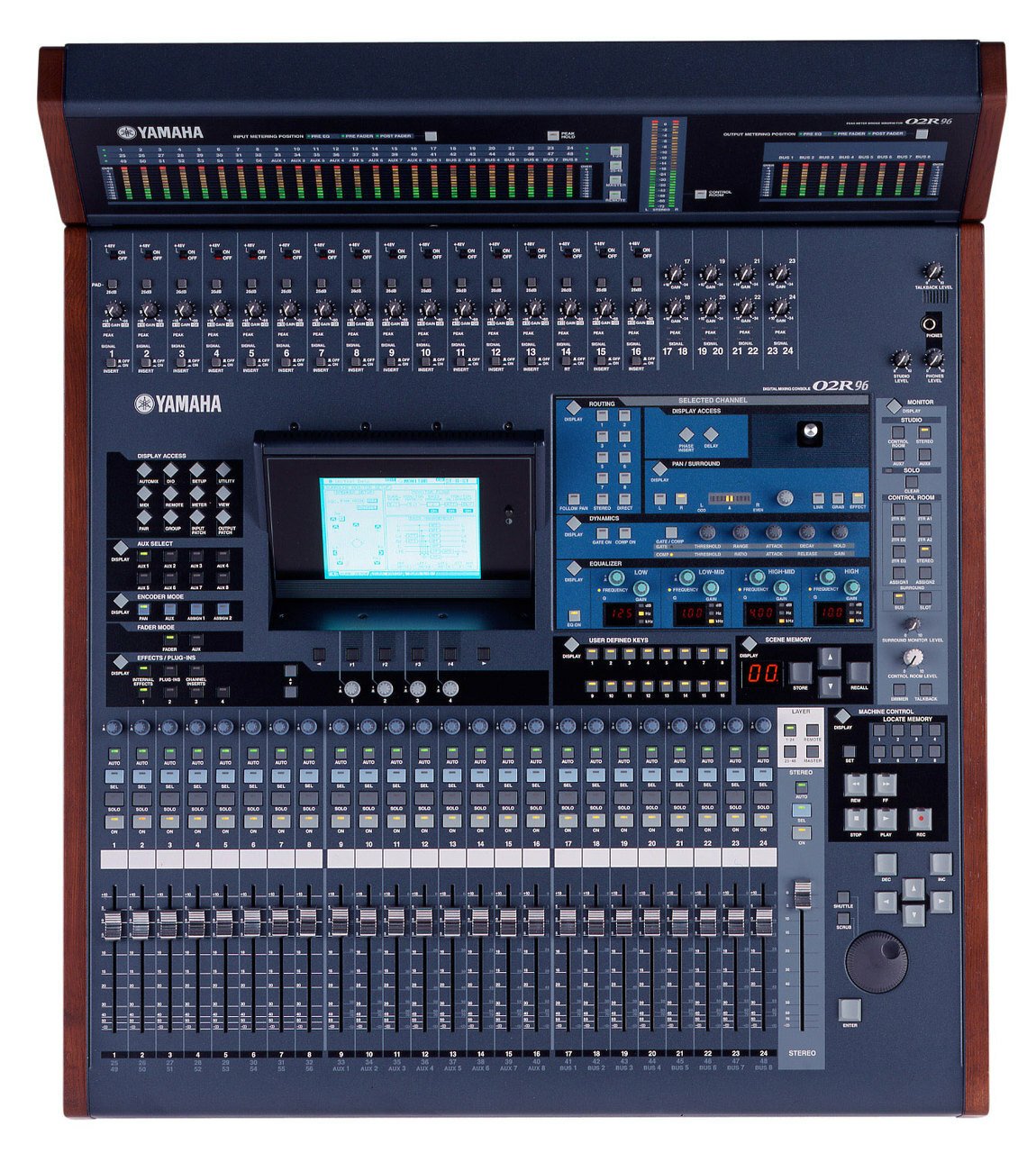

Yamaha 02R96VCM Digital Mixing Console

Discover the advanced capabilities of the Yamaha 02R96VCM, the latest evolution in the renowned 02R series of digital mixing consoles. Trusted by audio professionals, the 02R96VCM integrates all the functionalities of Version 2 software, boasting enhanced effects, superior surround monitoring, and seamless DAW integration with software such as Nuendo and Pro Tools. Additionally, it features select Virtual Circuitry Modeling (VCM) digital effects and dynamics, previously available only as optional add-ons.

Key Features:

  • Proven standard in digital mixing
  • Advanced surround sound capabilities
  • Touch-sensitive 100mm motorized faders
  • Includes circuit-modeled effects and EQs
  • Interactive spatial sound processing FX

Specifications:

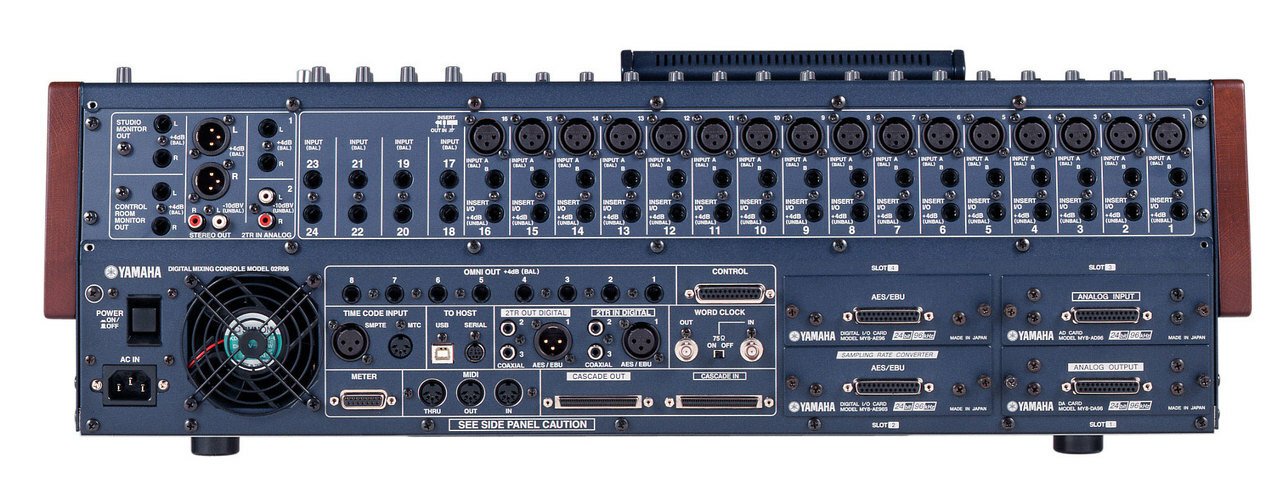

Total # Of Inputs 56 Total inputs: 24 balanced 1/4″ TRS, 16 XLR inputs and preamps, and up to 32 additional inputs via optional YGDAI expansion cards
Mic/Line Inputs 24 balanced 1/4″ TRS line, 16 XLR balanced mic/line switchable inputs
Main/Monitor Out Stereo out via balanced XLR and RCA connectors; studio and control room monitor out via balanced 1/4″ TRS connectors
AUX Sends 8 AUX sends: internal AUX sends pre-routed to internal processors, available for external processors via 1/4″ Phone “Omni Out” jacks
AUX Returns Return effects from external processors via any input channel or optional I/O card inputs
Inserts 16 MIC/LINE inserts on channels 1-16 with 1/4″ Phone jack connector
Digital I/O Options
  • MY8AD96 – 8-channel line-level analog input card
  • MY8DA96 – 8-channel analog output card
  • MY8AE96 – 8-channel AES/EBU digital format I/O
  • MY8AE96S – 8-channel AES/EBU with sample rate conversion
  • MY8AT – 8-channel ADAT digital format I/O
  • MY8TD – 8-channel TDIF digital format I/O
  • MY8AD24 – 8-channel 24-bit analog inputs on balanced 1/4″ connectors
  • MY4AD – 4-channel 24-bit analog inputs on XLR connectors
  • MY4DA – 4-channel 20-bit analog outputs on XLR connectors
  • AP8DA – 8-channel Apogee 24-bit analog outputs
  • AP8AD – 8-channel Apogee 24-bit analog inputs
2 Trk Master I/O L/R XLR balanced and RCA unbalanced outputs; L/R 1/4″ TRS and RCA unbalanced inputs
Stereo Digital I/O AES/EBU and S/PDIF for both input and output
Word Clock I/O BNC connectors TTL / 75 ohms
RS/To Host Port RS422 – D-SUB Half Pitch Connector 68pin (female)
MIDI Ports MIDI IN, OUT, THRU with 5pin Din connectors
EQ Section 4-band parametric EQ on all 56 channels, switchable between Type I and Type II
Trim/Gain Range 44dB on MIC/LINE inputs 1-16, 44dB on LINE inputs 17/18 through 23/24
Solo/Mute Solo and mute functionality on every input channel, AUX send, bus, and stereo output
Channel Level Control 100mm motor-driven touch-sensitive faders
Phantom Power 48V Phantom power on inputs 1-16
Metering Backlit LCD display with optional MB02R96 Meter Bridge
Internal Signal Processing 32-bit internal processing
Sampling Frequency Internal: 1kHz, 48kHz, 88.2kHz, 96kHz; External: 44.1kHz-96kHz with slight deviations
Memory
  • Scene = 99 locations
  • Ch Library = 127 locations
  • EQ Library = 160 locations
  • Compression Library = 93 locations
  • Gate Library = 124 locations
  • Effect Library = 76 locations
  • Surround Monitor Library = 32 locations
  • Input Patch Library = 32 locations
  • Output Patch Library = 32 locations
  • Bus to Stereo Library = 32 locations
AD/DA Conversion 24-bit 96kHz with 105dB dynamic range
Frequency Response Fs=48kHz: 20Hz-20kHz; Fs=96kHz: 20Hz-40kHz
Total Harmonic Distortion (THD) Fs=48(96)kHz 0.01% at 1kHz
Signal-to-Noise Ratio -128dB (EIN), -92dB (Residual Output Noise)
Power 120V AC, 60Hz for USA/Canada; 230V AC, 50Hz for general use, 200W
Dimensions 27.56 x 13.86 x 27.44 inches with meter bridge and side panels
Weight 34kg (75 lbs)
