Line Array Speakers

Turbosound TLX43 Compact Dual 2-Way 4″ Line Array Element

Turbosound

AED 2770.95 inc VAT.

The 2-way full range TLX43 is a compact, biamplified dual 4-inch 600-Watt line array element ideal for speech and music reinforcement in various settings, including fixed installations and portable systems. Designed to integrate with LAKE DSP and LAB GRUPPEN amplification, it ensures optimal front-of-house performance and adaptability to different venue needs.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: TLX43 Categories: , , Brand:

Description

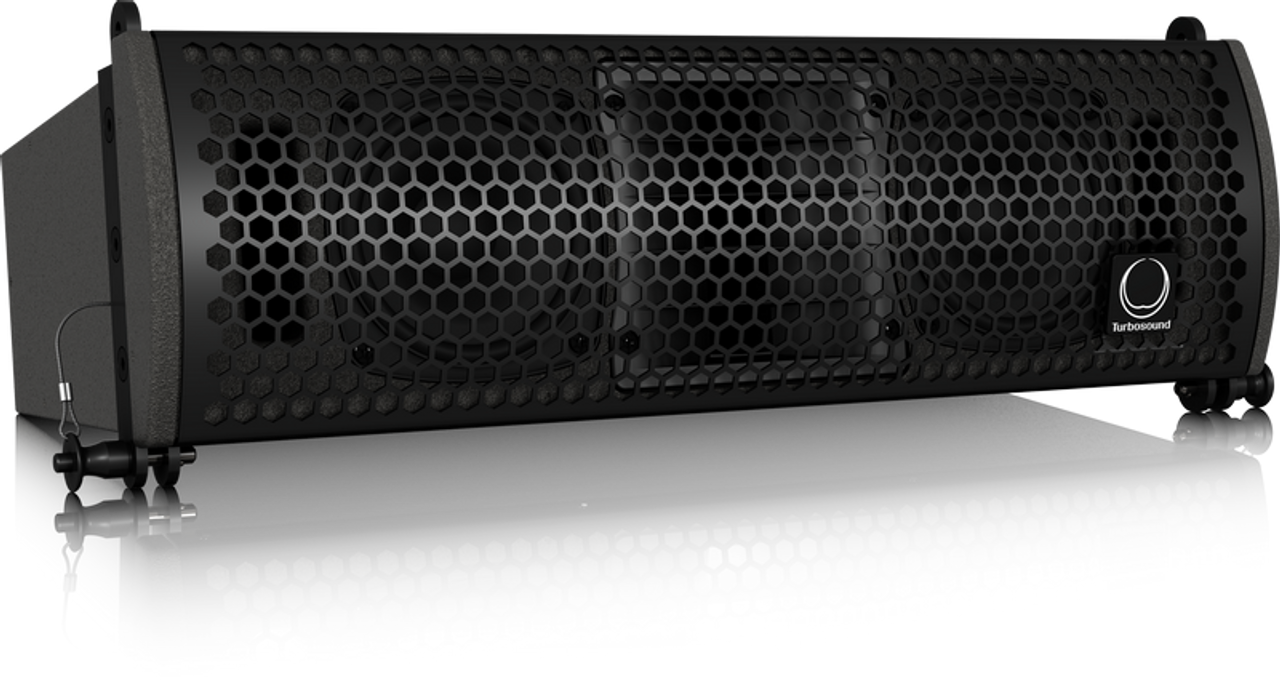

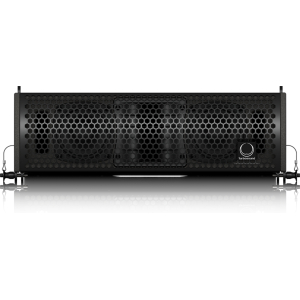

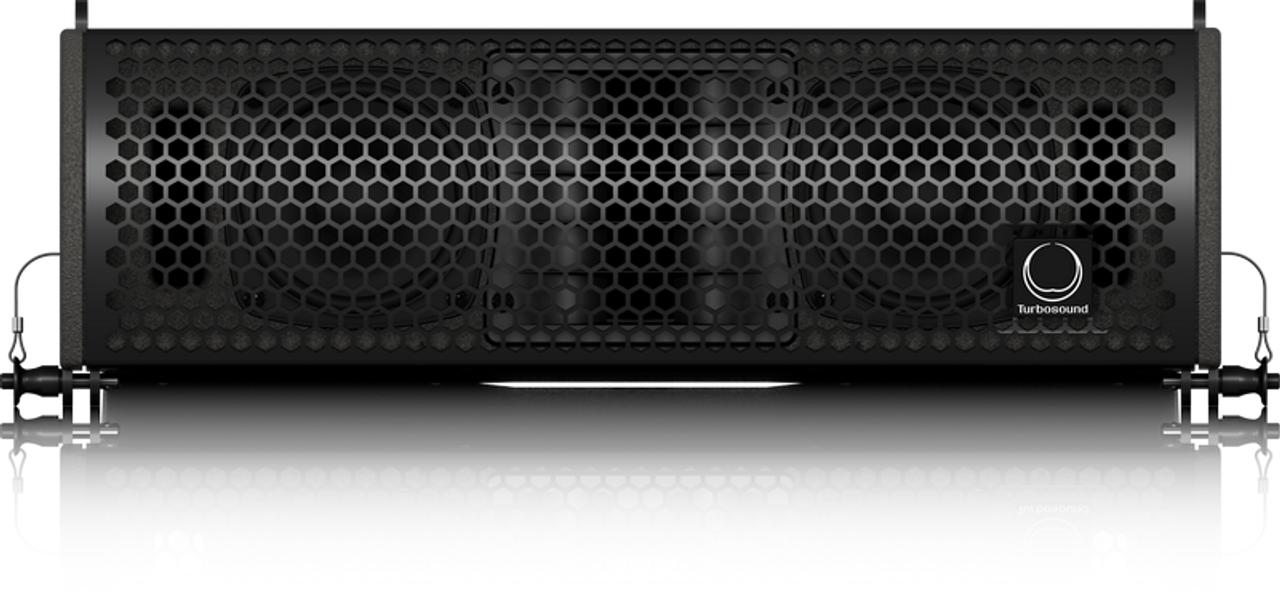

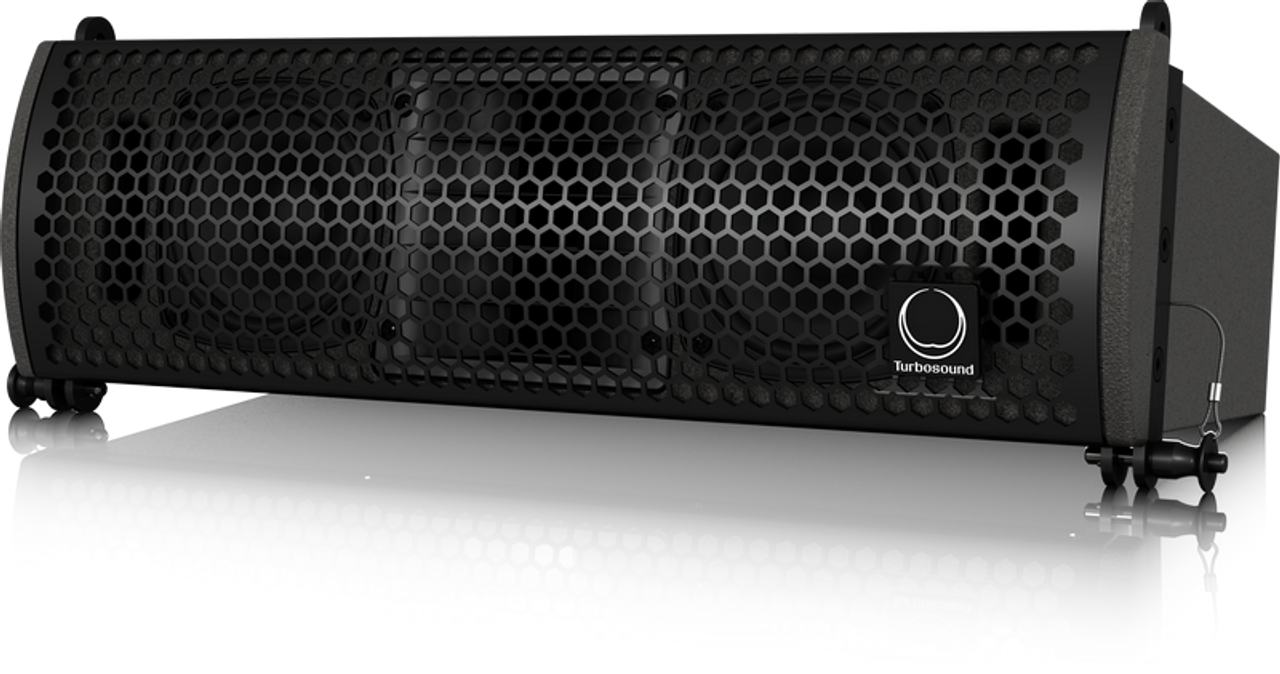

TLX43 2-Way Full Range Compact Biamplified Line Array Element

The TLX43 is a versatile dual 4″ 600-Watt line array element ideal for diverse speech and music sound reinforcement needs, including fixed installation, portable, and touring audio systems. Integrating seamlessly with LAKE DSP and LAB GRUPPEN amplification, the TLX43 ensures top-notch FOH performance and adaptability to various venues.

Key Features

  • Compact design suitable for both portable and fixed installations
  • Handles 150 Watts continuous power and peaks at 600 Watts
  • Perfect for FOH, center cluster, offstage fill, stereo in-fill, or distributed fill applications
  • Dual Kevlar cone 4″ low-frequency drivers
  • Titanium dome 1″ pure aluminum coil compression driver
  • Integrated rigging system for flexible installation options
  • Wide 120° horizontal and 10° vertical dispersion ensures even coverage
  • Bi-amp operation for high output and precise dispersion control
  • Rugged 12 mm (½”) plywood enclosure with a durable semi-matt black paint finish
  • Durable powder-coated perforated steel mesh grille

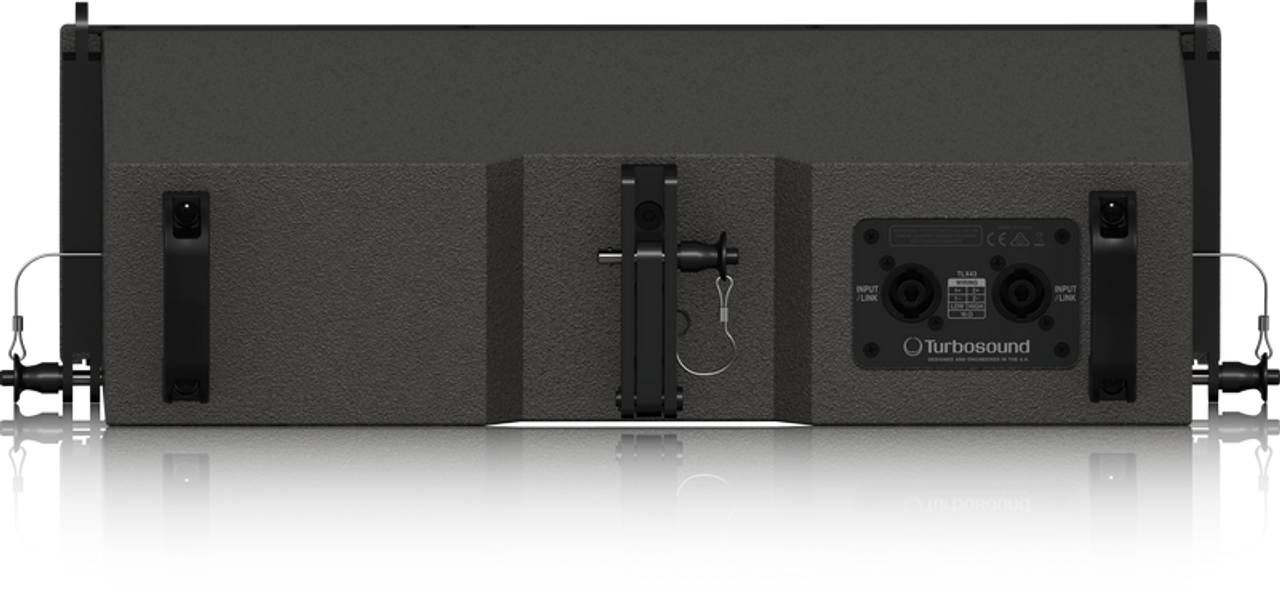

  • Equipped with reliable Neutrik speakON NL4 connectors
  • Compatible with the TLX212L dual 12″ subwoofer for extended low-frequency support

Specifications

Specification Details
Frequency Response 85 Hz – 20 kHz ±3 dB, 70 Hz – 20 kHz -10 dB
Nominal Dispersion 120° H x 10° V @ -6 dB points
Power Handling (IEC) LF: 150 W continuous, 600 W peak; HF: 30 W continuous, 120 W peak
Sensitivity LF: 87 dB (1 W @ 1 m); HF: 99 dB (1 W @ 1 m)
Maximum SPL LF: 109 dB continuous, 115 dB peak; HF: 114 dB continuous, 120 dB peak
Impedance LF: 16 Ω; HF: 16 Ω
Crossover Type External bi-amp
Components 2 x 4″ (102 mm) LF driver, 1 x 1″ (25.4 mm) HF compression driver
Connectors 2 x Neutrik speakON NL4
Wiring Pins 1+ / 1- LF, pins 2+ / 2- HF
Dimensions (H x W x D) 163 x 512 x 290 mm (6.4 x 20.2 x 11.4″)
Net Weight 8.0 kg (17.6 lbs)
Construction 12 mm (½”) plywood
Finish Semi matt black paint
Grille Powder coated perforated steel
Suspension Hardware Integral variable curvature
