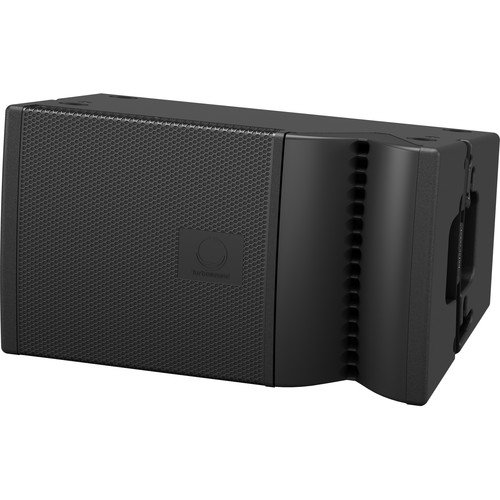

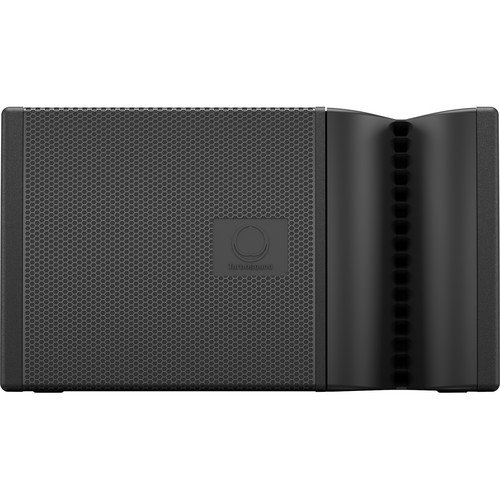

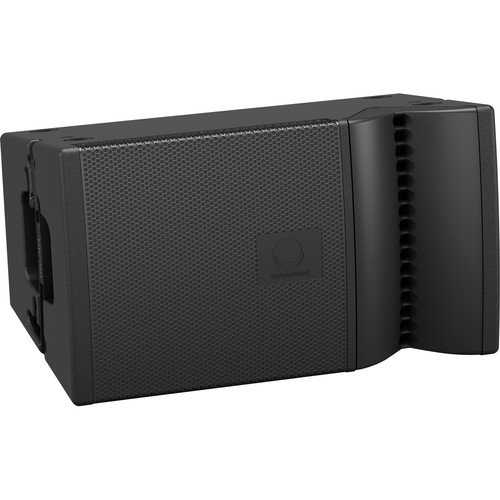

BERLIN TBV123-AN 2-Way 12″ Constant Curvature Loudspeaker
The BERLIN TBV123-AN from Turbosound is an advanced arrayable 2500W 12″ powered loudspeaker system, ideal for a variety of sound reinforcement applications including touring, portable setups, and installations. Suitable for a diverse range of venues, including nightclubs, concert halls, and houses of worship, this loudspeaker delivers exceptional audio performance whether used for FOH, offstage fill, stereo in-fill, or distributed fill applications.
Featuring a carbon fiber-loaded 12″ neodymium low-frequency driver and dual aluminum dome 1″ neodymium motor compression drivers, the TBV123-AN is engineered for superior sound quality. Its 100° horizontal by 15° vertical dispersion constant curvature Dendritic waveguide ensures a wide and controlled coverage area, minimizing reverberation.
Features
- Two-way, full-range loudspeaker for versatile applications
- Constant curvature Dendritic waveguide with 100 x 15° (H x V) dispersion
- 2500W output power with KLARK TEKNIK Class-D technology
- KLARK TEKNIK DSP for comprehensive system control
- ULTRANET digital audio networking compatibility
- 12″ neodymium LF driver with carbon fiber load
- Dual 1″ neodymium HF compression drivers with aluminum dome
- LCD display for user-friendly interface
- PC remote control software available
- Robust 3/4″ plywood enclosure with semi-matte black paint
- Integrated suspension hardware for efficient array setup
- Multiple M10 mount points for flexible attachment options
- Dual-angle pole mount for precise audience targeting
- Durable powder-coated perforated steel mesh grille
- Neutrik powerCON connectors for reliable power input and output
Specifications
| System |
Details |
| Frequency Response |
65 Hz to 20 kHz ±3 dB / 53 Hz to 20 kHz -10 dB |
| Nominal Dispersion |
H x V: 100 x 15° at -6 dB points |
| Maximum SPL |
131 dB peak |
| Crossover Type |
Active |
| Transducers |
1 x 12″ LF driver / 2 x 1″ HF compression drivers |
| Limiter |
Independent HF, LF, peak, and rms |
Amplifier
| Amplifier |
Details |
| Maximum Output Power |
2500 W |
| Type |
Class-D |
| Protection |
Short-circuit, thermal |

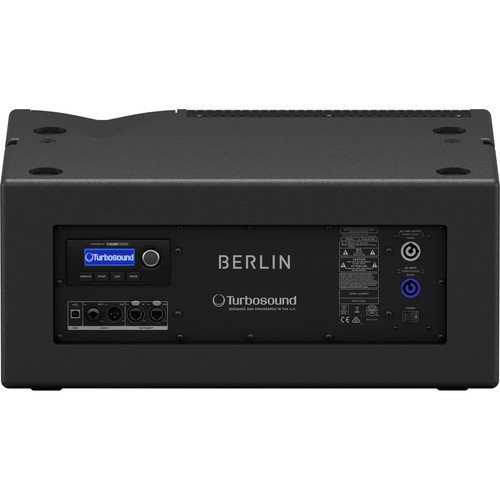

Connectors
| Connectors |
Details |
| Input |
1 x combo jack/XLR, 1 x XLR |
| Sensitivity |
-2 dBu |
| Input Impedance |
40 kOhms balanced |
| Maximum Input Level |
+18 dBu |
| Ultranet Input/Link |
2 x RJ45 / Neutrik etherCON |
| Mains Supply |
Neutrik powerCON, 20 A and Link: 15 A |
Controls
| Controls |
Details |
| DSP |
Rotary push-encoder and level control, buttons for process, setup, exit, enter |
| EQ Presets |
Factory EQ Presets: Positioning, Array mode, FBQ |
| Display |
LCD 128 x 32, blue, backlit |
| Delay |
0 to 300 ms |
| Equalization |
High- and low-shelving EQ, 2 x parametric EQ |
| Limiter |
Zero attack input limiter |
| Presets |
20 total presets, 19 user-definable |
| Crossover |
High pass L-R 24 dB/oct |
| Protection |
Lock-out function for all settings |
Network
| Network |
Details |
| A/D Conversion |
24-bit, 44.1 / 48 kHz sample rate |
| System |
Signal: 16 channels, Latency < 0.9 ms |
| Cabling |
Shielded Cat 5 up to 246′ / 75 m recommended |
Power Supply
| Power Supply |
Details |
| Current Consumption |
Input: 20 A maximum, Link Output: 15 A maximum |
| Power Consumption |
200 W at 1/8 maximum power for individual product |
| Voltage |
USA / Canada/ Japan: 100 to 120 VAC, 50/60 Hz |
Enclosure
| Enclosure |
Details |
| Construction |
3/4″ / 18 mm plywood |
| Grille |
Powder-coated perforated steel |
| Suspension / Mounting |
Integral Suspension System, 4 x M10 points |
| Dimensions |
13.6 x 23.5 x 15.7″ / 344 x 598 x 398 mm |
| Weight |
50.7 lb / 23 kg |
