Description

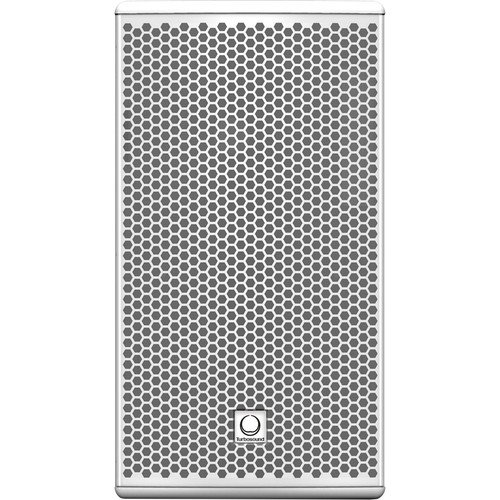

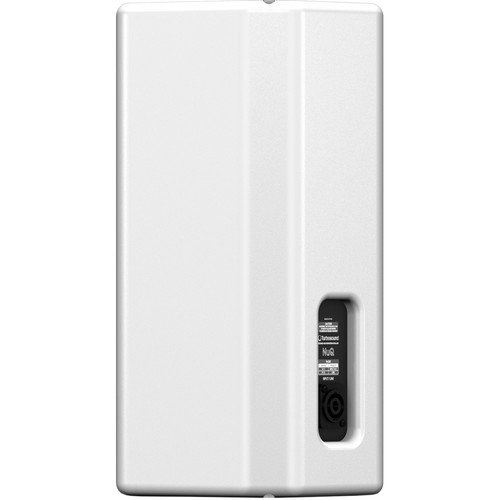

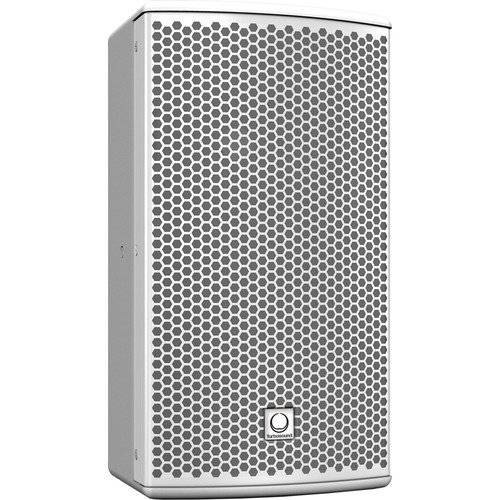

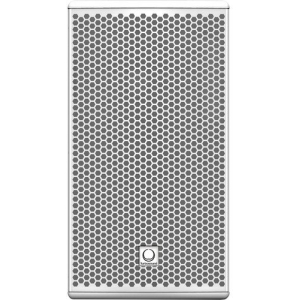

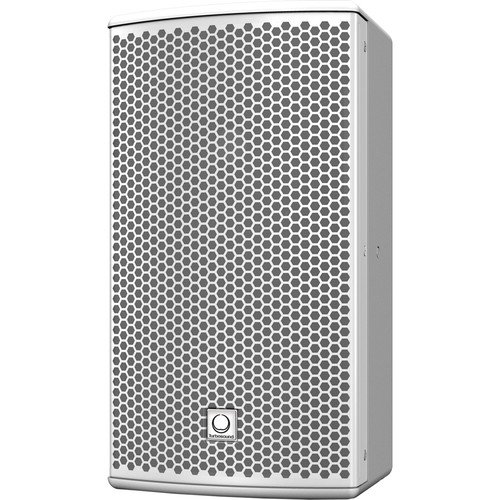

NuQ62-WH 2-Way 6.5″ Full-Range Loudspeaker
The white NuQ62-WH 2-Way 6.5″ Full-Range Loudspeaker from Turbosound is a versatile and powerful audio solution designed for portable PA applications. This compact passive loudspeaker delivers a 600W peak power output, making it well-suited for speech and music sound reinforcement in various settings such as front fill, down fill, balcony delay, and monitor scenarios. Its efficient design features a low-mass voice coil for an enhanced transient response and an aluminum dome 1″ neodymium high-frequency compression driver on a rotatable elliptical waveguide, ensuring clear and consistent sound coverage.
Key Features
- 2-way full-range loudspeaker for portable PA installation applications
- 150W continuous, 600W peak power
- 6.5″ low-frequency driver with a low-mass voice coil
- 1″ aluminum dome neodymium motor compression driver
- Rotatable 100° H x 60° V dispersion elliptical waveguide
- 12mm birch plywood enclosure with a rugged semi-matte black finish
- Powder-coated perforated steel mesh grille
- Neutrik speakON NL4 connectors for durable and reliable connections
Specifications
| Specification |
Details |
| Frequency Response |
80 Hz to 18 kHz ±3 dB; 65 Hz to 20 kHz -10 dB |
| Nominal Dispersion |
100 x 60° (H x V) @ -6 dB points, rotatable |
| Directivity Factor |
8 |
| Directivity Index |
9 |
| Power Handling |
Passive 150W continuous, 600W peak |
| Sensitivity |
88 dB (1 W @ 1 m) |
| Maximum SPL |
110 dB continuous, 116 dB peak |
| Impedance |
16 ohms |
| Crossover Type |
Passive |
| Components |
1 x 6″ (162 mm) LF driver; 1 x 1″ (25 mm) HF compression driver |
Enclosure Specifications
| Specification |
Details |

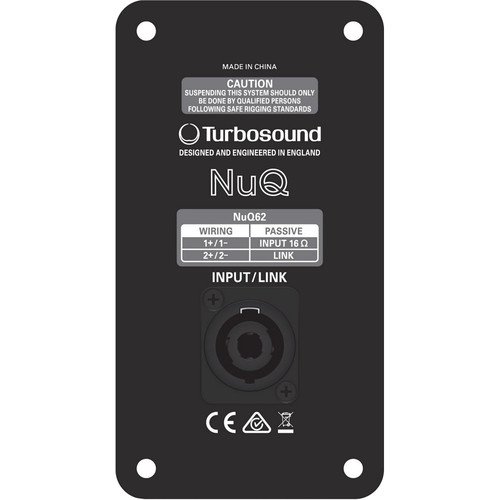

| Connectors |
2 x Neutrik speakON NL4 |
| Wiring |
Pins 1+ / 1- input, pins 2+ / 2- link |
| Construction |
1/2″ (12 mm) birch plywood |
| Grille |
Powder-coated perforated steel |
| Dimensions |
14 x 7.5 x 8.3″ (35 x 21 x 19 cm) |
| Weight |
13.6 lb (6.3 kg) |
Packaging Info
| Specification |
Details |
| Package Weight |
15.5 lb |
