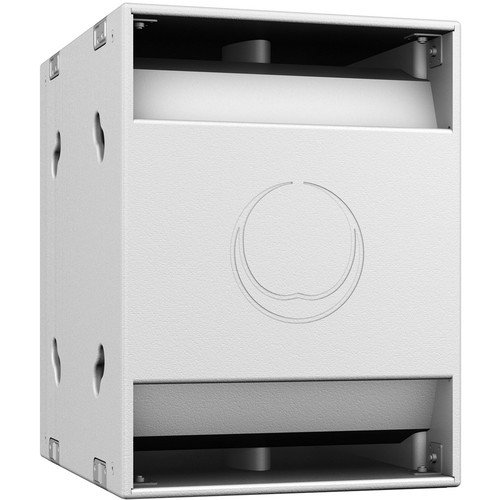

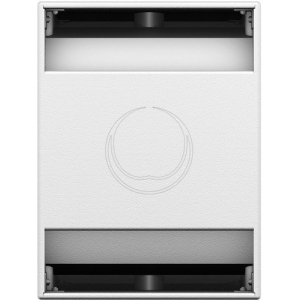

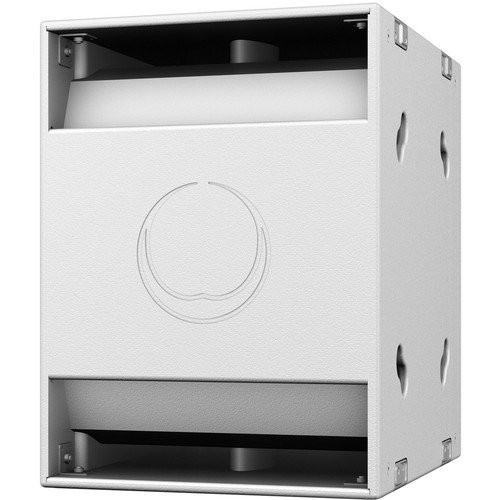

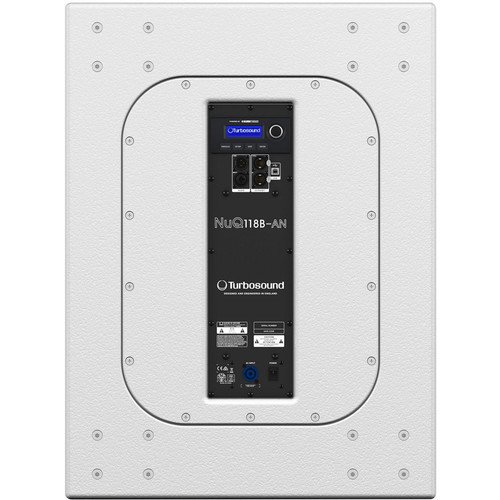

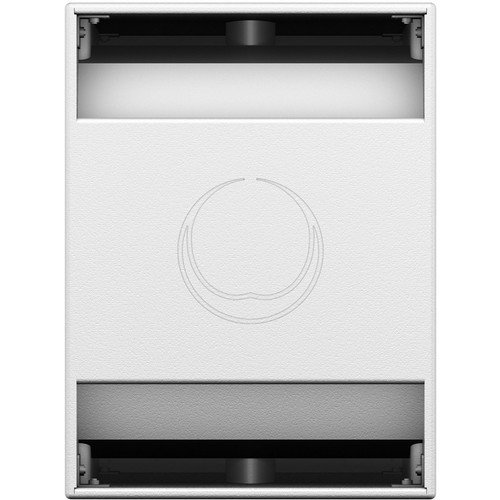

Turbosound NuQ118B-AN-WH 3000W 18in Band-Pass Subwoofer White

Turbosound

AED 4,540.20 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: NuQ118B-AN-WH Categories: , Brand:

The white NuQ118B-AN 3000W 18″ Band-Pass Subwoofer from Turbosound features KLARK TEKNIK DSP Technology and ULTRANET Networking. This dual-ported, band-pass enclosure provides extended low-frequency response and high-output performance, making it ideal for various music and live sound-reinforcement applications.

Description

NuQ118B-AN 3000W 18″ Band-Pass Subwoofer

The white NuQ118B-AN 3000W 18″ Band-Pass Subwoofer with KLARK TEKNIK DSP Technology and ULTRANET Networking from Turbosound is a dual-ported band-pass enclosure optimally tuned for extended low-frequency response. Engineered to work in conjunction with Turbosound loudspeaker-management systems, the subwoofer offers high-output FOH performance and is ideally suited for a wide range of music and live sound-reinforcement applications.

The subwoofer features a powerful, double-suspension 18″ low-frequency driver that utilizes a specialized inside/outside wound voice coil for higher magnetic density, better heat dissipation, high-power handling capacity, and improved efficiency. For its size and operating bandwidth, the unit delivers high output that is virtually distortion-free, even in the most demanding applications.

Key Features

  • 18″ band-pass subwoofer for portable PA applications
  • 3000W power featuring KLARK TEKNIK Class-D technology
  • KLARK TEKNIK Digital Signal Processing for total system control
  • ULTRANET digital audio networking connects to mixers and other sources
  • Double-suspension 18″ low-frequency driver with inside/outside wound coil
  • Fully featured user interface with LCD display for ease of navigation
  • Windows remote-control software downloadable on manufacturer website
  • Low-distortion dual-port design for maximum sound-pressure level
  • 3/4″ (18mm) birch-plywood enclosure with hard-wearing semi-matte white paint finish
  • Integral M10 rigging points for ease of installation
  • 35mm pole mount to support satellite speaker
  • Mains input on Neutrik powerCON connector
  • Designed and engineered in England

Specifications

Specification Details
Frequency Response 40 Hz – 150 Hz ±3 dB
33 Hz – 150 kHz -10 dB
Nominal Dispersion Half Space
Maximum SPL 136 dB peak
Crossover Type Active
Transducer 1 x 18″ (460 mm) LF driver
Limiter Peak and RMS
Signal 16 channels
Latency < 0.9 ms
Frequency Response 20 Hz to 20 kHz (+0 / -3 dB)
Dynamic Range Typical 92 dB
Cables Shielded CAT5
Cable Length Max 246′ (75 m) recommended
Power Consumption 180 W at 1/8 max power
Voltage 120 V, 60 Hz (T 15 A H 250 V)
Maximum Output Power 3000 W
Amplifier Type Class-D
Protection Short circuit, thermal
Input 1 x Combo Jack/XLR, 1 x XLR
Sensitivity +4 dBu or +14 dBu software switchable
Input Impedance 40 kOhms balanced
Maximum Input Level +22 dB
Ethernet 2 x RJ45, Ultranet input/link
Mains Supply Neutrik powerCON 20 A

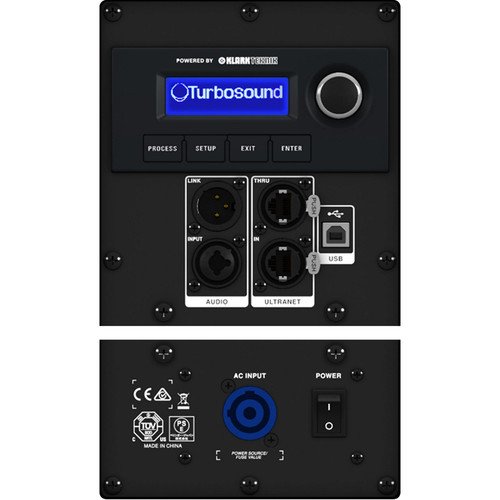

DSP Controls Rotary push-encoder and level control
Buttons for Process, Setup, Exit, Enter
EQ Controls Positioning, sound mode, FBQ
Display LCD 128 x 32, blue, backlit
Delay 0 – 300 ms
Equalization High- and low-shelving EQ
2 x parametric EQ
Limiter Zero-attack input limiter
Presets 20 total presets, 19 user-definable
Crossover High-pass L-R 24 dB/oct
Protection Lock-out function for all settings
A/D Conversion 24-bit, 44.1/48 kHz sample rate
Converter Type 24-bit, delta-sigma
Construction 3/4″ (18 mm) Birch plywood
Finish Semi-matte white paint
Grille Powder-coated perforated steel
Hardware M10 x 16 points
Dimensions 30.4 x 22.8 x 27.6″ (773 x 579 x 700 mm)
Weight 127.5 lb (57.9 kg)
Package Weight 150 lb
Box Dimensions 32 x 32 x 27″
