Description

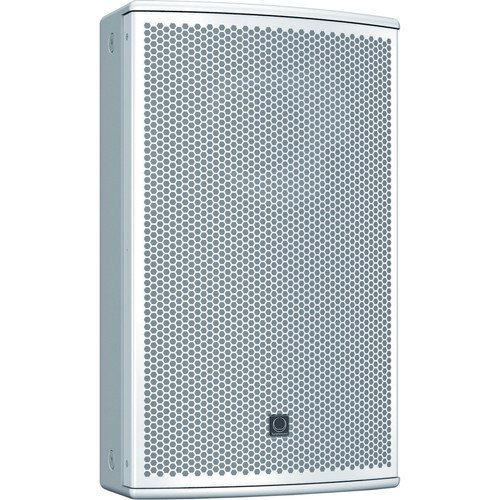

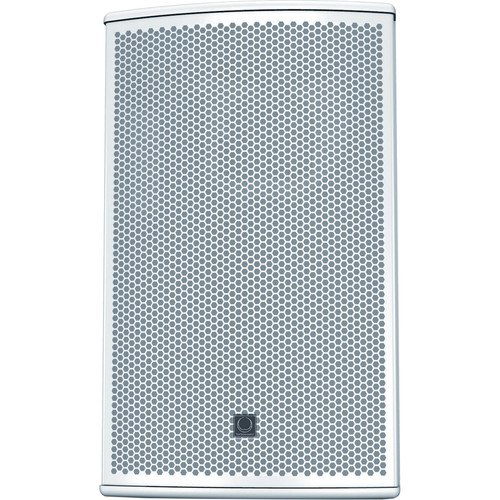

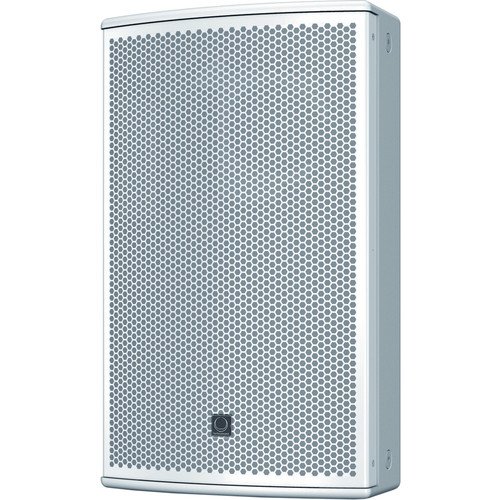

NuQ102-WH 2-Way 10″ Full-Range Loudspeaker
The NuQ102-WH by Turbosound is a versatile loudspeaker system that offers exceptional audio performance for various applications, ranging from speech to music reinforcement. This white, portable PA loudspeaker is ideal for Front of House (FOH), sidefill, delay-line, and even wedge-monitoring applications, making it a versatile addition to any sound setup.
This 2-way system includes a 10″ low-frequency driver complemented by a high-frequency compression driver with a 1″ neodymium motor. Additionally, it features a switchable passive/bi-amp operation mode, allowing it to adapt to different sound setups with ease. The system’s rotatable waveguide facilitates a wide, consistent sound dispersion, ensuring optimal audio coverage.
Key Features
- 2-way full-range loudspeaker for portable PA applications
- 300W continuous, 1200W peak power
- 10″ LF driver with low-mass voice coil
- 1″ HF driver with a neodymium motor
- Switchable passive/bi-amp operation
- 100 x 60° dispersible rotatable waveguide
- Durable 12mm birch-plywood enclosure
- Powder-coated perforated-steel grille
Specifications
| Specification |
Details |
| Frequency Response |
55 Hz to 18 kHz (±3 dB), 50 Hz to 20 kHz (-10 dB) |
| Nominal Dispersion |
100 x 60° (HxV), rotatable |
| Directivity Factor |
8 |
| Directivity Index |
9 |
| Power Handling |
Passive 300W continuous, 1200W peak; Bi-amp LF: 300W continuous, 1200W peak, HF: 30W continuous, 120W peak |
| Sensitivity |
93 dB (1 W @ 3.3′ or 1 m) |
| Maximum SPL |
Passive: 118 dB continuous, 124 dB peak; Bi-amp LF: 118 dB continuous, 124 dB peak, HF: 119 dB continuous, 125 dB peak |
| Impedance |
Passive: 8 ohms, Bi-amp LF: 8 ohms, HF: 6 ohms |
| Crossover Type |
Passive / bi-amp switchable |
| Components |
1 x 10″ LF driver, 1 x 1″ HF compression driver |
| Enclosure Specification |
Details |

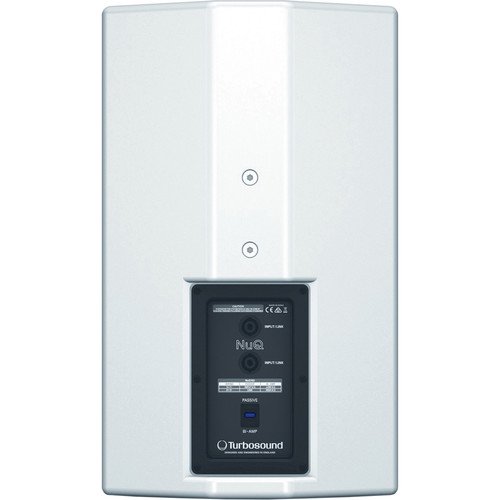

| Connectors |
2 x Neutrik speakON NL4 |
| Wiring |
Passive: Pins 1+ / 1- input, pins 2+ / 2- link; Bi-amp: Pins 1+ / 1- LF, pins 2+ / 2- HF |
| Construction |
12 mm birch plywood |
| Grille |
Powder-coated perforated steel |
| Dimensions |
20.7 x 12.5 x 10.2″ (52.5 x 31.8 x 25.8 cm) |
| Weight |
27.9 lbs (12.7 kg) |
| Packaging Info |
Details |
| Package Weight |
32.5 lbs |
| Box Dimensions (LxWxH) |
23 x 15.8 x 13″ |
