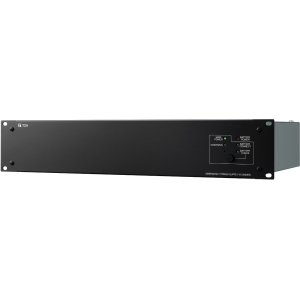

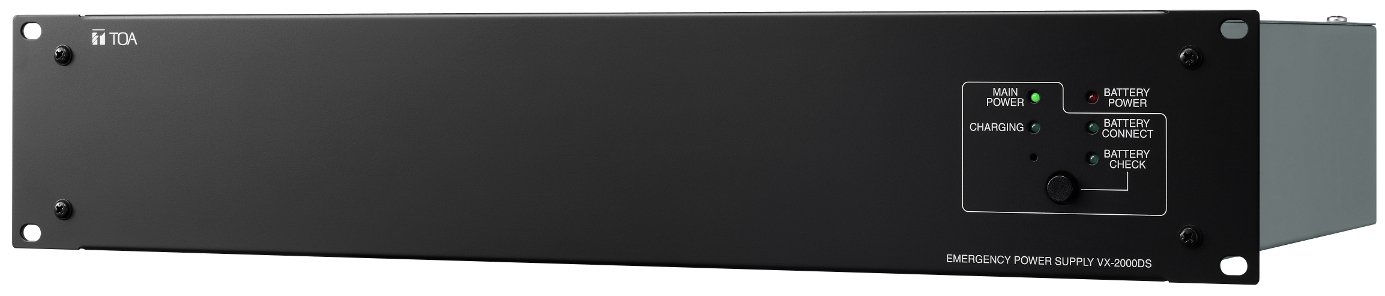

TOA Electronics VX-2000DS Emergency Power Supply Module

Toa

AED 3137.58 inc VAT.

The VX-2000DS Emergency Power Supply Unit provides essential DC power for each component of the VX-2000 system, partnering with the VX-200PS Power Supply Unit. It maintains a battery unit with two 12 V sealed lead batteries, adjusting the charging voltage for temperature variations. In the event of a power interruption from the VX-200PS, the VX-2000DS seamlessly switches to its backup battery, ensuring uninterrupted operation.

In stock
Request Quote
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: VX-2000DS ER Categories: , Brand:

Description

VX-2000DS Emergency Power Supply Unit

The VX-2000DS Emergency Power Supply Unit ensures seamless DC power delivery to all equipment within the VX-2000 system by integrating with the VX-200PS Power Supply Unit. It maintains the charge of 2 × 12V sealed lead batteries, adjusting the charging voltage based on the battery’s temperature. The system automatically switches to the backup battery in the event of a DC power supply interruption from the VX-200PS.

Key Features

Specification Details
Power Source 230 V AC, 50/60 Hz
Power Consumption 240 W max.
Applicable Battery YUASA NP series (12 V × 2 or 4)
Charging Method Trickle charging
Charging Current 5 A max.
Charging Output Voltage 27.3 V ±0.3 V (at 25°C)
Temperature correction coefficient: -40 mV/°C
Power Supply Input 6 M4 screw terminal, distance between barriers: 11 mm
DC Power Output 6 (25 A max. each) M4 screw terminal, distance between barriers: 11 mm
Control Connector RJ45 female connector for connecting the VX-2000SF Surveillance Frame.
Twisted-pair straight cable (TIA/EIA-568A standard)
Type of control signal: Battery check, AC power status, DC power status,
charging circuit failure, and battery failure
Battery Connection 1 pair of positive and negative terminals
Applicable cable diameter: AWG 6 – AWG 1/0
Operating Temperature 0°C to +40°C
Finish Panel: Surface-treated steel plate, black, 30% gloss, paint
Dimensions 482 (W) × 88.4 (H) × 377.6 (D) mm
Weight 10.5 kg
Accessory Rack mounting screw × 4, Fiber washer × 4, Blade fuse (40 A) × 3,
Fuse (T3.15 A L) × 1, Power cable × 1, Insulating sheet × 1,
Attention label (German) × 1
