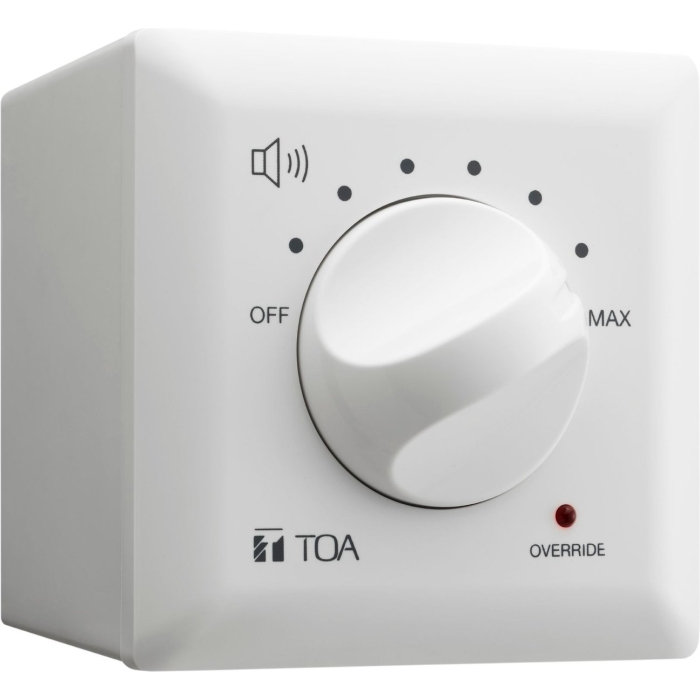

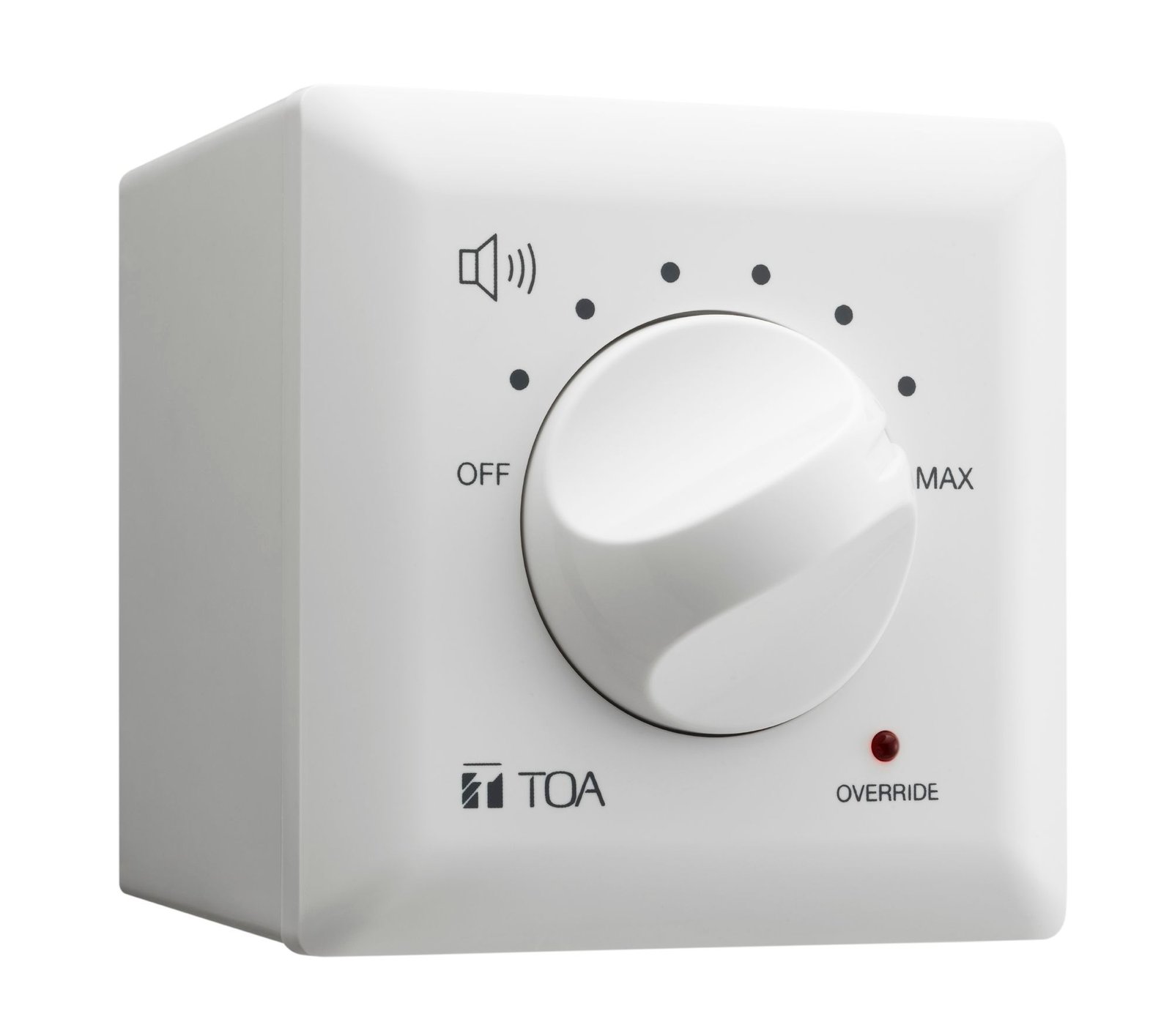

Toa Audio Attenuator AT-4060B-EB 60W 8-Step Control

Toa

AED 304.50 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: AT-4060B-EB Categories: , , Brand:

The AT-4000 Series Attenuators feature an ergonomic control knob for a comfortable grip and precise control, with 8-step attenuation offering 3 dB adjustments per step. An overriding relay and LED indicator support emergency paging functionality.

Description

Design with ergonomics for the human hand in mind, AT-4000 Series Attenuators’ control knob comes in a size that provides comfortable grip and excellent control with every turn. Consisting of 8-step attenuation, the series is built to provide precision volume control with a difference of 3 dB in every step. The built-in overriding relay feature allows emergency paging which is indicated by the LED light when activated.

Features

  • 8-step attenuation level control (+/-3 dB)
  • Ergonomic control knob with better grip for easy turn
  • 24 VDC overriding relay with red LED indicator
  • Terminal block for thicker diameter cable
  • Clip-on face plate
  • 2- / 3- / 4-wire system
  • Surface or flush mount
  • Glossy finish in white

Specifications

Specification Details
Input Capacity 60W
Attenuation 8 steps (0 dB, -3 dB, -6 dB, -9 dB, -12 dB, -15 dB, -18 dB, OFF)
Override Indicator Red LED (4-wire connection only)
Overriding Voltage 24 V, 11 mA DC (4-wire connection only)
Terminal Screw-type x 5
Usable Cable Cable range 22 – 14 AWG
Finish Knob, Cover Panel: ABS Resin, White (RAL9016 or equivalent) / Front Panel (Plate): Surface treated steel plate
Dimensions (W x H x D) 86 x 86 x 79 mm
Weight 460 g
Accessories Back box 85.5 (W) x 85.5 (H) x 60 (D) mm x 1, Plate mounting screw x 2
