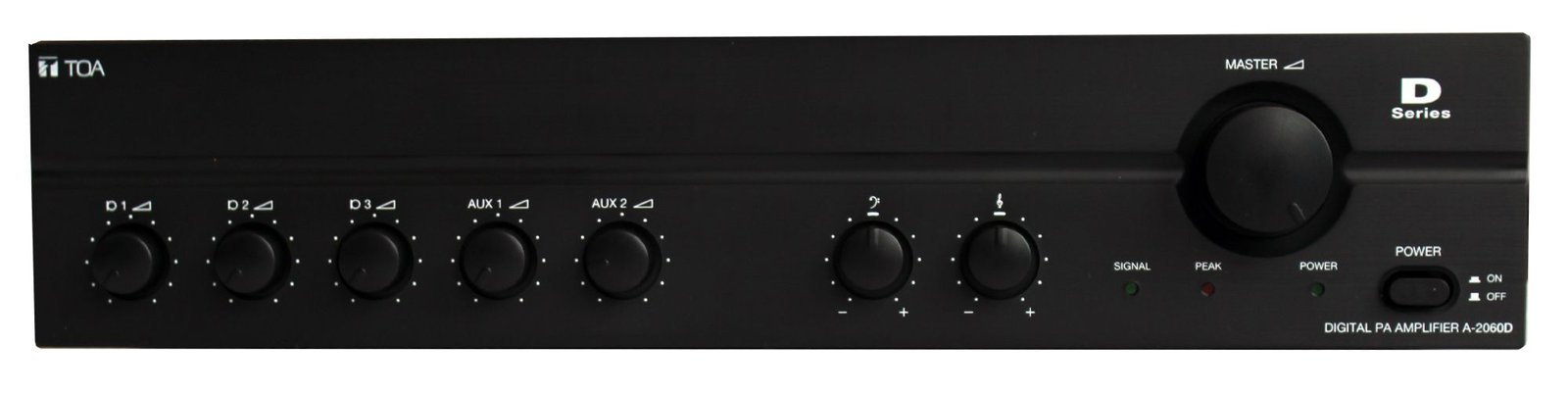

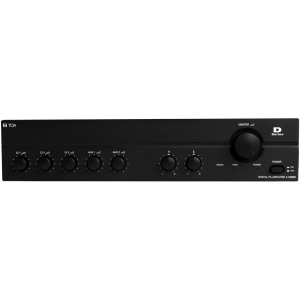

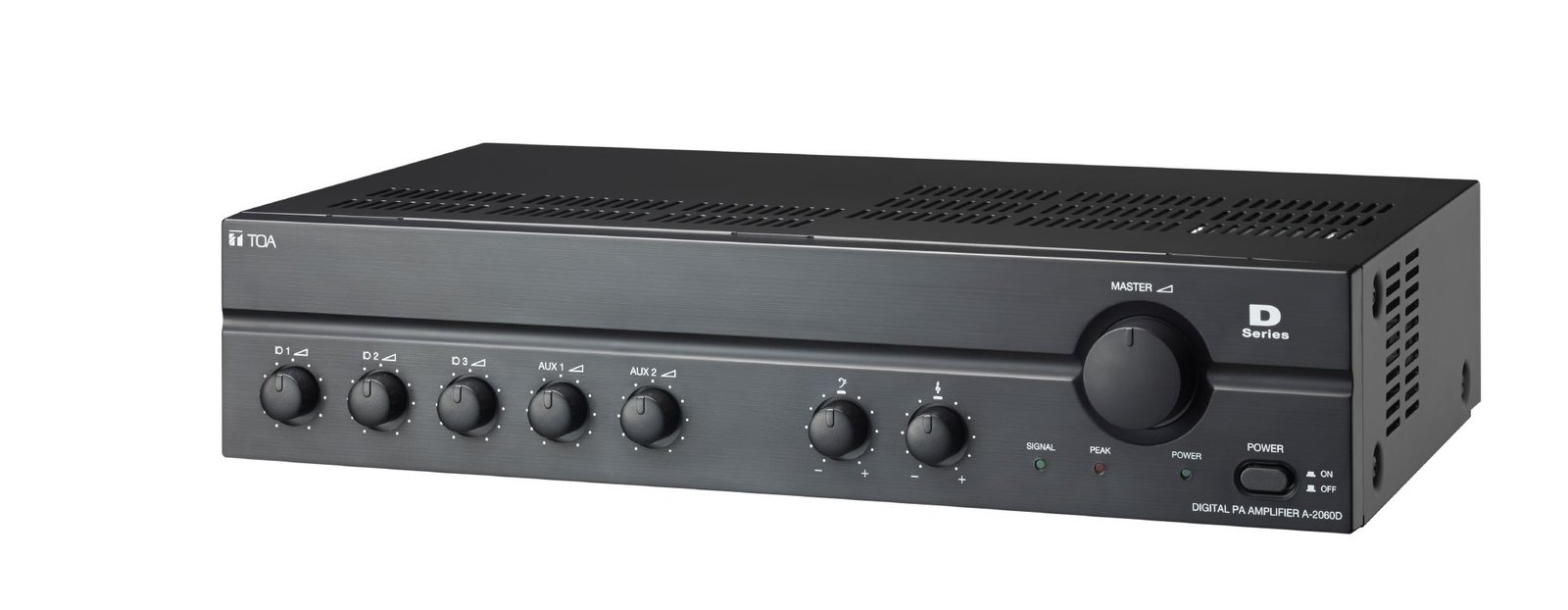

Toa Digital Mixer Amplifier A-2060DD 60W with 3 Mic Inputs

Toa

AED 1,153.71 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: A-2060DD Categories: , , Brand:

The A-2060DD-EB is a versatile mixer power amplifier designed for high cost-performance, making it ideal for broadcasting paging or background music in various environments such as schools, offices, shops, factories, mosques, churches, and large rooms.

Description

The A-2060DD-EB is a high cost-performance mixer power amplifier, perfect for broadcasting paging or background music in various settings such as schools, offices, shops, factories, mosques, churches, and large rooms.

Key Features

  • 3 microphone inputs, 2 AUX inputs, and 1 recording output
  • DD-varieties with 2 phone jacks and 1 5-pin DIN input
  • D-varieties with 3 phone jacks
  • Speaker output of constant voltage distribution system (100 V)
  • Independent tone control for both high and low frequencies
  • MIC 1 with phantom power and mute function
  • Current limiter to prevent damage from overloads
  • Excess heat protection for the transistor and power transformer
  • Available in 30 W, 60 W, 120 W, and 240 W rated output

Specifications

Specification Details
Power Source 220 – 240 V AC, 50 / 60 Hz
Rated Output 60 W
Frequency Response 50 Hz – 20 kHz (±3 dB)
Distortion < 1 % (at 1 kHz, 1/3 rated output power)
Power Consumption 16 W (EN 62368-1: AC operation at 1/8 rated output)
Amplifier Class D
Signal to Noise Ratio 60 dB (or more)
Number of Channels 1
Connectable Microphones 3
Inputs MIC 1: -60dBV, 600 Ohm, balanced, 5-pin DIN equivalent, phantom power selectable, + 21V
Mic 2-3: -60dBV, 600 Ohm, balanced, phone jack
AUX 1-2: -20 dBV, 10 kOhm, unbalanced RCA pin jack
Control Input Mute: via DIN jack
Outputs Speaker: balanced (floating) / Rec out: 0 dBV, 600 Ω, unbalanced, RCA Pin Jack
Finish ABS resin, Steel plate, black
Dimensions 420 x 100.6 x 280.3 mm (W x H x D)
Weight 4.6 kg
