Toa A-3548D Class D Mixer Amplifier 480W with 2-Zone Speaker Selector

Toa

AED 4,604.25 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: A-3548D 4CEE00 Categories: , , Brand:

The A-3548D is a class D mixer/amplifier delivering 480 watts output with features such as emergency and priority paging, 3 MIC/LINE inputs, 1 MIC input, and 1 AUX input for music sources. It includes 2-channel speaker zone selectors, making it suitable for paging announcements and background music in retail shops, schools, offices, and production facilities.

Description

A-3548D Class D Mixer/Amplifier

The A-3548D is a state-of-the-art class D mixer/amplifier, delivering 480 watts of power. It is designed to handle emergency and priority paging, making it a perfect choice for various audio applications in retail shops, schools, offices, and production facilities. With its multiple input options and 2-channel speaker zone selectors, it is ideal for both paging announcements and background music deployments.

Key Features

  • 480 W Class D mixer amplifier
  • High and low impedance speaker compatibility
  • Emergency and priority paging functionalities
  • 5 versatile inputs including 3 MIC/LINE selectable inputs
  • 2-zone speaker selector for high impedance
  • Multiple output options including line and recording outputs

Specifications

Specification Details
Power Source 100 – 240 V AC, 50 / 60 Hz
Rated Output 480 W
Frequency Response 50 Hz – 20 kHz (±3 dB)
Distortion ≤ 1 % (at 1 kHz, rated power)
Power Consumption 601 W (at rated output), 113 W (EN62368-1)
Speaker Output Direct, zones 1 & 2
Amplifier Class Class D
Signal-to-Noise Ratio 88 dB (A-weighted)
Connectable Microphones 3
Inputs 5 (1 Mic, 1 AUX, 3 selectable MIC/LINE)
Control Input 2 channels, no-voltage make contact input, open voltage: 35 V DC or less

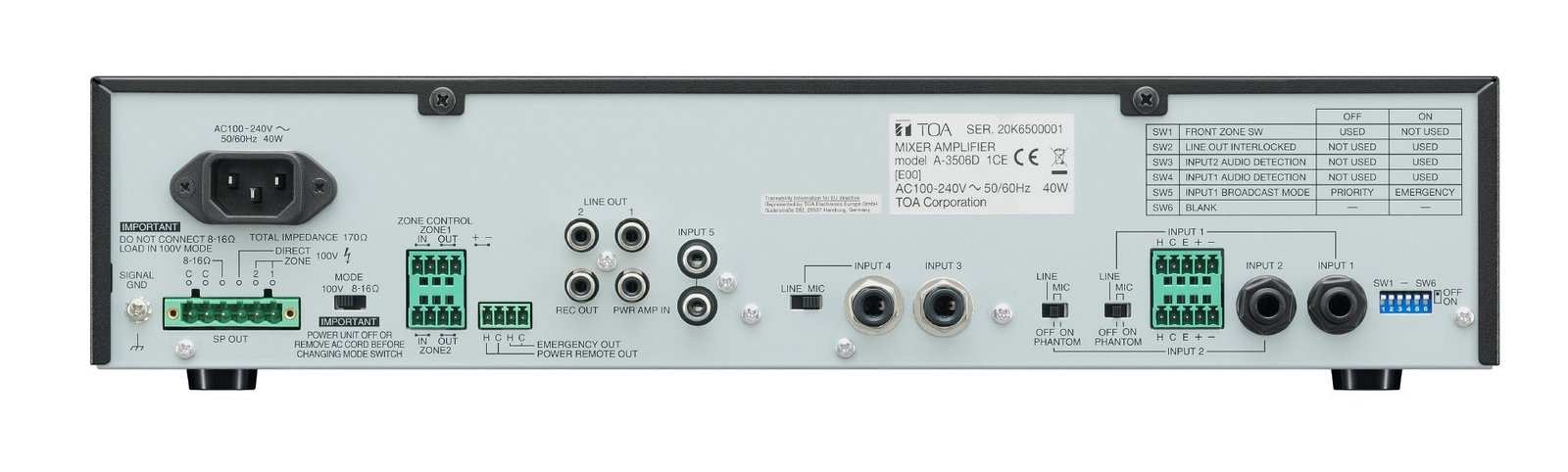

Outputs REC, LINE, Speaker (zones 1 and 2)
Control Output Power remote, emergency, zone control
Operating Humidity 85% RH or less (no condensation)
Operating Temperature -10 to +40 °C
Finish ABS resin, Steel plate, black
Dimensions 420 x 96 x 313 mm (W x H x D)
Weight 5.1 kg
