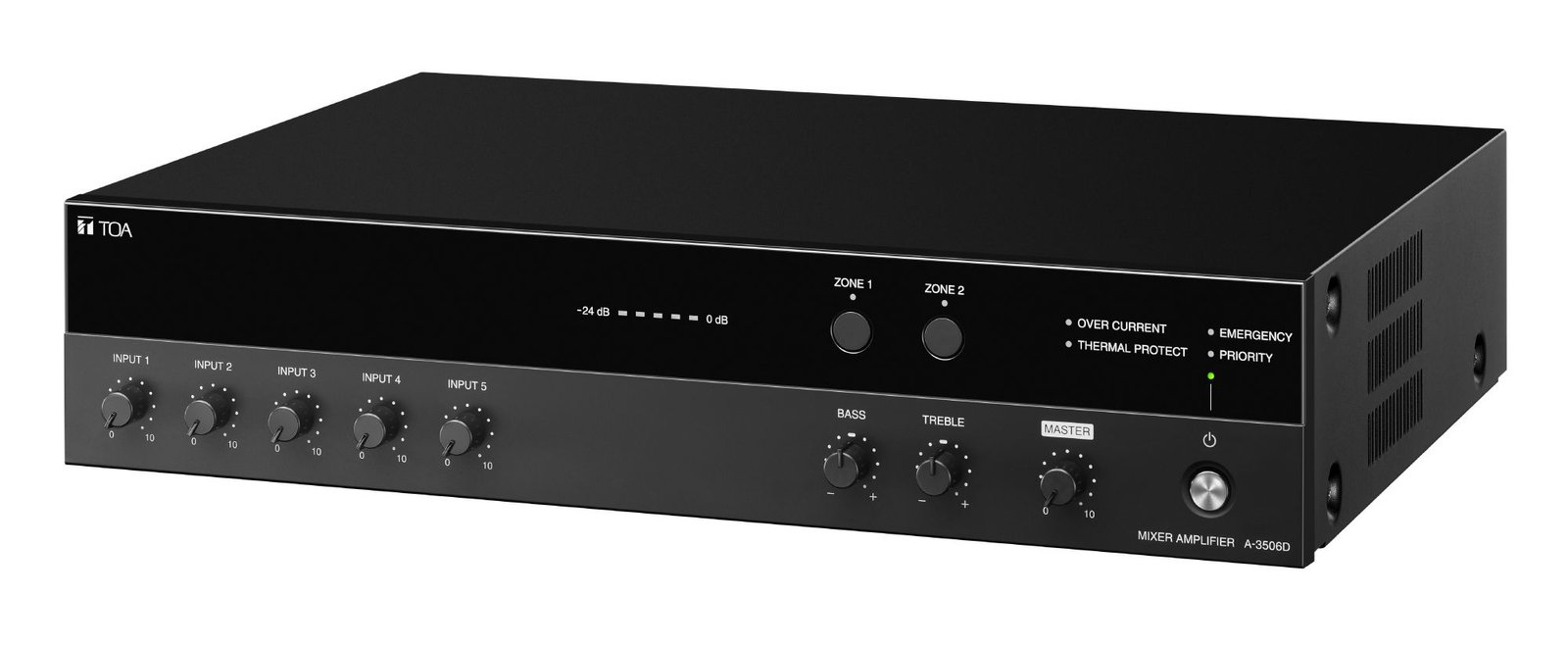

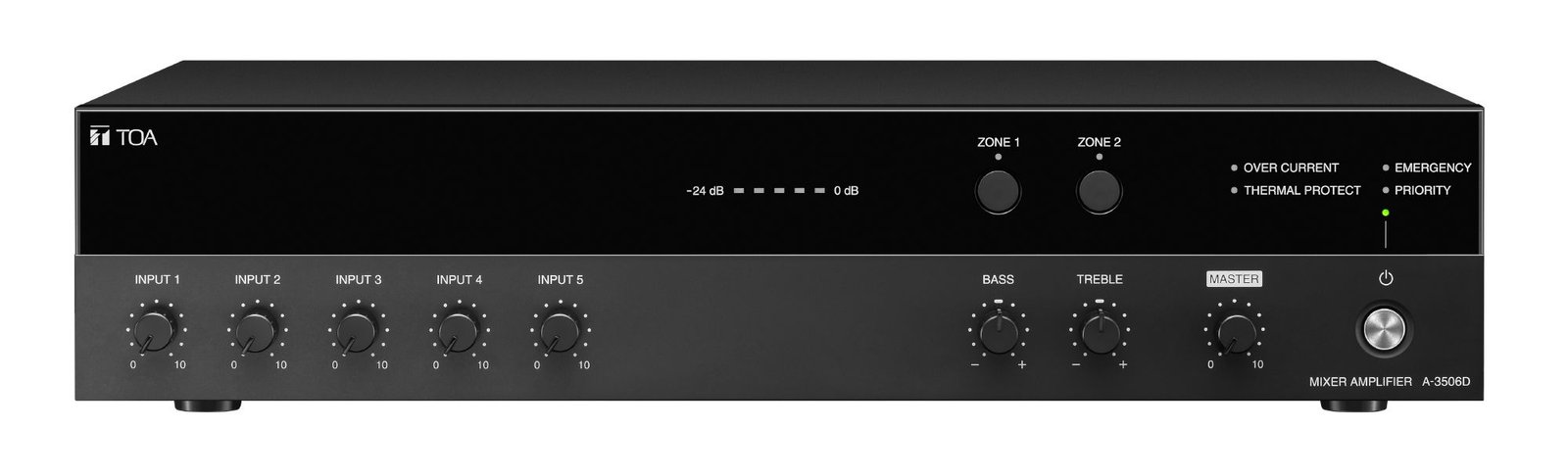

Toa A-3524D Class D Mixer Amplifier 240W with 5 Inputs

Toa

AED 3834.60 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: A-3524D 1CEE00 Categories: , , Brand:

The A-3524D 240W class D mixer amplifier features emergency and priority paging, 3 MIC/LINE inputs, 1 MIC input, and 1 AUX input that can serve as a music source. It includes 2-channel speaker zone selectors, making it ideal for paging announcements and background music in retail shops, schools, offices, and production facilities, and supports both high and low impedance speakers.

Description

A-3524D Class D Mixer Amplifier – 240 Watts Output

Introducing the A-3524D, a versatile Class D mixer amplifier offering a powerful 240 watts output, suitable for diverse audio applications in settings such as retail stores, educational institutions, offices, and manufacturing facilities. With advanced emergency and priority paging features, and a variety of input options, it’s an optimal solution for both paging announcements and background music.

Key Features

  • 5 Inputs: 3 MIC/LINE selectable, 1 MIC, 1 AUX for flexible audio source management
  • 2-zone speaker selector, optimized for high-impedance speaker zones
  • Phantom power support for condenser microphones on 2 inputs
  • 2 Line outputs and 1 recording output for diverse audio output options
  • Emergency output for seamless integration with alarm systems
  • Durable and sleek design with ABS resin and steel plate in black finish

Specifications

Power Source 100 – 240 V AC, 50 / 60 Hz
Rated Output 240 W
Frequency Response 50 Hz – 20 kHz (±3 dB)
Distortion ≤ 1 % (at 1 kHz, rated power)
Power Consumption 314 W (at rated output), 70 W (EN62368-1)
Speaker Output Direct, Zones 1 & 2
Amplifier Class D
S/N Ratio 88 dB (A-weighted)
Connectable Microphones 3
Inputs

INPUT 1, 2: –60 dB (MIC)/ –20 dB (LINE), selectable, 600 Ω, electronically-balanced, removable terminal block (3.81 mm, 5 pins)/6.3 mm phone jack (2P)

INPUT 3: –60 dB, 600 Ω, electronically-balanced, 6.3 mm phone jack

INPUT 4: –60 dB (MIC)/ –20 dB (LINE), selectable, 600 Ω, electronically-balanced, 6.3 mm phone jack (2P)

INPUT 5: –20 dB, 10 kΩ, unbalanced, RCA pin jack x 2

PWR AMP:IN: 0 dB, 600 Ω, unbalanced, RCA pin jack
Control Input

2 channels, no-voltage make contact input, open voltage: 35 V DC or less, short-circuit current: 10 mA or less, removable terminal block (3.81 mm, 5 pins);

ZONE control: No-voltage make contact input, open voltage: 35 V DC or less, short-circuit current: 10 mA or less, removable terminal block (3.81 mm, 4 pins)
Outputs

REC, LINE 1/1: 0 dBV, 600 ohms, unbalanced, RCA pin jack

SPEAKER direct, zones 1 and 2: 4-16 ohms in total or 100 V
Control Output

Power remote, emergency, zone control: Open collector output, withstand voltage: 30 V DC or less, control current: 25 mA or less, removable terminal block (3.50 mm, 4 pins)
Operating Humidity 85%RH or less (no condensation)
Operating Temperature –10 to +40 °C
Finish ABS resin, Steel plate, paint, black
Dimensions 420 x 96 x 313 mm (W x H x D)
Weight 4.9 kg
