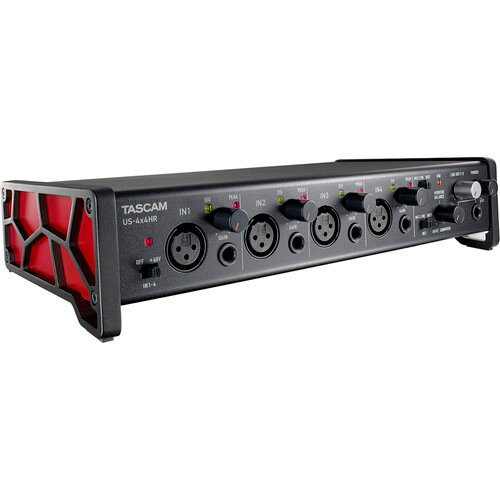

Tascam US-4x4HR USB Type-C Audio/MIDI Interface

AED 1122.45 inc VAT.

The Tascam US-4x4HR is a 4×4 USB Type-C audio/MIDI interface designed for home recordists and content creators, enabling high-resolution recording and livestreaming to Mac, Windows, or iOS devices. It supports simultaneous input from four microphones and includes MIDI ports for seamless integration of MIDI gear into music production setups.

In stock

Estimated Delivery: 2–3 business days across the UAE
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

Description

Tascam US-4x4HR Audio/MIDI Interface

Record or livestream songs, podcasts, and commentary in high resolution to your Mac/Windows computer or iOS mobile device with the Tascam US-4x4HR, a desktop 4×4 USB Type-C audio/MIDI interface designed to deliver comfortable, user-friendly operation, clean audio quality, and simultaneous input of four mics for home recordists and content creators. The inclusion of MIDI ports gives producers an easy way to integrate MIDI gear into their music production setups.

Key Features

Producers, Musicians, and Home Studios
USB Type-C / USB Type-A Connectivity

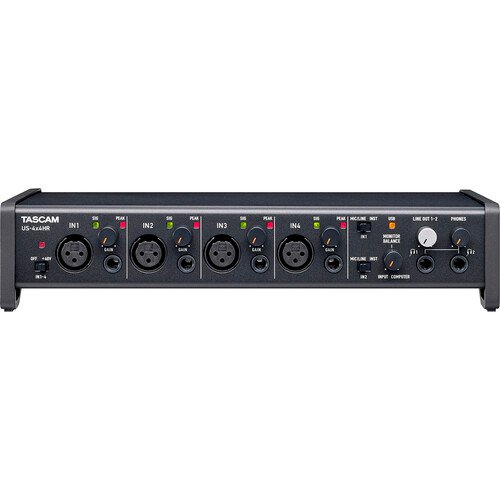

4 Mic Preamps, 2 Line/Hi-Z In, 2 Line In
2 Headphone Outs, 4 Line Outputs
24-Bit / 192 kHz AD/DA Converters
Bus Power or PSU / Mac, Windows, iOS
Phantom Power, Direct Monitor, MIDI I/O
LED Signal/Peak Indicators
Virtual Loopback for Livestreaming
DAWs, Virtual Instrument, Auto-Tune

Specifications

Specification	Details
Form Factor	Tabletop
Display	None
Channels of I/O	Analog: 4 Inputs / 4 Outputs
Maximum Sampling Rate	192 kHz / 24-Bit
Number of Microphone Preamps	4 Preamps
Input Level Adjustment	4 x Knob
Expansion Slots	None
Pad	None
Gain/Trim Range	Mic/Line/Hi-Z Inputs: 56 dB
High-Pass Filter	None
Solo/Mute	None
Analog Audio I/O	4 x XLR 3-Pin Balanced Mic Input (Front Panel), 2 x 1/4″ TRS Balanced/Unbalanced Line/Hi-Z Input (Front Panel), 2 x 1/4″ TRS Balanced Line Input (Front Panel), 4 x 1/4″ TRS Balanced Line Output, 2 x 1/4″ TRS Unbalanced Headphone Output (Front Panel)
Phantom Power	48 V, Selectable On/Off (Applied to All Inputs)
Digital Audio I/O	None
Host Connection / USB	1 x USB Type-C (USB 2.0)
USB (Non-Host)	None
Sync I/O	None
Network I/O	None

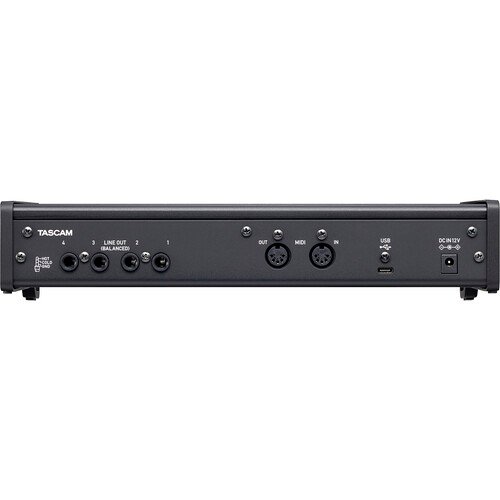

MIDI I/O	1 x DIN 5-Pin Input, 1 x DIN 5-Pin Output
Wireless Connectivity	None
Frequency Response	Mic, Line Inputs: 20 Hz to 20 kHz +0/-0.4 dB (at 44.1/48 kHz, JEITA), 20 Hz to 40 kHz +0/-0.4 dB (at 88.2/96 kHz, JEITA), Line Outputs: 20 Hz to 20 kHz +0.2/-0.1 dB (at 44.1/48 kHz, JEITA), 20 Hz to 40 kHz +0.2/-0.4 dB (at 88.2/96 kHz, JEITA)
Maximum Input Level	Mic Inputs: +9 dBu, Line Inputs: +20 dBu, Hi-Z Inputs: +10 dBV
Maximum Output Level	Line Outputs: +20 dBu
Headphone Output Power	45 mW per Channel into 32 Ohms (0.1% THD)
Impedance	Mic Inputs: 2.2 Kilohms, Line Inputs: 10 Kilohms, Hi-Z Inputs: ≥ 1 Megohm, Line Outputs: 210 Ohms
SNR	Mic Inputs: 110 dB (A-Weighted, Min Gain), Line Inputs: 108 dB (A-Weighted, Min Gain), Line Outputs: 110 dB (A-Weighted, Max Gain)
THD+N	Mic Inputs: 0.0013% (1 kHz, Min Gain), Line Inputs: 0.0011% (1 kHz, Min Gain), Line Outputs: 0.0012% (1 kHz)
Crosstalk	≥ 95 dB (1 kHz)
EIN	-128 dBu
Sample Rates	44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
Sample Rate Conversion	None
Bit Depths	24-Bit
Sync Sources	Internal
Memory Card Slot	None
OS Compatibility	macOS 10.13, macOS 11 or Later, Windows 7 or Later, iPadOS 13 or Later, iOS 11 or Later
Included Software	Cubase LE
Compatible Software (Not Included)	Any Core Audio (Mac) Compliant Software
Included Plug-Ins	Virtual Instruments: SampleTank SE
Supported Drivers/API & Plug-Ins	Core Audio (Mac), ASIO, WDM
Processor Requirement	2 GHz or Better
RAM Requirements	2 GB
Mobile Device Compatibility	iPad, iPhone
Required Hardware	Available USB 2.0 Port, USB Cable (Included)
Internet Connection	Required for Registration, Software/Driver Download
Power Requirements	AC/DC Power Adapter (Not Included) or USB Bus Power
AC/DC Power Adapter	12 VDC, Center-Positive (Included)
Power Consumption	2.25 W
Operating Temperature	41 to 95°F / 5 to 35°C
Dimensions	11.7 x 6.3 x 2.6″ / 29.6 x 16 x 6.5 cm (Including Controls and Protrusions)
Weight	3.5 lb / 1.6 kg
Package Weight	4.925 lb
Box Dimensions (LxWxH)	12.9 x 8.1 x 4.6″
