Audio Video Interfaces

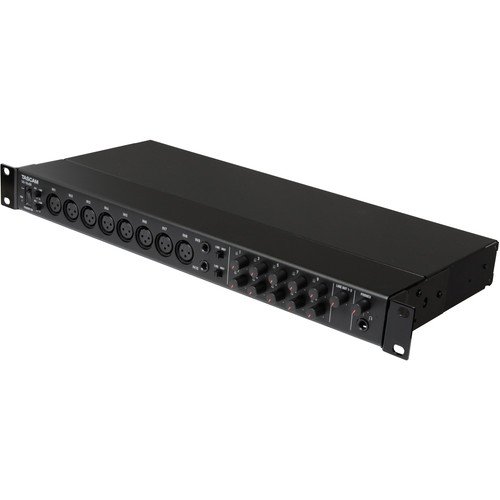

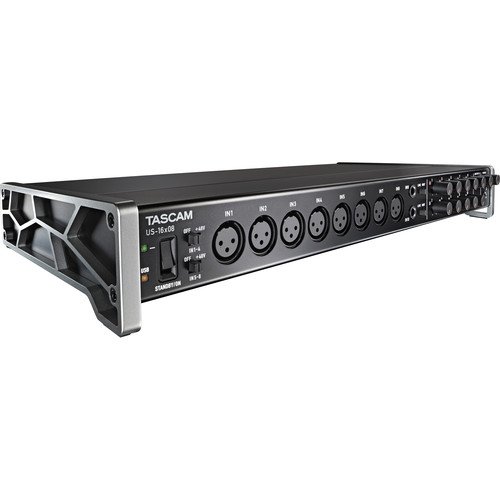

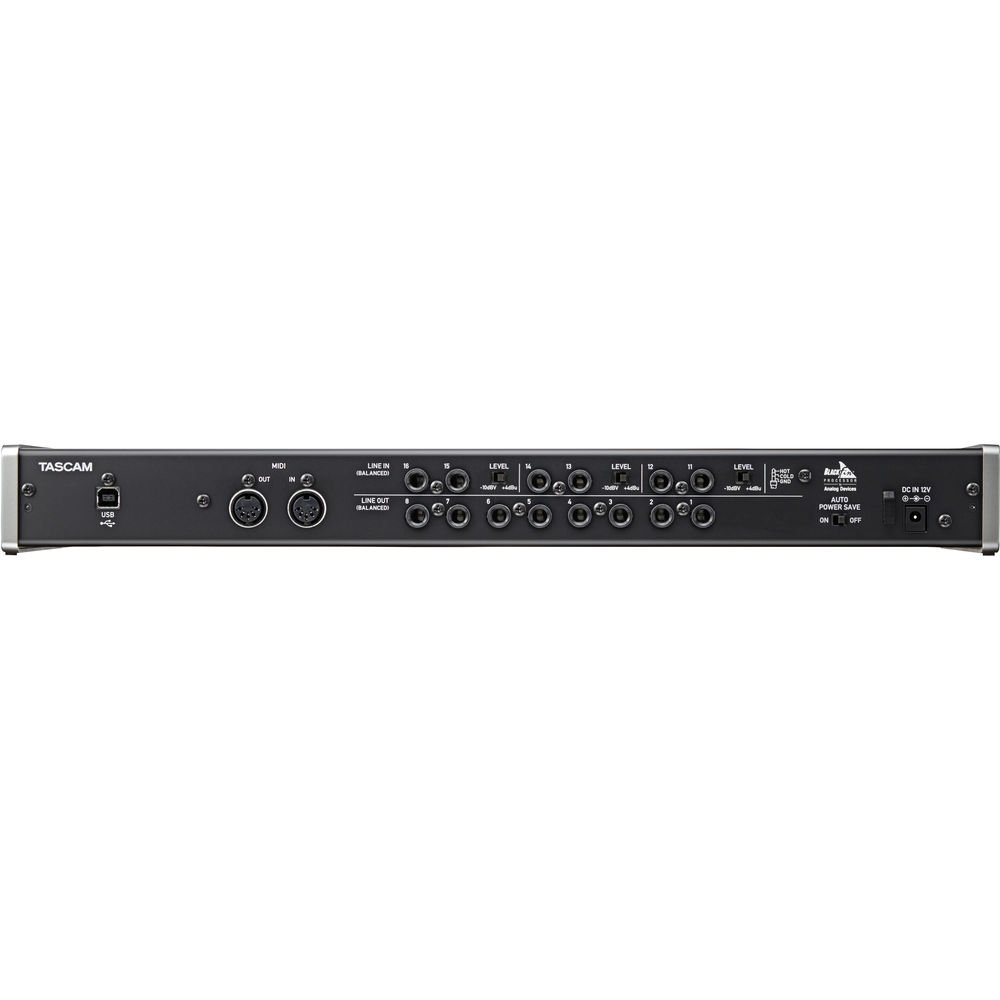

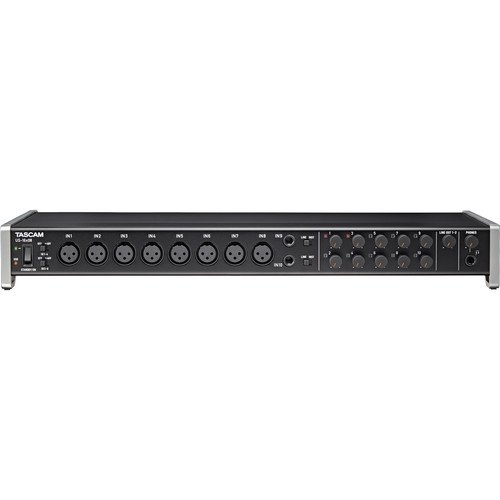

Tascam US-16×08 USB Audio Interface with MIDI

Tascam

AED 1940.40 inc VAT.

The Tascam US-16×08 USB Audio/MIDI Interface enables simultaneous recording of up to 16 channels at 24-bit/96 kHz resolution, featuring 8 ultra-HDDA preamp XLR inputs and 8 TRS line inputs, with 2 switchable to instrument level. It includes a DSP mixer with 4-band EQ and compression for each channel, providing versatile signal routing and mix customization.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: US-16x08 Categories: , Brand:

Description

Tascam US-16×08 USB Audio/MIDI Interface

Experience the ultimate in audio recording and MIDI interfacing with the Tascam US-16×08. This versatile device allows you to simultaneously record up to 16 channels in pristine 24-bit/96 kHz resolution. With 8 XLR microphone inputs featuring Ultra-HDDA preamps and 8 TRS line level inputs, including 2 switchable to instrument level for DI recording, this interface caters to a range of recording needs.

The built-in DSP mixer offers comprehensive signal routing with 4-band EQ and compression for each channel. Its clever angled design makes it ideal for desktop use, and the included rack ears provide rack-mounting options for studio environments. Moreover, the 5-pin DIN MIDI I/O expands its utility beyond audio, making it a complete MIDI interface compatible with Mac, Windows, and iOS.

Features

  • 24-bit/96 kHz Resolution
  • 8x XLR Mic Inputs & 8x TRS Line Inputs
  • DSP Monitor Mixer with EQ & Compression
  • Ultra-HDDA Microphone Preamps
  • 5-Pin DIN MIDI I/O
  • Angled Design for Desktop Use
  • Mac, Windows, iOS Compatible
  • Includes Rack Ears & USB Cable

Specifications

Specification Details
Form Factor Tabletop (Rack-Mountable with Included Hardware)
Channels of I/O 16 Input / 8 Output
Maximum Sampling Rate 96 kHz / 24-Bit
Number of Microphone Preamps 8 Preamps

Signal Processing

Specification Details
Gain/Trim Range Hi-Z Inputs: 45 dB
Line Inputs: 45 dB
Mic Inputs: 56 dB

Connectivity

Specification Details
Analog Audio I/O 8 x XLR 3-Pin Mic Input
2 x 1/4″ TRS Line/Hi-Z Input
6 x 1/4″ TRS Balanced Line Input
8 x 1/4″ TRS Balanced Line Output
1 x 1/4″ TRS Headphone Output
Phantom Power 48 V
Host Connection / USB USB Type-B (USB 2.0)
MIDI I/O 1 x DIN 5-Pin Input
1 x DIN 5-Pin Output

Performance

Specification Details
Frequency Response Line Outputs: 20 Hz to 20 kHz ±0.3 dB (at 48 kHz, JEITA), 20 Hz to 40 kHz ±0.3 dB (at 96 kHz, JEITA)
Maximum Input Level Hi-Z Inputs: +24 dBu
Mic Inputs: +8 dBu
Line Inputs: +24 dBu
Maximum Output Level Line Outputs: +24 dBu

Compatibility

Specification Details
OS Compatibility iOS 7, macOS 10.9, Windows 7, Windows 8, macOS 8.1
*As of June, 2022: check with manufacturer for the most up-to-date compatibility
Processor Requirement 2 GHz
RAM Requirements 2 GB
Required Hardware Available USB 2.0 Port
