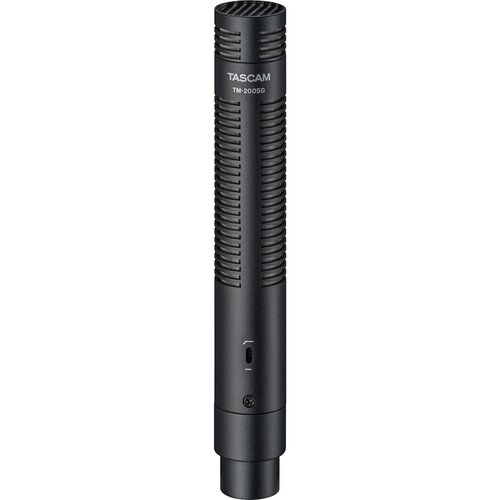

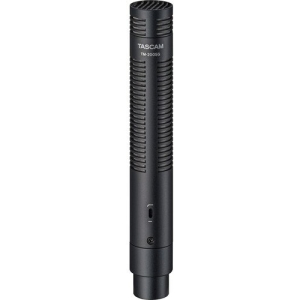

Tascam TM-200SG Short Shotgun Microphone

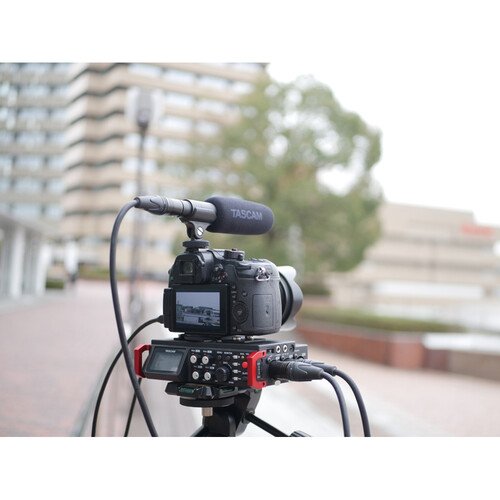

Perfectly complementing your existing XLR-equipped preamp, the Tascam TM-200SG short shotgun microphone is designed for indie filmmakers, vloggers, and videographers who need professional features on a budget. Its compact size and lightweight build ensure it fits seamlessly into your gear, whether mounted on your camera or tripod stand using the included mic holder with a shoe mount and a 1/4″ thread.
The microphone’s supercardioid condenser element ensures focused sound pickup, minimizing background noise associated with typical camera microphones. The TM-200SG boasts a frequency response of 30 Hz to 20 kHz, with a slight presence boost at 7 kHz for increased clarity. A switchable low-cut filter effectively controls low-frequency noise, such as traffic rumble, optimizing audio quality. The microphone connects via a balanced XLR 3-pin output and operates on standard 48 VDC phantom power.
Features
- Ideal for Indie Films, TV, and Documentaries
- Supercardioid Condenser Element for Focused Sound
- Phantom Powered Operation
- Switchable Low-Cut Filter
- Balanced XLR 3-Pin Output Connector
- Presence Boost at 7 kHz for Enhanced Intelligibility

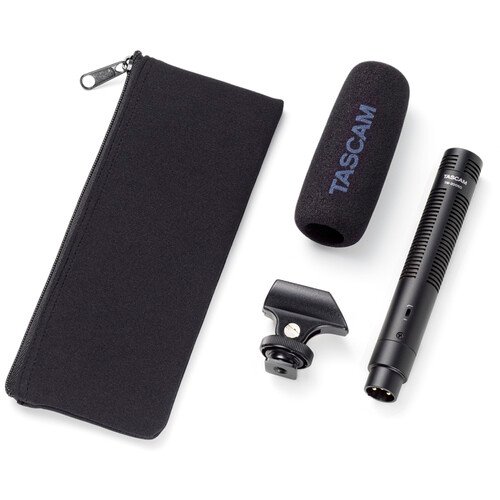

- Includes Windscreen to Reduce Wind Noise
- Compact, Lightweight Design
- Shoe/Tripod Mic Holder Included
Specifications
| Specification |
Details |
| Form Factor |
Stand/Boom Mount |
| Sound Field |
Mono |
| Operating Principle |
Pressure Gradient |
| Capsule |
Electret Condenser |
| Polar Pattern |
Supercardioid |
| Orientation |
End Address |
| Circuitry |
Solid-State |
| Pad |
None |
| High-Pass Filter |
160 Hz, 3 dB/Octave |
| Tone Adjustment |
None |
| Gain Adjustment |
None |
| Indicators |
None |
| On-Board Controls |
High-Pass Filter |
| Windscreen |
Foam (Included) |
| Specification |
Details |
| Frequency Range |
30 Hz to 20 kHz |
| Maximum SPL |
132 dB SPL (1 kHz, 1% THD) |
| Impedance |
200 Ohms ± 30% at 1 kHz |
| Sensitivity |
-40 dBV/Pa at 1 kHz |
| Signal-to-Noise Ratio |
74 dB (1 kHz) |
| Specification |
Details |
| Output Connectors (Analog) |
1 x XLR 3-Pin Male (on Mic) |
| Headphone Connector |
None |
| Specification |
Details |
| Operating Voltage |
48 V (Phantom Power) |
| Specification |
Details |
| Mounting |
Camera/Shoe-Mount (with Included Hardware) |
| Mounting Thread Size |
1/4″-20 Female |
| Included Case |
Soft Case |
| Included Filters |
None |
| Dimensions |
ø: 0.9 x L: 6″ / ø: 23 x L: 153 mm |
| Weight |
1.9 oz / 53 g |
| Specification |
Details |
| Package Weight |
0.39 lb |
| Box Dimensions (LxWxH) |
8 x 4 x 2″ |
