Tascam SS-CDR250N 2-Channel Network CD and Media Recorder

Tascam

AED 5654.25 inc VAT.

The Tascam SS-CDR250N is a two-channel networking CD and media recorder designed for professional environments, featuring networking capabilities and optional Dante integration. It supports WAV, MP3, SD/SDHC/SDXC, USB memory, and CD formats, and is equipped with parallel and RS-232C serial control, balanced and unbalanced I/O, and coaxial digital I/O. Ideal for broadcast and installation applications, it offers up to 20 tracks of flash start in a compact one rack-space unit.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: SS-CDR250N Categories: , Brand:

Description

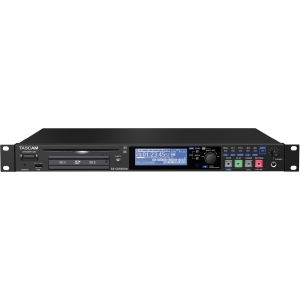

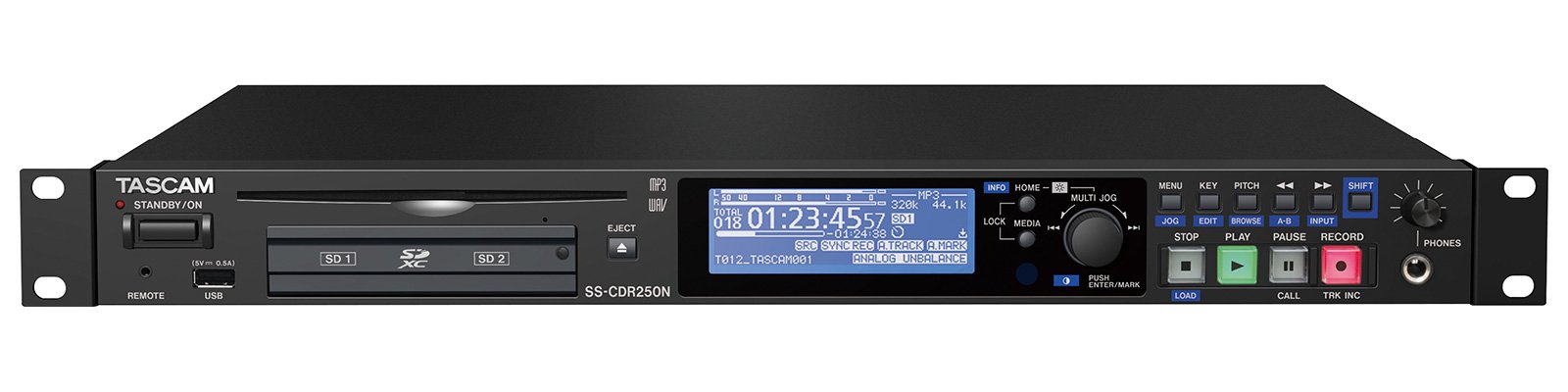

Tascam SS-CDR250N Two-Channel Networking CD and Media Recorder

The Tascam SS-CDR250N is a versatile two-channel networking CD and media recorder designed for professional use in various commercial environments. This solid-state recorder offers features that cater to broadcast and contractor installation markets, allowing recordings in multiple formats including WAV, MP3, SD/SDHC/SDXC, USB memory, and CD applications. An optional IF-DA2 Dante card can be integrated to connect seamlessly into Dante audio networks.

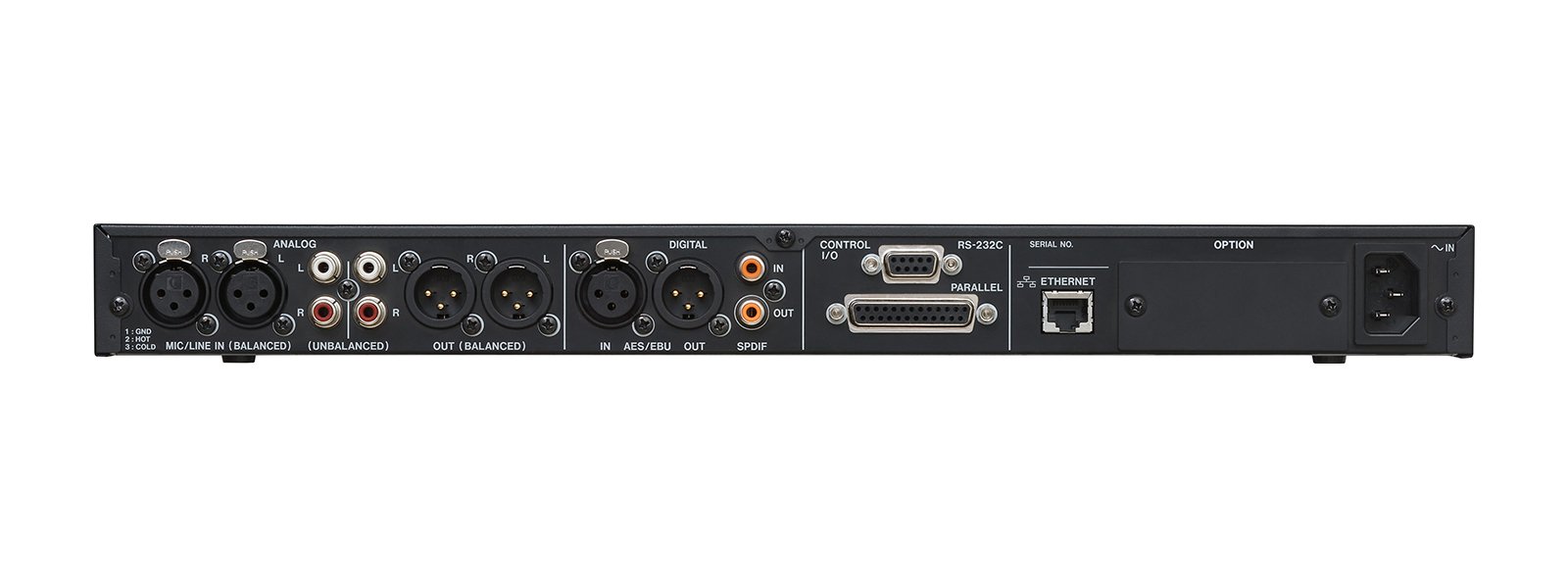

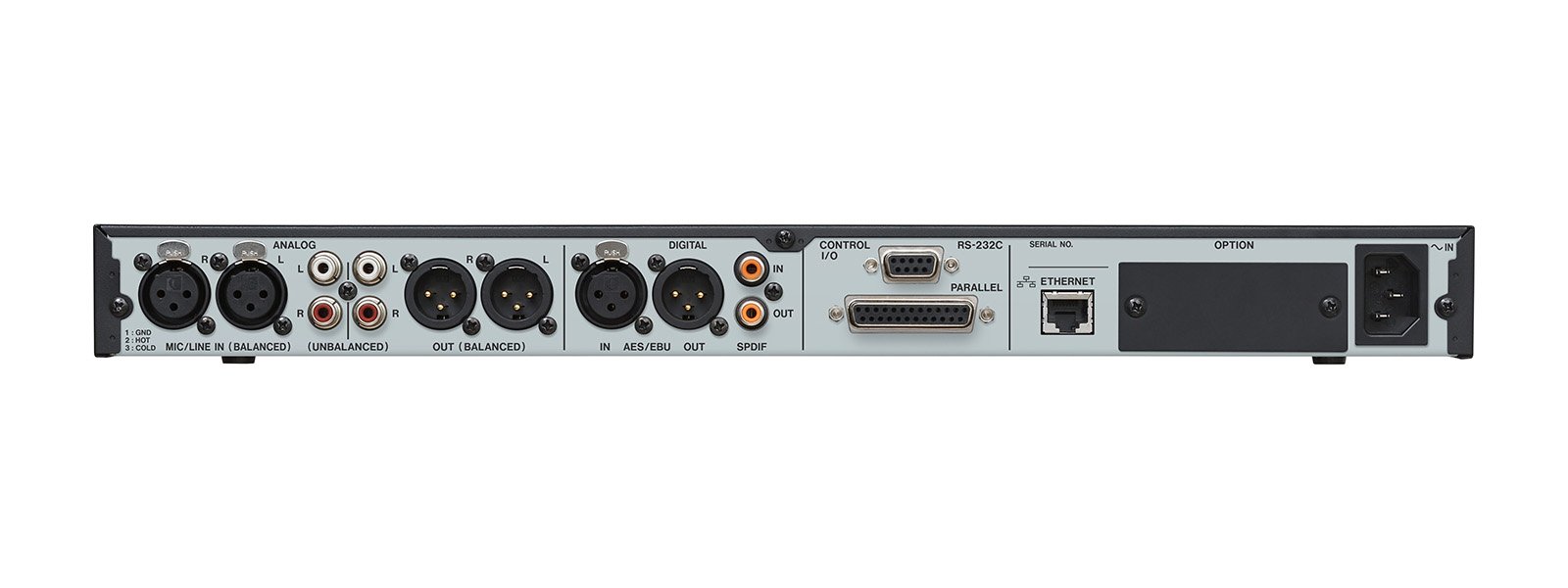

Equipped with parallel and RS-232C serial control, the SS-CDR250N supports up to 20 tracks of flash start. It includes balanced and unbalanced I/O, as well as coaxial digital I/O, making it an all-encompassing solution for media recording within a compact, single rack-mountable space.

Key Features

  • Balanced and unbalanced analog I/O (XLR and RCA jacks)
  • AES/EBU and S/PDIF digital connectivity
  • Supports diverse media storage options including SD cards, USB flash drives, and CD media
  • Automatic file close function to prevent data loss due to power interruptions
  • Optional Dante card for connecting to Dante audio networks
  • Up to 20 track flash start capability with comprehensive control interfaces
  • Ethernet support for control and file transfer operations
  • FTP client and server functions for server uploads and remote media management
  • Graphic LCD display for clear time, level, and menu information
  • Robust security options including password protection and file encryption
  • Free mobile app for iOS and Android for remote operation

Specifications

Form Factor Rackmount
Number of Tracks 2
Maximum Simultaneous Tracks 2 x Recording
Maximum Sampling Rate 44.1 kHz / 16-Bit

Connectivity

Analog Audio I/O 1 x 1/4″ TRS Headphone Output
1 x Stereo RCA Coaxial Unbalanced Input
1 x Stereo RCA Coaxial Unbalanced Output
2 x XLR 3-Pin Balanced Mic/Line Input
2 x XLR 3-Pin Balanced Output
Digital Audio I/O 1 x XLR 3-Pin AES3 Input
1 x RCA Coaxial S/PDIF Input
1 x XLR 3-Pin AES3 Output
1 x RCA Coaxial S/PDIF Output
USB (Non-Host) 1 x USB Type-A (USB 2.0)
Network I/O 1 x RJ45 Ethernet (100BASE-TX)
Other I/O 1 x 1/8″ / 3.5 mm TRS Remote Input
1 x DB-25 Control/Parallel
1 x DE-9/DB-9 RS-232
1 x 2.5 mm TRS Remote Input

Performance

Frequency Response 20 Hz to 20 kHz ±0.5 dB (JEITA)
Maximum Input Level Analog Inputs: +20 dBu
Control Inputs: +5.5 V
Line Inputs: +6 dBV
Maximum Output Level Analog Outputs: +20 dBu, +6 dBV
Headphone Output Power 45 mW per Channel into 32 Ohms (Max, 0.1% THD)
Impedance Analog Inputs: 22 Kilohms
XLR Outputs: 100 Ohms
RCA Outputs: 200 Ohms
Dynamic Range 95 dB (JEITA)
SNR ≥ 95 dB (JEITA)
THD ≤ 0.005% (JEITA)
Crosstalk 95 dB (JEITA)

Digital Audio

Audio File Formats MP3, WAV
Sample Rates 44.1 / 48 / 96 kHz (WAV, Playback)
44.1 / 48 kHz (MP3, Playback)
44.1 / 48 / 96 kHz (WAV, Record)
44.1 / 48 kHz (MP3, Record)
Bit Depths 16 / 24-Bit (WAV)
Bit Rates 64 to 320 kb/s (MP3)

Audio Storage & Playback

Supported Media SD Card, SDHC Card, SDXC Card, USB Flash Drive, CD-R, CD-R-DA, CD-RW, CD-RW-DA
Supported Media Capacity SD: 512 MB Minimum to 2 GB Maximum
SDHC: 4 GB Minimum to 32 GB Maximum
SDXC: 128 GB Minimum
USB Flash Drive: 512 MB Minimum to 64 GB Maximum

Power

Power Requirements AC Input
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption 23 W (Maximum)

Physical

Operating Temperature 41 to 95°F / 5 to 35°C
Dimensions 19 x 1.8 x 11.9″ / 482.6 x 44.5 x 301 mm
Weight 6.4 lb / 2.9 kg

Packaging Info

Package Weight 10.65 lb
Box Dimensions (LxWxH) 21.6 x 15.6 x 5.5″
