Tascam SERIES 8p Dyna 8-Channel Microphone Preamp with Analog Compressor and Digital I/O

Tascam

AED 2915.85 inc VAT.

The Tascam SERIES 8p Dyna is a 1 RU rackmountable mic preamp designed for studio and stage use, featuring selectable analog compression, low-noise preamps, dual S/MUX optical ports, and per-channel selectable +48V phantom power, making it suitable as an expansion device, a front-end for DANTE setups, or a standalone front end.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: SERIES 8p Dyna Categories: , , Brand:

Description

Tascam SERIES 8p Dyna Mic Preamp

Designed for both studio and stage applications, the Tascam SERIES 8p Dyna is a versatile 1 RU rackmountable mic preamp that offers selectable analog compression on each channel, dual S/MUX optical ports, and adjustable +48V phantom power on a per-channel basis. This makes it an excellent choice for expanding S/MUX equipped interfaces, enhancing DANTE setups, or even as a standalone front-end unit.

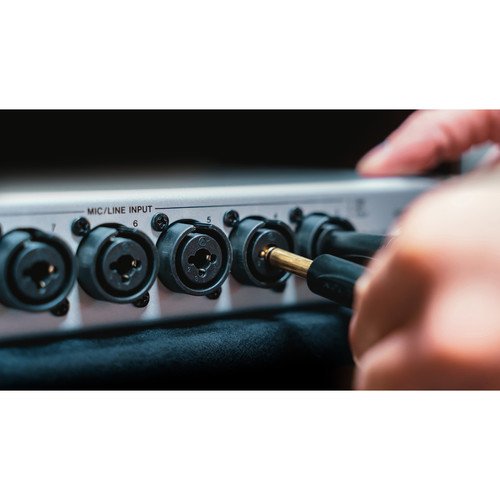

The front panel features two combination XLR-1/4″ input jacks suitable for microphones, line levels, or instruments. The rear panel includes six additional XLR-1/4″ combination jacks for line or mic inputs, eight 1/4″ line outputs, and a DB25 connector for all eight analog outputs. Additionally, BNC wordclock I/O and optical ports are conveniently located at the back.

For added convenience, the front panel offers individually switched 48V phantom power and comprehensive metering with digital peak and level meters. The unit comes with its own dedicated power supply.

Key Features

  • Mic, Instrument & Line Inputs
  • Ideal for Recording or Live Use
  • Eight Mic Preamps with Analog Compression
  • Selectable +48V Phantom Power
  • Eight Mic/Line Inputs, Two Instrument Inputs
  • Eight 1/4″ TRS Line Outputs
  • DB25 Output Connector
  • Optical S/MUX & ADAT
  • Wordclock I/O via BNC Sockets
  • Includes Dedicated Power Supply

Specifications

Specification Details
Sampling Frequency 44.1, 48, 88.2, 96, 176.4, and 192 kHz
Bit Rate 24-Bit
Input Connections 8 x XLR-1/4″ Combination Jacks
Input Impedance Mic Input: 2.3 kΩ; Instrument Input: 1 MΩ or More; Line Input: 10 kΩ
Input Gain Mic: -58 dBu to -6 dBu; Instrument: -58 dBV to -6 dBV; Line: -48 dBu to +4 dBu
Gain Range 52 dB
Maximum Input Level Mic: +10 dBu; Instrument: +10 dBV; Line: +24 dBu
Output Connections 8 x 1/4″ TRS Line Outputs, Balanced; 1 x DB25 Connector
Output Impedance Analog Output: 100 Ω or Less; Line Output: 230 Ω or Less; Load Impedance: 2 kΩ or More
Output Level Nominal: +4 dBu; Maximum: +20 dBu
Digital Audio Connectors Optical I/O, Supports S/MUX2 at 88.2 and 96 kHz, S/MUX4 at 176.4 and 192 kHz
Word Clock I/O 2 x BNC Sockets
Power 12 VDC (Dedicated AC Adapter)
Power Consumption 16 W
Dimensions 19 x 1.8 x 9″ / 48.2 x 4.4 x 22.8 cm
Weight 5.7 lb / 2.6 kg
