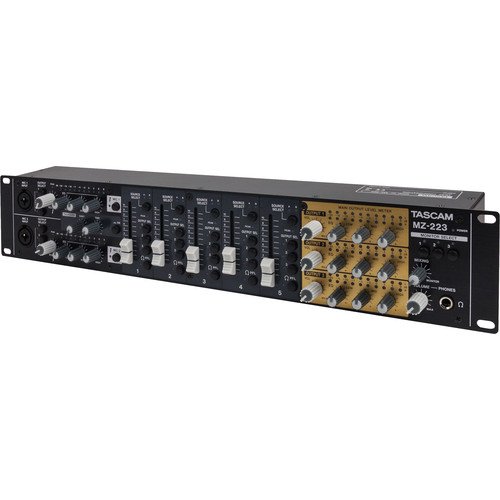

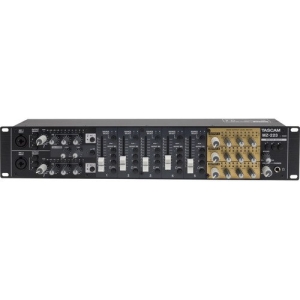

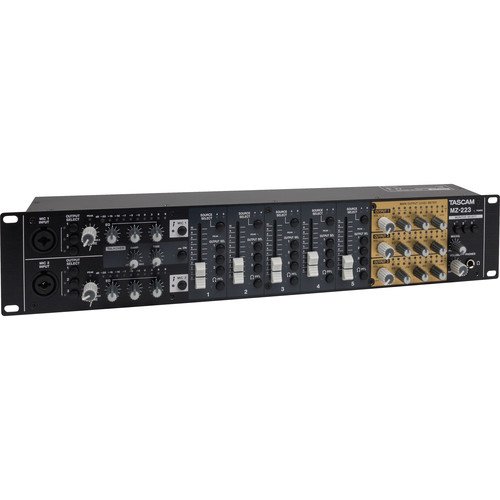

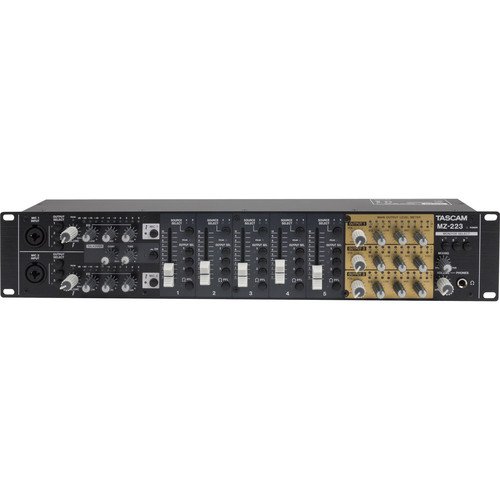

Tascam MZ-223 Zone Mixer

Tascam

AED 1992.90 inc VAT.

The Tascam MZ-223 is a high-quality multi-channel, multi-zone mixer designed for small to medium-sized installations like hotels, restaurants, meeting rooms, schools, and places of worship, offering independent audio routing for music, microphones, phonographs, and more, with intuitive front panel controls and sliders.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: MZ-223 Categories: , , Brand:

Description

Tascam MZ-223 Industrial-Grade Multi-Zone Mixer

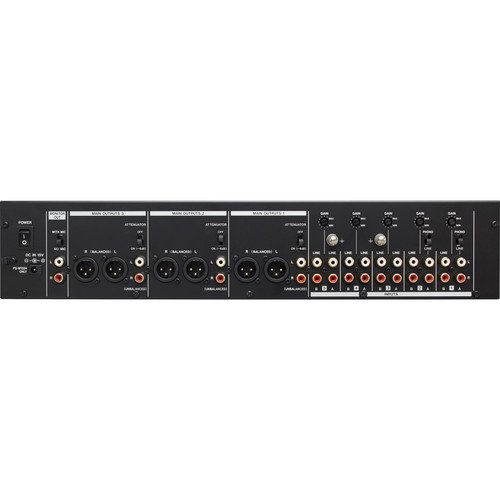

The Tascam MZ-223 offers unparalleled functionality and flexibility for any small to moderate-sized venue. Ideal for hotels, restaurants, meeting rooms, schools, houses of worship, or any scenario where meticulously controlled audio routing is essential, this multi-zone mixer integrates various sources with ease. Front panel sliders and assignment controls provide straightforward operation, while the comprehensive rear panel connectors facilitate versatile connectivity.

Key Features

  • Five Input Channels with RCA Pairs
  • Triple Output Options with XLR and RCA
  • Two Microphone Inputs (Combo XLR-1/4″)
  • Dedicated 3-Band EQ on Mics and Outputs
  • Talkover Function for Automatic Ducking
  • Separate Headphone and Monitor Outputs
  • Complete with Power Supply

Specifications

Specification Details
Mic Input Connectors: 2 x XLR-1/4″ / 6.35 mm combo
Input Impedance: 33 kOhms
Nominal Input Level: -65 dBu (max volume) to -10 dBu (min volume)
Gain Range: 55 dB
Line Inputs Connectors: 10 x RCA pairs (2 per channel)
Nominal Input Level: -10 dBV
Max Input Level: 10 dBV
Input Impedance: 22 kOhms
Main Outputs Unbalanced: 3 x RCA pairs, Rated -10 dBV, Max 6 dBV, Output Impedance 200 Ohms
Balanced: 3 x XLR pairs, Rated 4 dBV, Max 24 dBV, Output Impedance 200 Ohms
Monitor Outputs 1 x RCA pair, Rated Output Level -16 dBV, Max 0 dBV, Output Impedance 200 Ohms
Headphone Output 1 x 1/4″ / 6.35 mm TRS, Max Output 50 mW + 50 mW (into 32 Ohms load)
Frequency Response 20 Hz to 20 kHz
Distortion 0.03%
Crosstalk 65 dB
Power Dedicated AC Adapter PS-M1524
Input Voltage: 100 to 240 VAC, 50/60 Hz
Output Voltage: 15 VDC
Output Current: 2.4 A
Power Consumption 35 W
Dimensions 19.0 x 3.5 x 3.7″ / 48.2 x 8.8 x 9.3 cm (including protrusions)
Weight 5.5 lb / 2.5 kg

Packaging Info

Specification Details
Package Weight 6.8 lb
Box Dimensions (LxWxH) 20.3 x 6.5 x 5.9″
