Tascam Matrix Mixer MX-8A 8-Input 8-Output with DSP

Tascam

AED 4404.75 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: MX-8A Categories: , Brand:

The TASCAM MX-8A is a versatile Matrix Mixer featuring 8 mic/line inputs and 8 line outputs, with integrated DSP for audio optimization across different settings. It includes custom control apps for simple setup and adjustments, catering to both system integrators and users.

Description

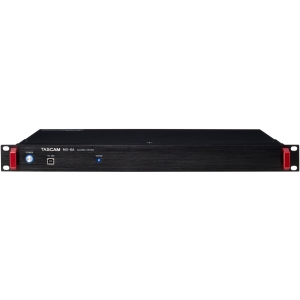

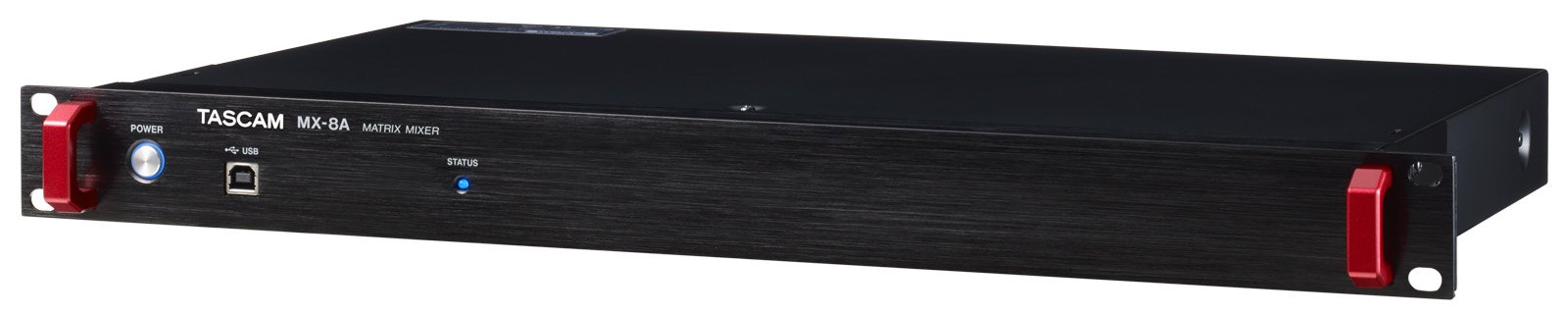

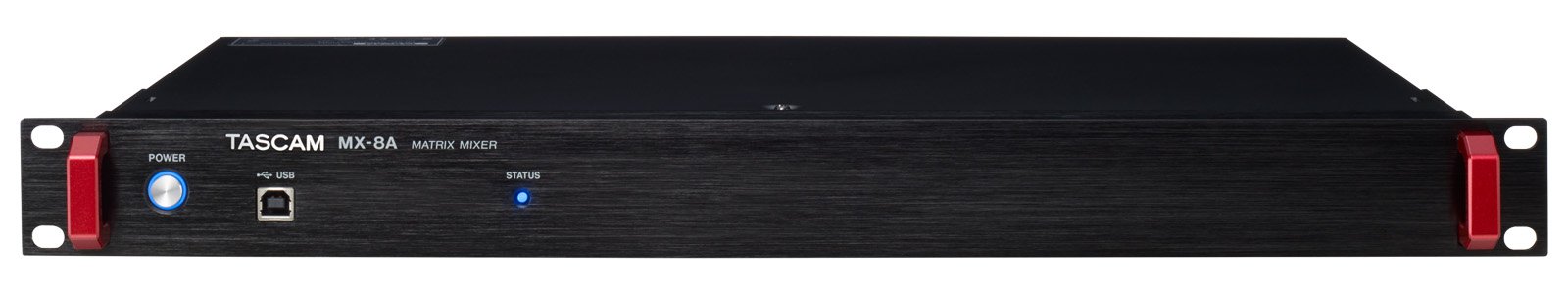

TASCAM MX-8A Matrix Mixer

The TASCAM MX-8A is an advanced Matrix Mixer designed to provide precise audio optimization across various environments, accommodating a wide range of setups with its 8 mic/line inputs and 8 line outputs. This unit integrates a powerful DSP to ensure high-quality audio performance, offering flexibility and control for both professional system integrators and end users through custom control apps.

Key Features

  • 8-channel mic/line input with phantom power (+48v) support
  • Supports remote mic gain control
  • 8 line output channels

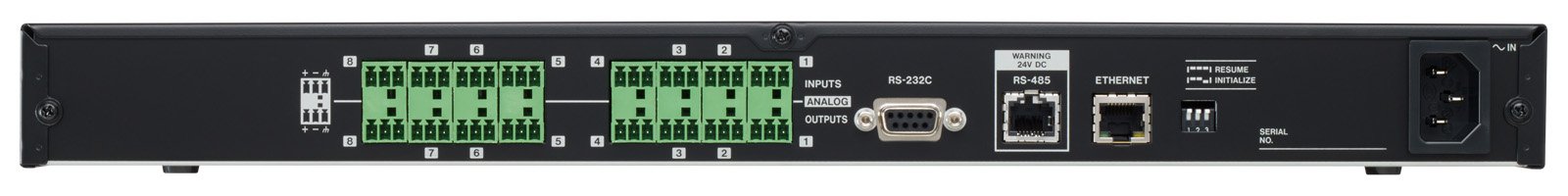

  • Equipped with Euroblock connectors for secure signal input/output
  • Compatible with external software on Windows, macOS, Android, and iOS for audio playback and recording
  • DSP functions for optimal audio performance across different scenes and environments
  • Scene preset function with up to 50 configurable presets
  • Future update will include a timer event function for automatic scene switching
  • 2 user control software options: TASCAM MX CONNECT for integrators and TASCAM EZ CONNECT for end-users
  • RS-232C and RS-485 connectors for enhanced remote control capabilities
  • Supports remote control via Ethernet
  • 1U rack-mountable size for convenient integration
  • Indicators for operational status and control software connectivity

Specifications

FORMAT 44.1k / 48k Hz, 16bit / 24bit
USB 4-pin USB B-type, USB2.0 High Speed (480Mbps)
Analog IN Euroblock (Balanced) 3.81mm pitch, min input level: -70dBu, max input level: MIC +26dBu, LINE +24dBu, input impedance: 2.2kΩ or higher
Analog OUT Euroblock (Balanced) 3.81mm pitch, nominal output level: +4dBu / +6dBu, max output level: up to +24dBu, output impedance: 200Ω or lower
RS-232C D-sub 9-pin (female, inch-standard)
RS-485 RJ-45, Category 5e or faster STP cables
Ethernet RJ-45, TCP/IP, 100BASE-TX, Category 5e or faster STP cables
Power AC100-240V, 50/60 Hz, 21W consumption
Dimensions 483(W) × 45(H) × 304.1(D)mm (including protrusions)
Weight 3.0kg
Operating temperature range 0-40°C
Included items Power cord, Euroblock plug (16), Cable band kit, Rackmount screw kit, Owner’s Manual (with warranty)
