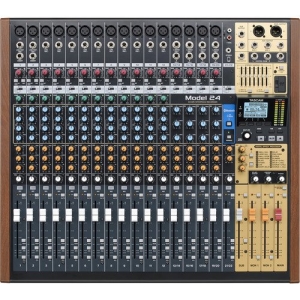

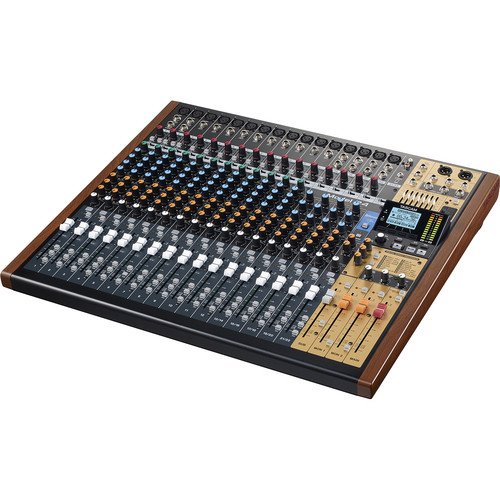

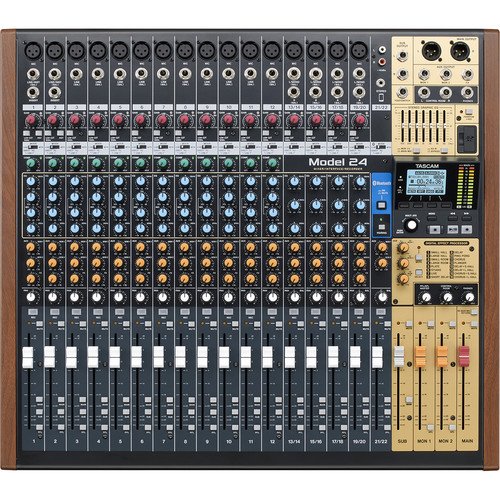

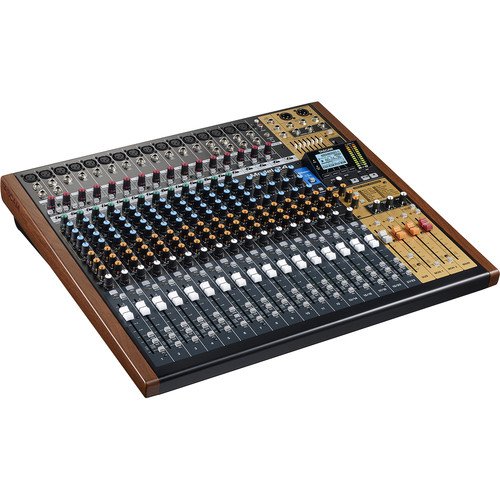

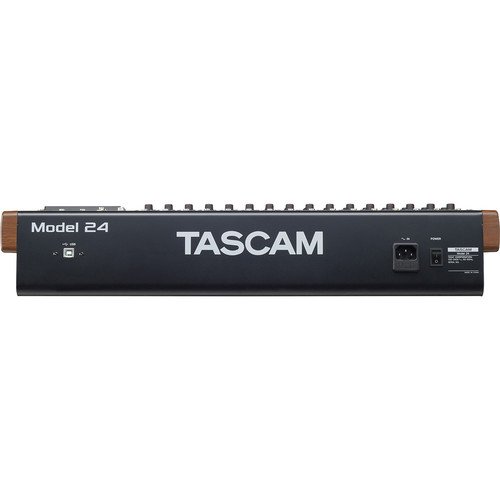

Tascam Model 24 Digital Mixer Recorder USB Audio Interface

Tascam

AED 5779.20 inc VAT.

The Tascam Model 24 is a hybrid mixer, recorder, and audio interface designed for varied applications including live performances, recording, and broadcasting. It features 22 input channels with 16 microphone preamps, Hi-Z jacks, mono and stereo line inputs, and the flexibility to connect via Bluetooth, USB, RCA, or a 3.5mm jack, catering to bands, studios, conferences, and more.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: Model 24 Categories: , Brand:

Description

The highly flexible Tascam Model 24 is a powerful, versatile, hybrid mixer/recorder/audio interface for both live and recording applications, well suited for bands, studios, conferences, podcasts, houses of worship, and more. The full-featured professional mixer offers 22 input channels including 16 microphone preamps with phantom power, two 1/4″ Hi-Z jacks, 12 balanced 1/4″ mono line inputs, and four balanced 1/4″ stereo line inputs. Additionally, the last stereo input also accepts signals from a variety of sources including Bluetooth, USB, RCA, or a 3.5mm stereo mini jack.

There is single-knob compression available on the first 12 channels, while three auxiliary sends provide signal routing to a dedicated monitor and to one of 16 onboard multi-FX effects. The main and sub stereo buses offer simple grouping, as well as a selectable 7-band graphic EQ for fine tuning your mix. The Model 24 offers 21 faders, with 100mm of throw for quick and immediate mixing moves. Each channel may be assigned to receive audio from the live inputs, the internal multitrack recorder, or the USB 2.0 audio interface, allowing for versatility in any environment.

Key Features

22 x Input Channels Allows extensive input flexibility
16 x Microphone Preamps Provides clear and powerful sound
20 x Line Inputs Great connectivity for a range of devices
Single-Knob Compressor Quick and easy compression control
7-Band GEQ Fine-tunes main or monitor outputs
3 x Aux Sends + Built-In Multi-FX Flexible routing and effects options
24-Track Recorder and Playback Comprehensive recording capabilities
USB 2.0 Audio Interface 24-in and 22-out configuration
Wireless Bluetooth Connectivity Stream audio wirelessly to the mixer

Specifications

Specification Details
Form Factor Tabletop
Number of Tracks 24 (22 Inputs + Stereo Mix)
Maximum Simultaneous Tracks 22 x Recording
Maximum Sampling Rate 48 kHz / 24-Bit
Gain/Trim Range -10 dB to +40 dB (Channels 1 to 12)
-20 dB to +30 dB (Channels 13 to 20)
Mic Inputs: Up to 50 dB
High-Pass Filter 100 Hz, 18 dB/Octave
EQ Parameters Mono Channels: ±15 dB at 12 kHz (Shelving)
Mid: ±15 dB at 100 Hz to 8 kHz, 0.55 Q (Semi-Parametric)
Low: ±15 dB at 80 Hz (Shelving)
Built-In Effects 7 x Reverb, 2 x Mono Delay, 1 x Stereo Delay, Chorus, Flanger, 2 x Delay+Reverb, 2 x Chorus+Reverb
Analog Audio I/O 20 x 1/4″ TRS Balanced Line Input
16 x XLR 3-Pin Balanced Mic Input
1 x 1/8″ / 3.5 mm TRS Unbalanced Stereo Input
1 x Stereo RCA Coaxial Unbalanced Input
1 x 1/4″ TRS Headphone Output
Phantom Power 48 V
Host Connection / USB 1 x USB Type-B (Class-Compliant USB 2.0)
Wireless Connectivity Bluetooth
Audio File Formats Recording: BWF, WAV
Playback: BWF, WAV
Sample Rates 44.1 / 48 kHz
Bit Depths 16 / 24-Bit
Supported Media USB Hard Disk Drive
Memory Card Slot 1 x SDXC
Supported Media Capacity SD: 512 MB Minimum to 2 GB Maximum
SDHC: 4 GB Minimum to 32 GB Maximum
SDXC: 64 GB Minimum to 512 GB Maximum
File System Support SD: FAT16
SDHC: FAT32
SDXC: exFAT
OS Compatibility macOS 10.11 / 10.12 / 10.13
Windows 7 / 8.1 / 10
Power Requirements AC Input
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption 52 W
Operating Temperature 41 to 95°F / 5 to 35°C
Dimensions 22.7 x 20.2 x 4.4″ / 575.8 x 513.1 x 112.5 mm (with Side Panel)
20.3 x 19.8 x 4.4″ / 514.6 x 502.9 x 112.5 mm (without Side Panel)
Weight 22.0 lb / 10.0 kg
Package Weight 31.5 lb
Box Dimensions (LxWxH) 25.25 x 25 x 8.75″
