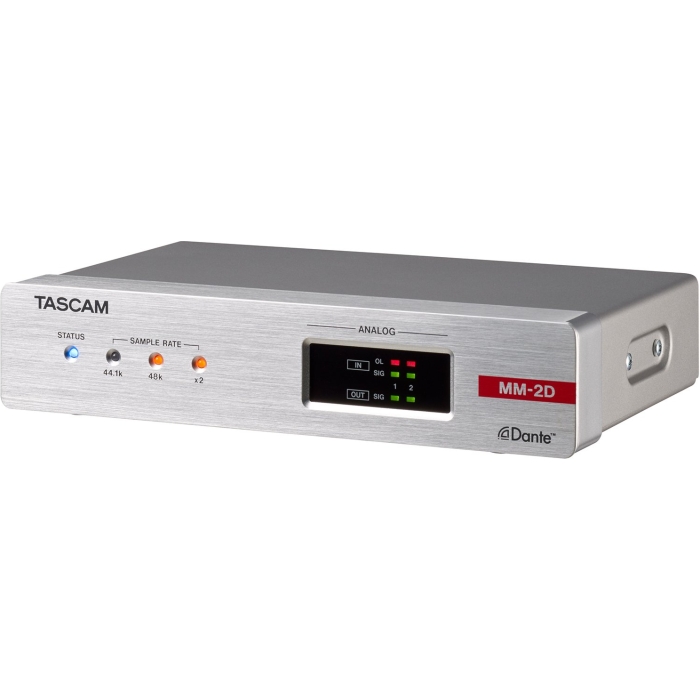

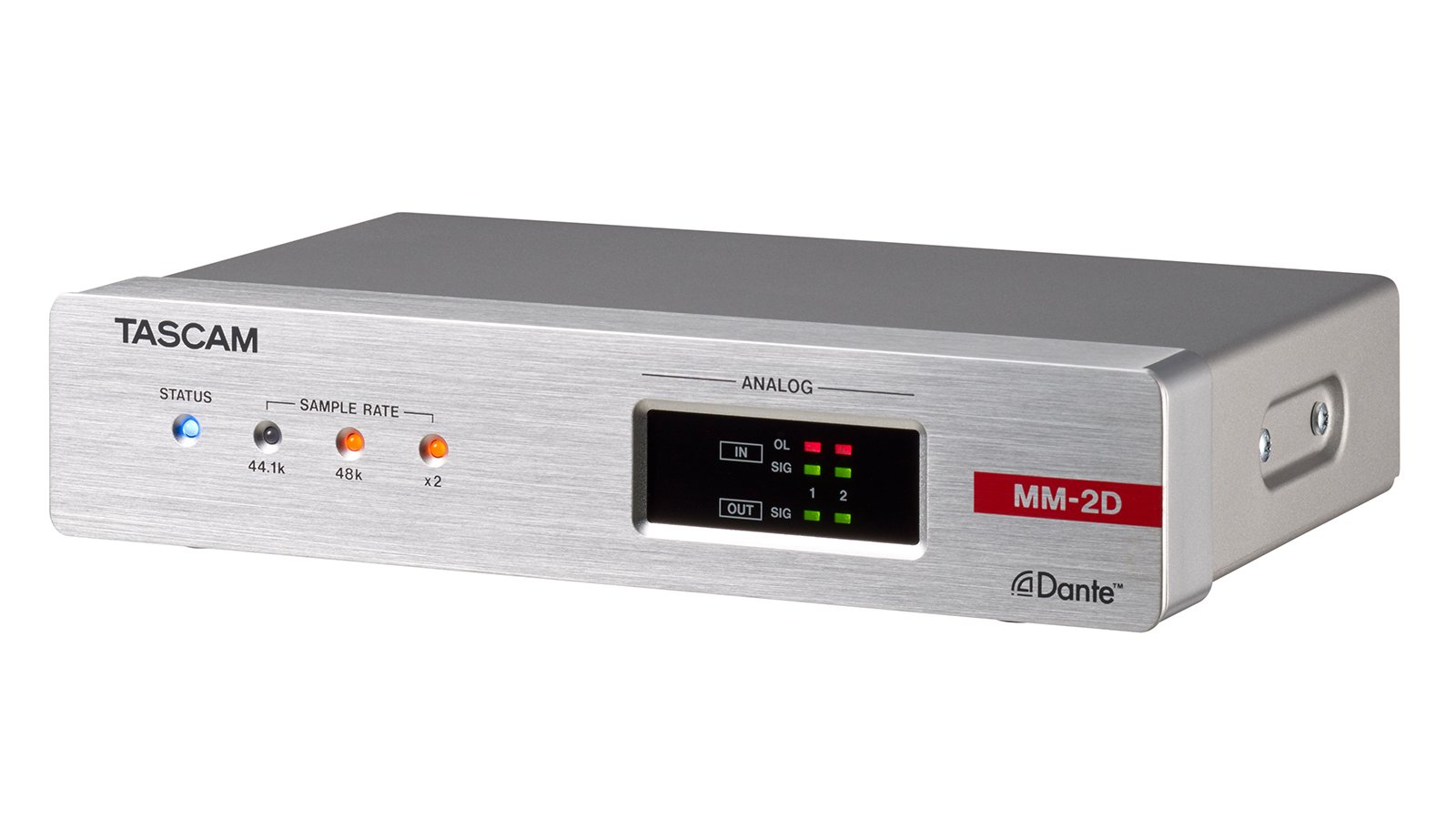

MM-2D-X Audio Converter

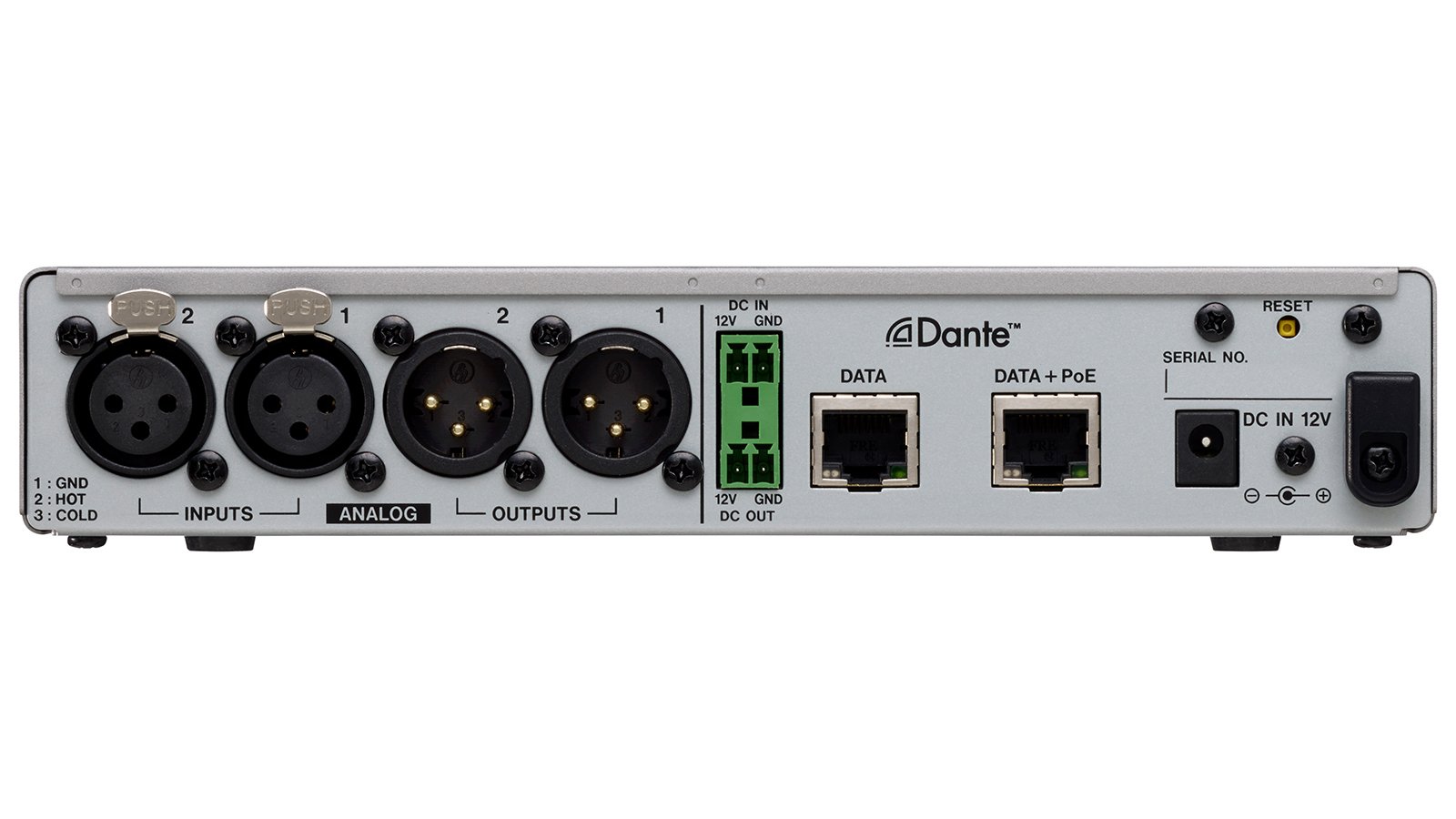

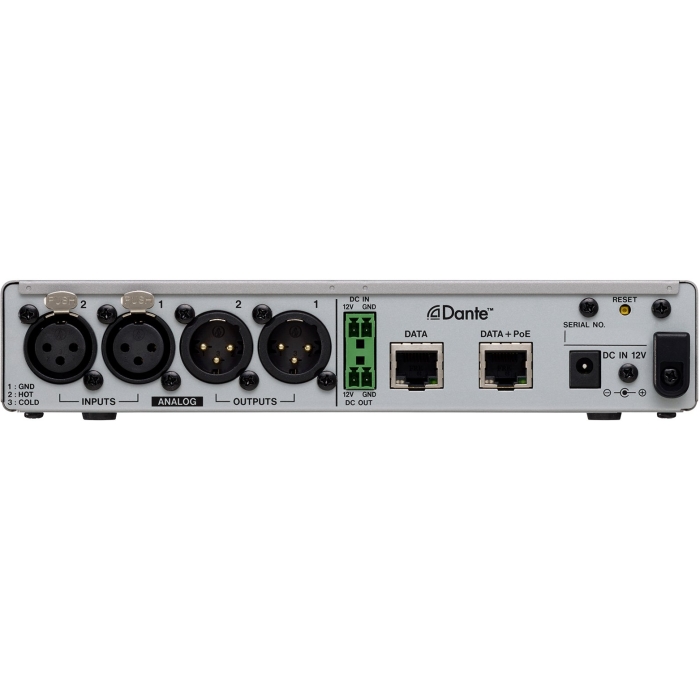

The MM-2D-X is a compact and versatile converter designed to convert 2-channel mic/line input/output signals into Dante signals. Its half-rack size enables seamless integration into various Dante systems, serving as an exceptional analog output unit. The built-in DSP mixer ensures superior performance for small-scale systems, compatible with multiple input/output models in the TASCAM Dante Compact Processor Series. Supporting up to 96kHz/24bit, the MM-2D-X uses XLR connectors for its analog mic/line inputs and outputs.

Product Features

• Two-channel mic/line input with phantom power support (+48V)
• Remote mic gain control functionality
• Two line output capability
• Four Dante inputs/outputs
• PoE (Power over Ethernet) support
• A wide range of DSP functions for optimal use in various environments
• Dante daisy chain support, allowing connection of two processors without a network switch
• Compatibility with Dante Domain Manager and Dante AES67 Mode
• Flexible scene preset function supporting up to 50 presets
• Timer event function (future update expected)
• User control software available for Windows, Mac, iOS, and Android:
• For integrators: Input/output routing selection, DSP/design/scene settings
• For end-users: Simple app for basic functions like area volume settings
• Remote control accessible via Dante
• Half-rack mountable size

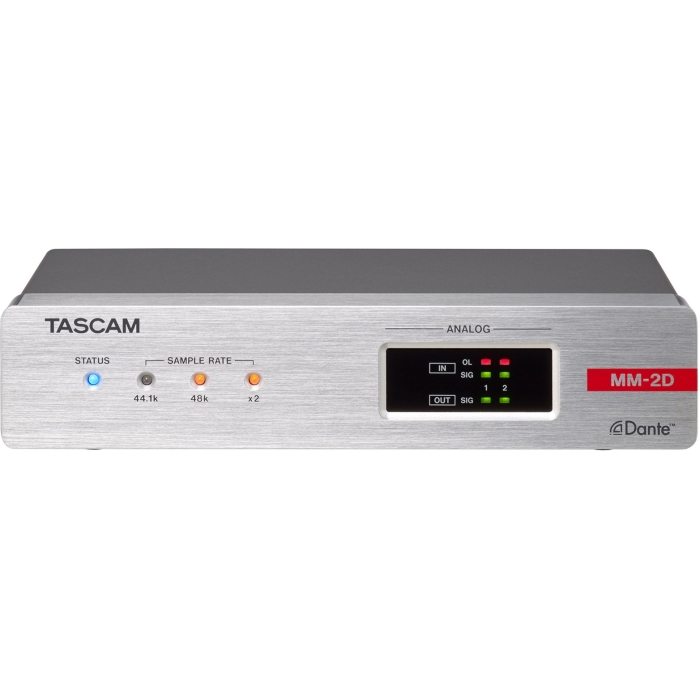

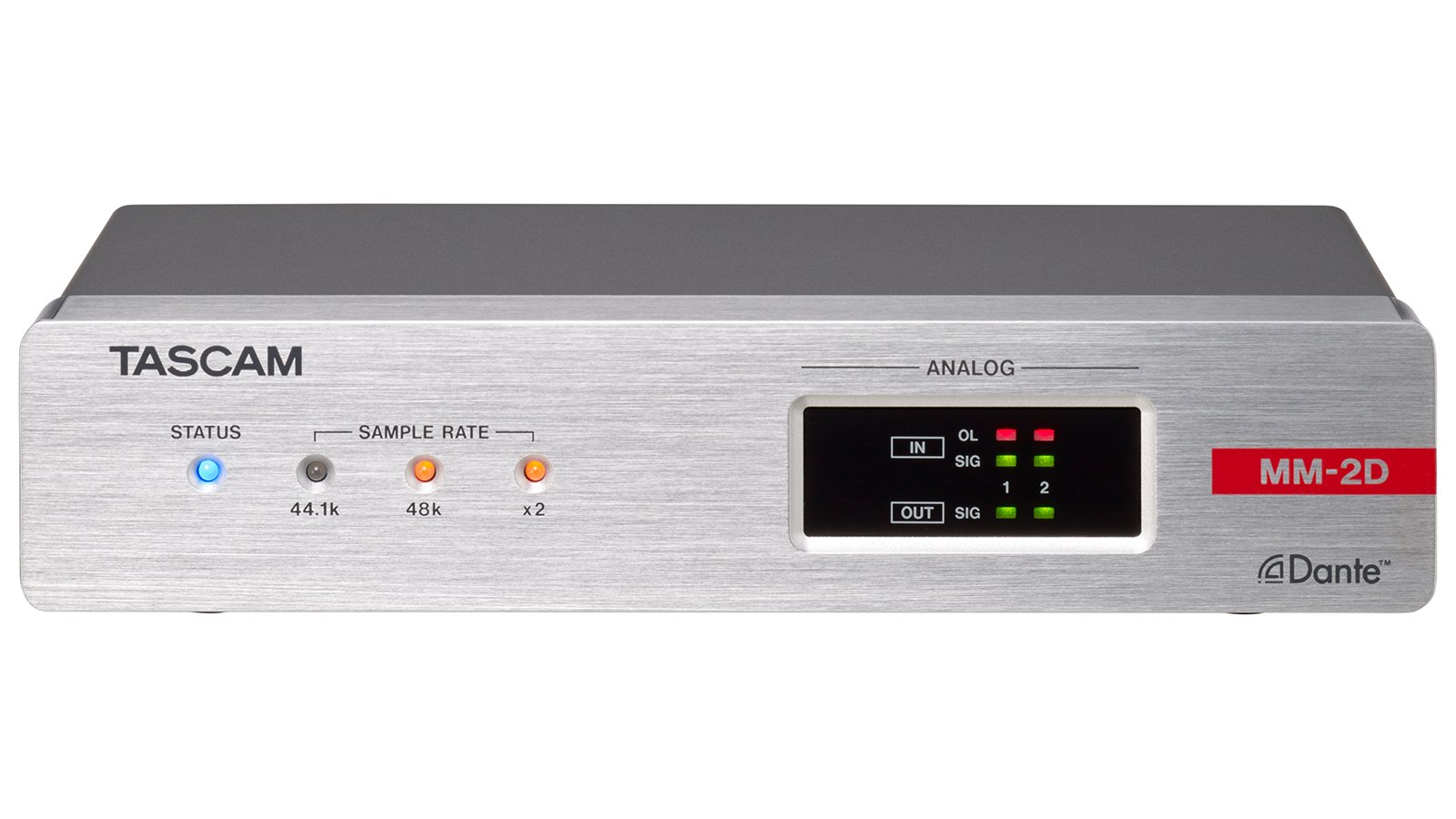

• Indicators for LAN/Dante connection status and sample rate
• Signal indicators for monitoring line input/output signals
• Configurable reference level (via remote control only)
• Surface rack mountable installation angles included
• Optional accessories:
• AC adapter PS-P1220E for redundant power supply
• Rack-mountable shelf AK-RS1 for mounting two processors in a 19-inch rack
