Name: Tascam ML-4D/OUT-X 4-Channel Line Output Dante Converter with DSP Mixer
Brand: Tascam
SKU: ML-4D/OUT-X
Price: 3188.85 AED
Availability: InStock

Tascam ML-4D/OUT-X 4-Channel Line Output Dante Converter with DSP Mixer

AED 3188.85 inc VAT.

The ML-4D/OUT-X is a compact, high-quality converter designed to transform Dante input signals into 4-channel line outputs. Half the size of a standard 1U rack, this unit is ideal for various Dante systems, offering an analog output solution. It features a built-in DSP mixer and supports up to 96kHz/24-bit signals, using XLR connectors for reliable analog line outputs.

In stock

Estimated Delivery: 2–3 business days across the UAE
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

SKU: ML-4D/OUT-X Categories: AV, Electronics Audio Brand: Tascam

Description

The ML-4D/OUT-X is a compact converter that converts Dante input signals into 4-channel line output signals. With half the size of a standard 1U rack, the ML-4D/OUT-X is suitable for different Dante systems as an exquisite analog output unit. The built-in DSP mixer enables small scale systems to fully perform with a variety of input/output models the TASCAM Dante Compact Processor Series offers. ML-4D/OUT-X supports up to 96kHz/24bit and uses XLR connectors for analog line output.

Features

4 line output
4 Dante input/output
Supports PoE (Power over Ethernet)
Up to 24bit/96kHz
Includes a variety of DSP functions for optimal use in different scenes/environments (Output effects, 4 in/4 out matrix mixer)
Supports Dante daisy chain; this allows two Dante Compact Processor models to be connected without a network switch
Compatible with Dante Domain Manager and Dante AES67 Mode
Flexible scene preset function allows to work in different area situations (Up to 50 presets)
Timer event function allows to automatically switch scenes at a specified time (planned to be compatible on a future version update)
2 types of user control software available for Windows/Mac/iOS/Android devices:

For integrators: input/output routing selection, DSP/design/scene settings of the complete system, etc.
For end-users: simple app design for only the necessary functions such as area volume settings, etc.

Remote control via Dante
Half-rack mountable size

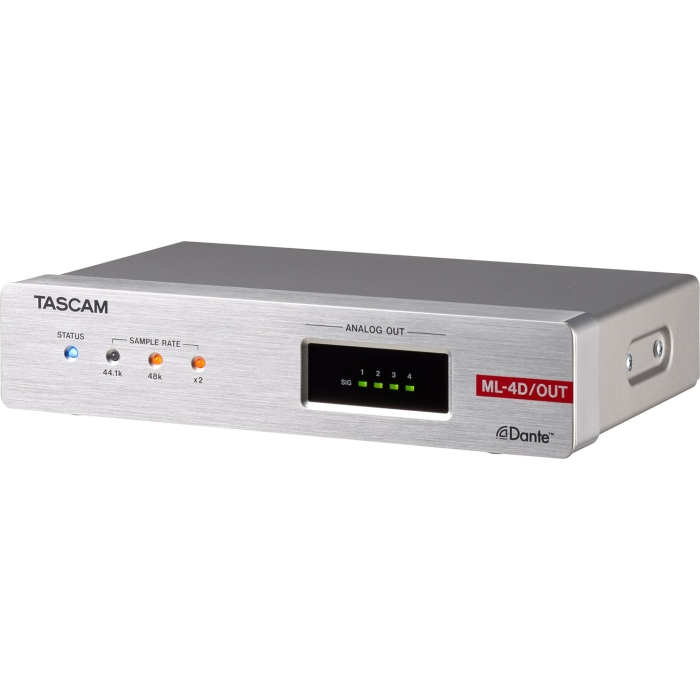

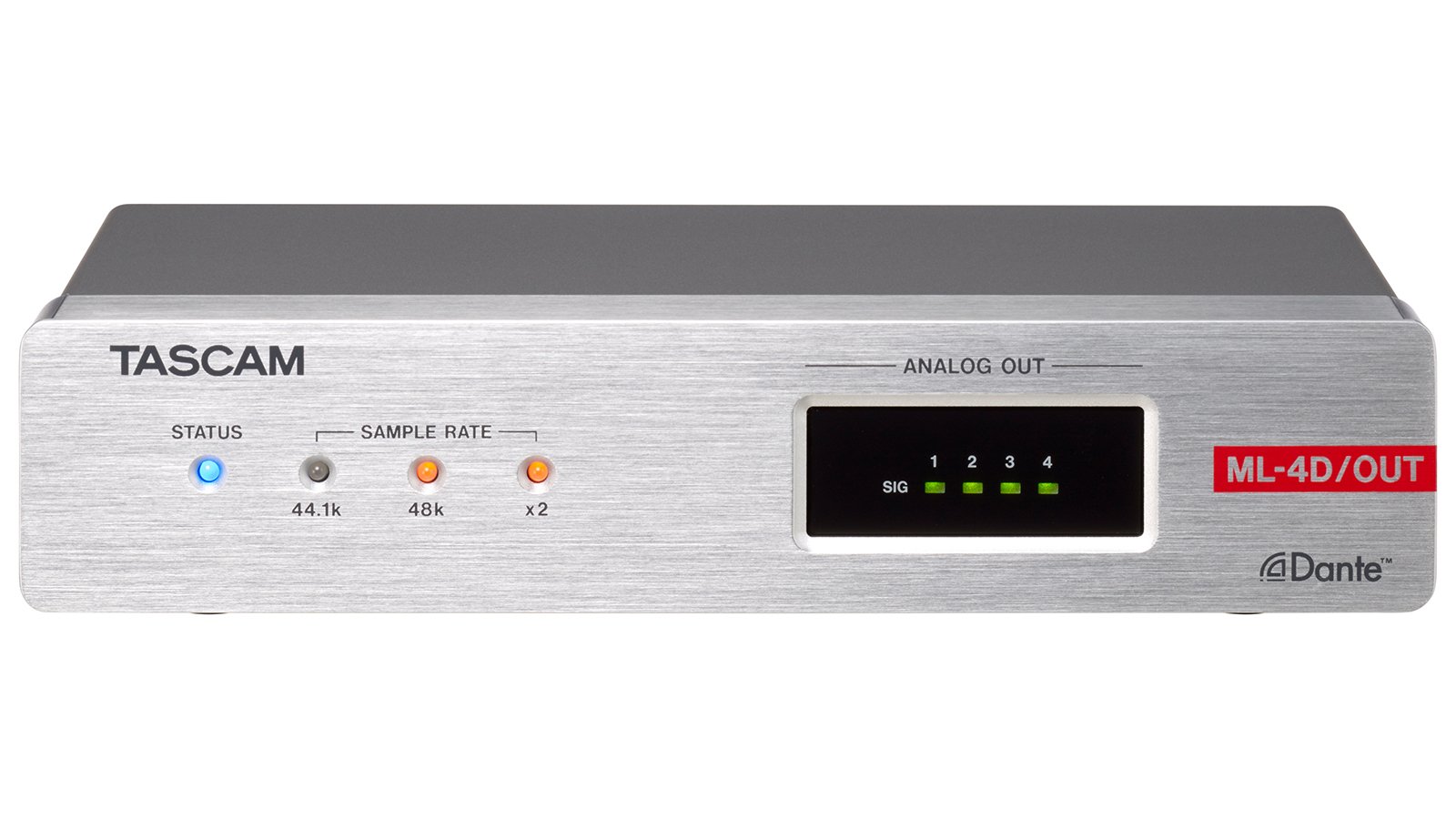

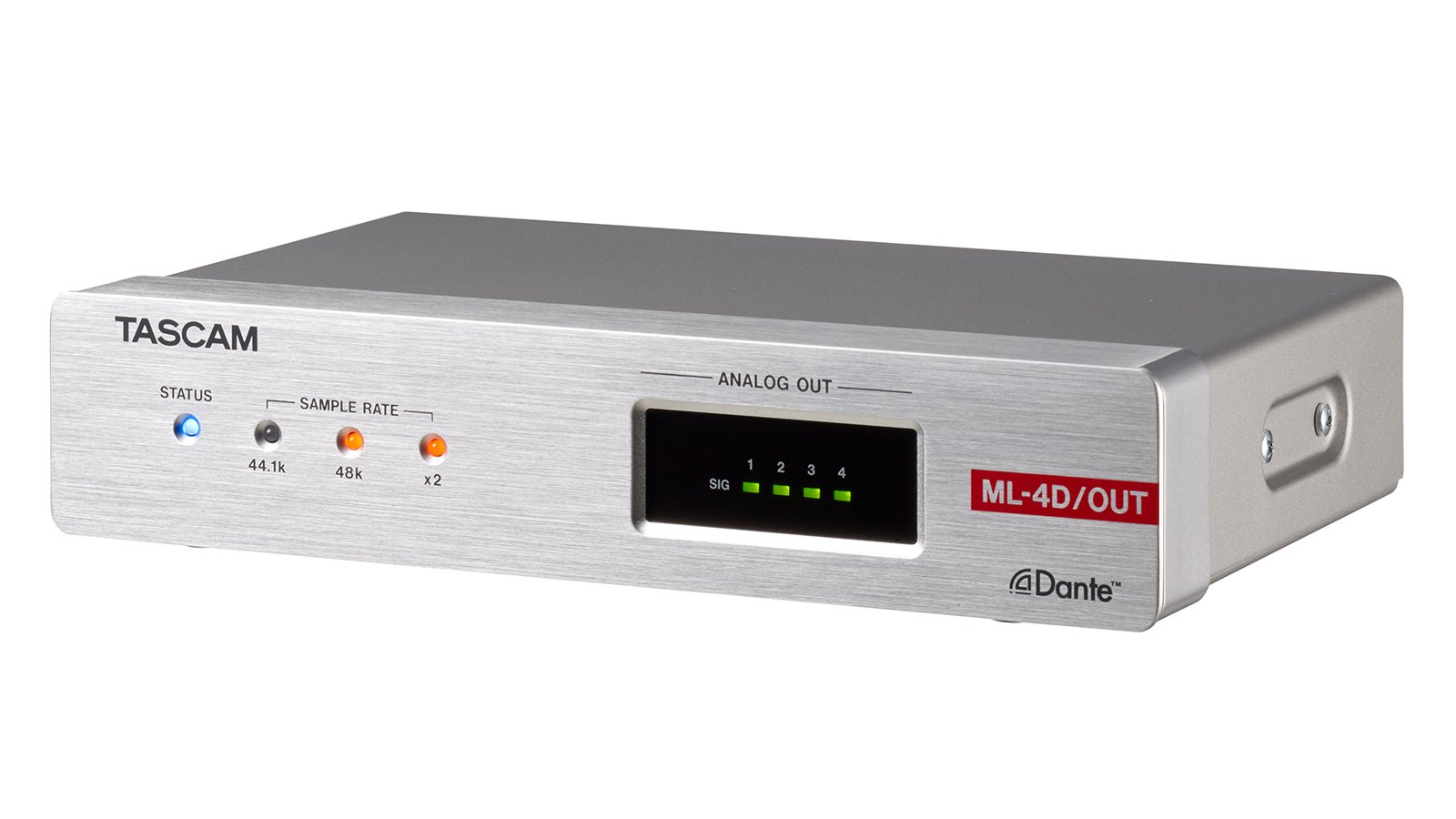

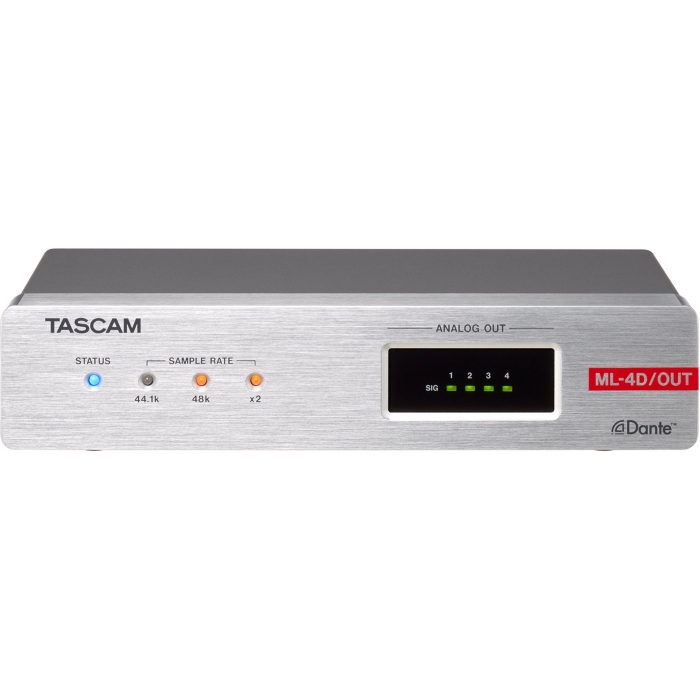

Equipped with indicators that show LAN/Dante connection status and sample rate
Equipped with signal indicators that monitor line output signals
Configurable reference level (via remote control only)
Surface rack mountable angles for installation under desks included
Optional accessories:

AC adapter PS-P1220E for redundant power supply available
Rack-mountable shelf AK-RS1 to install and store two Dante Compact Processor models in a 19 inch rack case

Specifications

General
Formats and channels	44.1/48/88.2/96kHz,16/24-bit, 4 channels
Input/output ratings
DATA/DATA+PoE connectors
Connector	RJ-45
Transmission protocol	Dante
Gigabit Ethernet standard	1000BASE-T (IEEE 802.3ab)
Cables	category 5e or faster STP cables

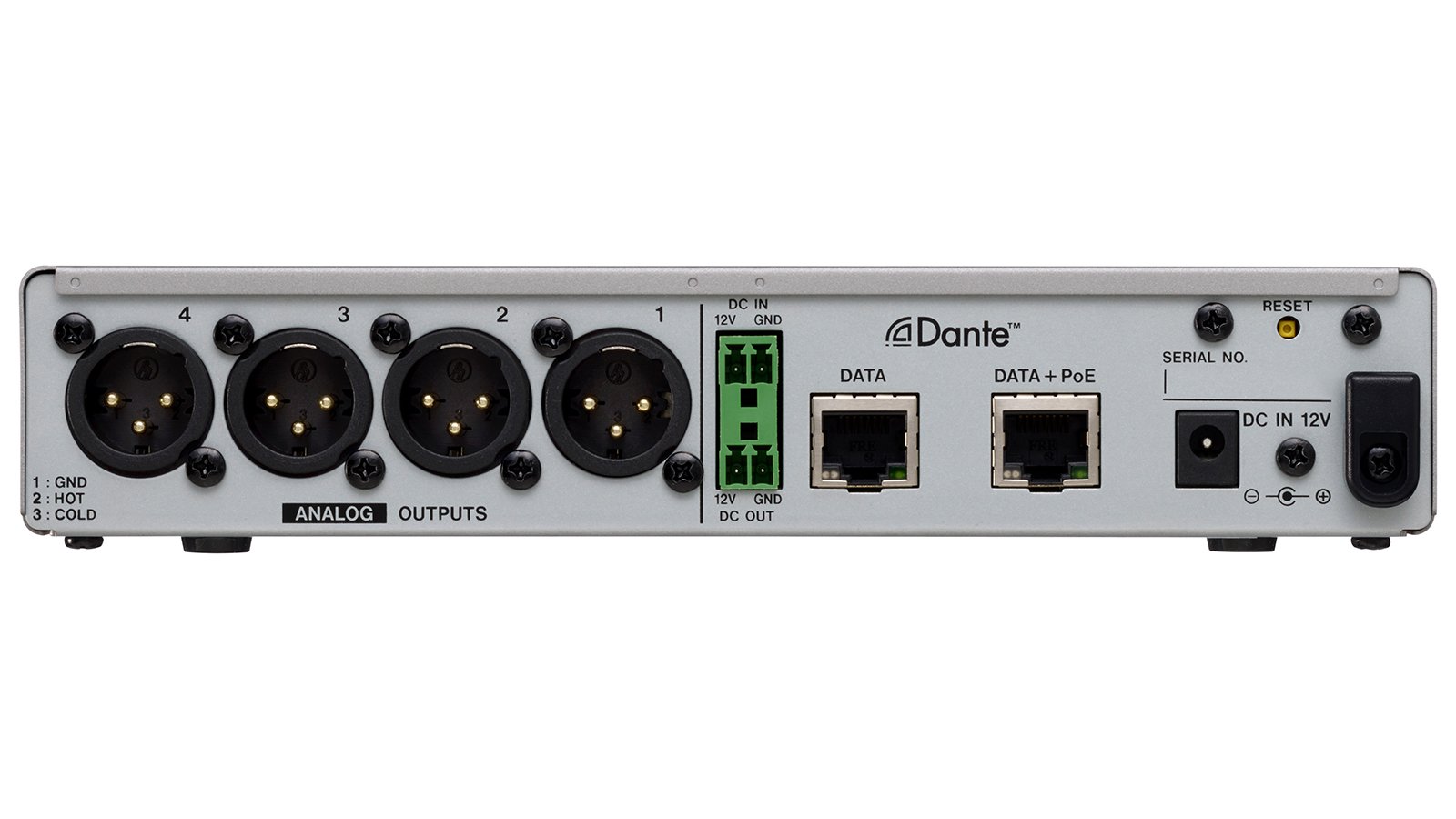

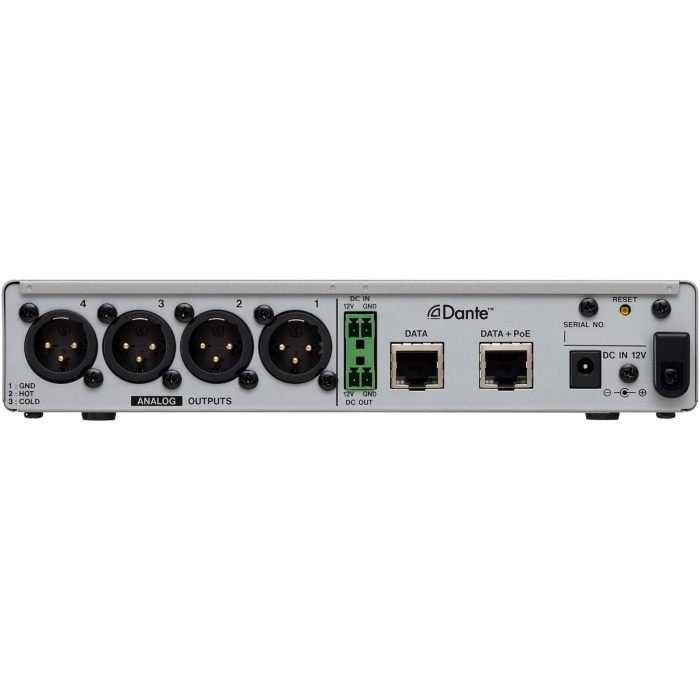

ANALOG OUT connectors
Connector	XLR-3-32 (1: GND, 2: HOT, 3: COLD)
Nominal output levels	+4 dBu (when Ref. Level not -9 dBFS), +6 dBu (when Ref. Level set to -9 dBFS)
Maximum output level (switchable)	+15 dBu (Ref. Level: -9 dBFS), +18 dBu (Ref. Level: -14 dBFS), +20 dBu (Ref. Level: -16 dBFS), +22 dBu (Ref. Level: -18 dBFS), +24 dBu (Ref. Level: -20 dBFS)
Output impedance	200 Ω or lower
Other
Power	PoE class 0, TASCAM PS-P1220E AC adapter (sold separately)
Power consumption	4W
Dimensions	214 x 44.45 x 136.1 mm (W x H x D, including protrusions)
Weight	863 g
Operating temperature range	0°C-40°C
Included items	Installation brackets, Owner’s manual (including warranty)

Audio performance

DANTE IN → LINE OUT
Frequency response	+/-0.5 dB: 20 Hz – 20 kHz(44.1/48kHz sampling frequency, JEITA), +/-0.5 dB: 20 Hz – 40 kHz(88.2/96kHz sampling frequency, JEITA)
Distortion (THD+N)	0.002 %(when -1 dBFS input, 44.1/48/88.2/96kHz sampling frequency, JEITA)
S ratio	108 dB (44.1/48/88.2/96kHz sampling frequency, JEITA)
Crosstalk	100 dB (44.1/48/88.2/96kHz sampling frequency, JEITA)
Dynamic range	108 dB (44.1/48/88.2/96kHz sampling frequency, JEITA)
