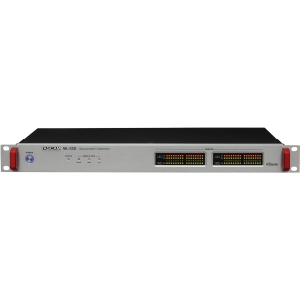

Tascam ML-32D Dante / Analog Converter

Experience seamless analog and digital audio integration with the Tascam ML-32D Dante / Analog Converter. This advanced converter allows you to insert or extract analog audio into or out of a Dante network using external breakout devices equipped with D-Sub format connectors.

Product Features

• Intuitive interface for connection to a Dante audio network.
• Supports 32-channel analog line input and output (48 kHz / 96 kHz) through 8 D-Sub connectors.
• Dual Ethernet jacks for primary and secondary connections.
• Delivers up to 24-bit / 96 kHz audio quality.

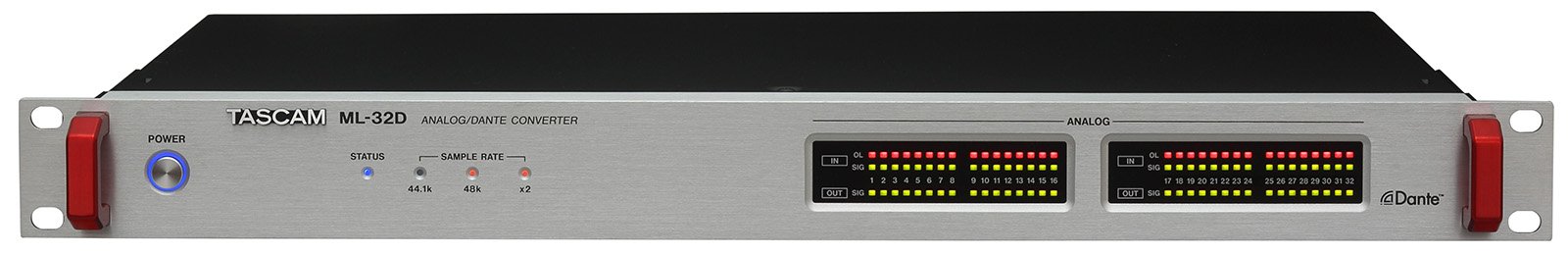

• LED display indicating signal level and overload per channel.
• Reference level dip switches for selectable dBu level metering.
• Firmware updates via Dante port for continuous improvement.
• Compatible with AES67 and Revenna.

Specifications

Technical Specifications

Specification	Details
Form Factor	Rackmount
Channels of I/O	32 Input / 32 Output
Maximum Sampling Rate	96 kHz / 24-Bit
Number of Mic Preamps	None

Connectivity

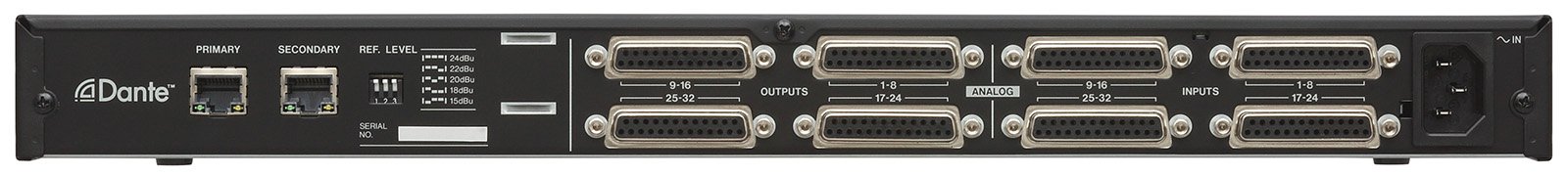

Analog Audio I/O	4 x DB-25 25-Pin 8-Channel Input, 4 x DB-25 25-Pin 8-Channel Output
Digital Audio I/O	None
Network I/O	2 x RJ45 Dante
MIDI I/O	None

Performance

Frequency Response	20 Hz to 20 kHz +0.1/-0.5 dB (at 48 kHz), 20 Hz to 40 kHz +0.1/-0.5 dB (at 96 kHz)
Impedance	≥ 10 Kilohms (DB-25 Inputs)
SNR	113 dB
THD+N	0.001%
Crosstalk	> 115 dB

Digital Audio

Sample Rates	44.1 / 48 / 88.2 / 96 kHz
Bit Depths	16 / 24-Bit

Power

AC Input Power	100 to 240 VAC, 50 / 60 Hz
Power Consumption	22 W

Physical

Rackmount Size	1 RU
Operating Temperature	32 to 104°F / 0 to 40°C
Dimensions	19 x 12 x 1.8″ / 483 x 303.8 x 45 mm
Weight	7.7 lb / 3.5 kg

Packaging Info

Package Weight	11.55 lb
Box Dimensions (LxWxH)	21.6 x 16.9 x 5.9″
