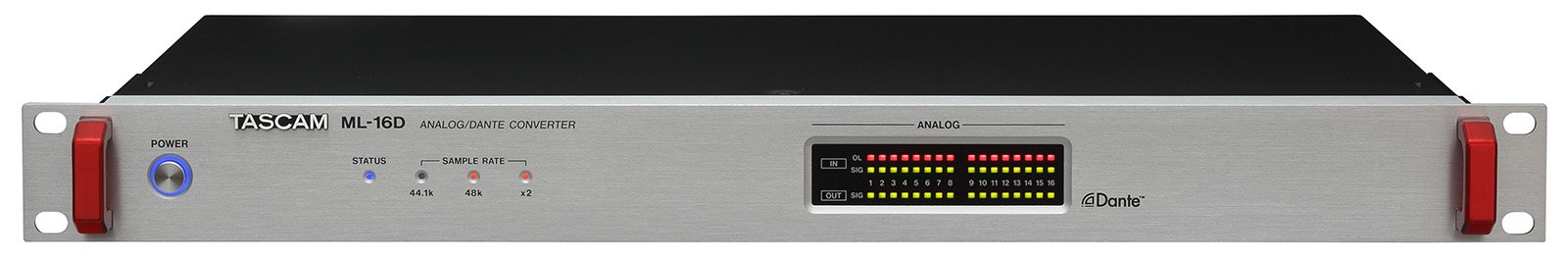

Tascam ML-16D 16-Channel Analog to Dante Converter

Tascam

AED 8360.10 inc VAT.

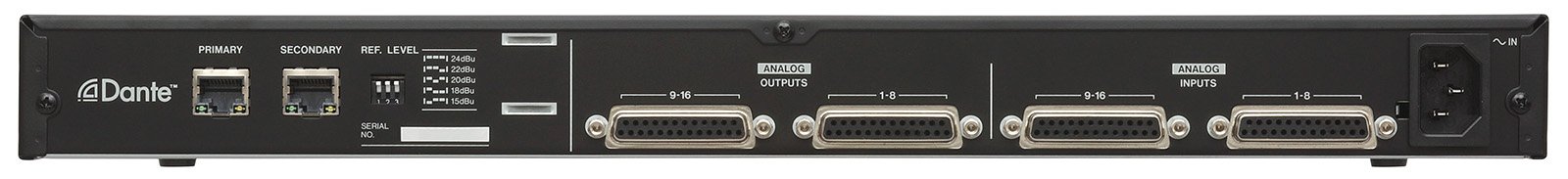

The ML-16D features 2 D-Sub inputs and 2 D-Sub outputs for seamless integration with numerous devices including microphone preamplifiers, console mixers, audio interfaces, amplifiers, and euro block connector devices, facilitating quick and easy insertion or extraction of audio from the Dante audio stream.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: ML-16D Categories: , Brand:

Description

ML-16D: Versatile Dante Focused Audio Interface

The ML-16D offers seamless integration for your audio systems, with 2 D-Sub inputs and 2 D-Sub outputs for quick and efficient connectivity to a range of devices, including microphone preamplifiers, mixers, audio interfaces, amplifiers, and euro block connectors.

This device is designed to provide a simplified solution with high-quality audio streaming capabilities, making it easy to insert or extract audio from the Dante audio network.

Key Features

  • 16 channel analog line input and output using D-Sub connectors at 48k/96kHz
  • Dual redundant Ethernet jacks for primary and secondary connections
  • Compatible with SMPTE ST 2110-30, AES67, and Ravenna
  • Flexible routing with Dante Controller
  • High audio quality up to 96kHz/24-bit
  • Signal/overload indicators for level monitoring
  • Firmware updates via Dante port
  • 1U rack mount size
  • Optional breakout boxes for additional connectivity

Specifications

Specification ML-32D ML-16D
Sampling frequency 44.1k / 48k / 88.2k / 96k Hz
Quantization bit rate 16 / 24-bit
Line Inputs – Connector D-sub 25pin female × 2
Locking screws No.4-40 UNC (inch type)
Nominal input levels +4dBu, +6dBu
(Max input level +15dBu)
Maximum input levels +24dBu, +22dBu, +20dBu, +18dBu, +15dBu
(set by REF. LEVEL switches)
Input impedance 10kΩ or higher
Line Outputs – Connector D-sub 25pin female × 2
Output impedance 200Ω or lower
Applicable load impedance 2kΩ or higher
Nominal output levels +4dBu, +6dBu
(Max output level +15dBu)
Maximum output levels +24dBu, +22dBu, +20dBu, +18dBu, +15dBu
(set by REF. LEVEL switches)
Primary/Secondary – Connector RJ-45 × 2
Transmission protocol Dante
Gigabit Ethernet standard 1000BASE-T (IEEE 802.3ab)
Cables Category 5e or faster STP cables
Power AC 100 – 240V, 50/60Hz
Power consumption 22W 14W
Dimensions (W×H×D) 19.0″ × 1.77″ × 11.96″ / 483 × 45 × 303.8 mm
Weight 7.7 lbs. / 3.5 kg 7.3 lbs. / 3.3 kg
Operating temperature range 32°F to 104°F / 0°C to 40°C
